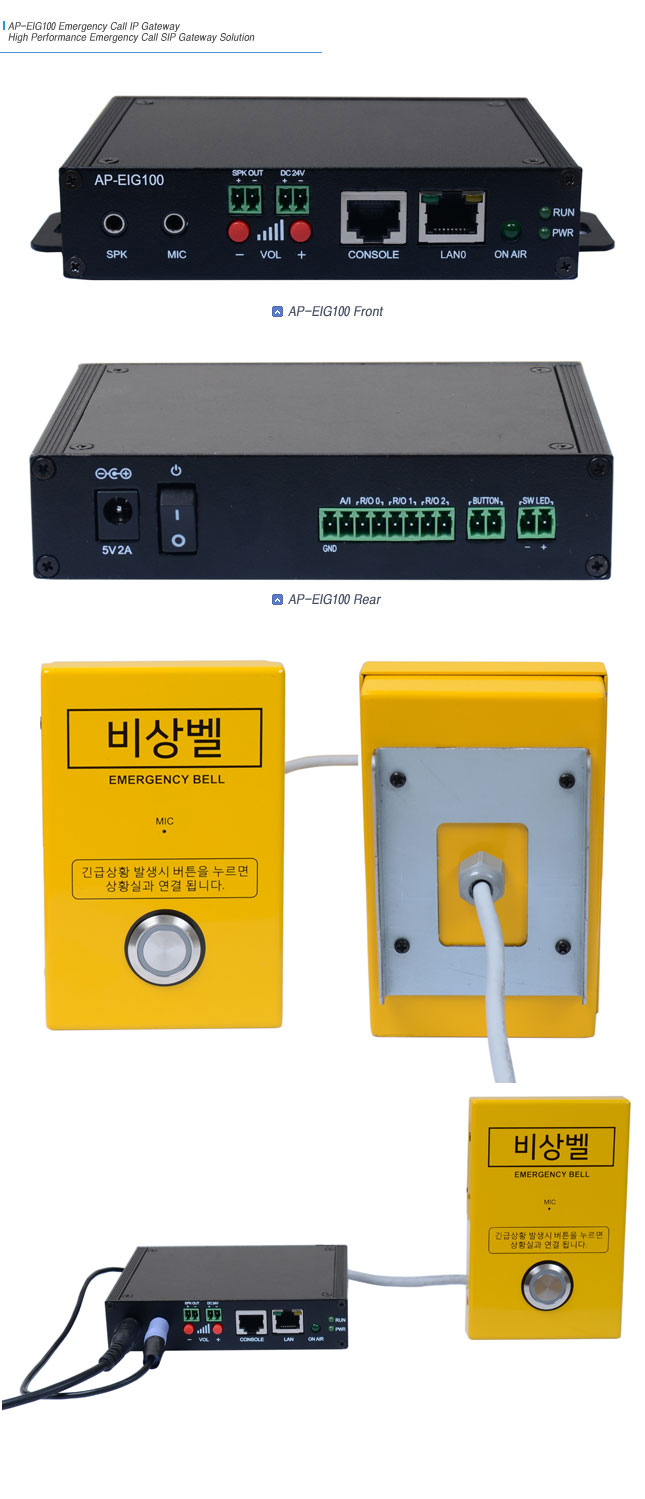

AP-EIG100 Emergency Call IP VoIP Gateway Device is a SIP signaling based emergency call voice call gateway device that enables high-quality voice communication over the Internet. It can be used outdoors and in multiple locations that require emergency call functionality. It supports various VoIP voice codecs, microphone input interface, speaker output interface, acoustic echo canceller, built-in digital amplifier, alarm and relay port, full duplex function. The emergency call button, microphone, and outdoor speaker are installed separately. AP-EIG100 is installed inside the enclosure and can support various functions such as warning light on/off control, CCTV LED backlight on/off control, and so on.

SIP based emergency call VoIP Gateway

AP-EIG100 emergency call IP voice call device is an IP emergency call phone equipped with voice processing technology, VoIP signaling technology and network technology that AddPac has accumulated in the field of VoIP and IP broadcasting. In many functions, the AP-EIG100 is definitely different. It is designed based on high-quality voice DSP and built-in acoustic echo canceller function, and supports full duplex bi-directional communication. AP-EIG100 also supports SIP VoIP signaling protocol and various voice codecs like as G711, G726, G729A, G723.1 in addition to high-quality 16KHz G.722 wideband codec. QoS technology is applied to cope with various delays and packet errors on the Internet, particularly in limited bandwidth situations, ensuring optimal sound quality. IP emergency call function can be performed in conjunction with AddPac IP-PBX solution.

Firmware Upgradable Architecture

The AP-EIG100 emergency call IP voice call gateway device is a programmable structure of high-performance RISC CPU, so it can be continuously improved, changed or added

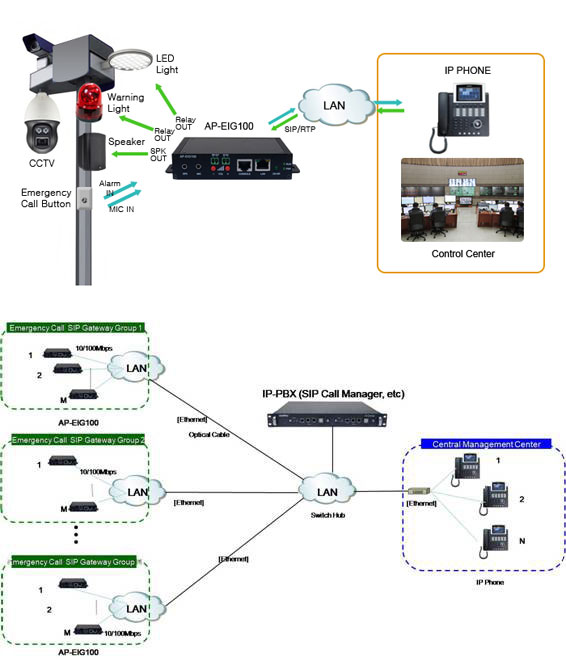

Network Diagram

Overall Features
	High-End RISC + DSP 를 사용한 비상호출 SIP 게이트웨이
	G.722(16KHz) 광대역 코덱 및 G.711, G.726 등 다양한 음성 코덱 지원
	1 포트의 오디오 입력포트지원 (외부 마이크 입력용)
	1포트의 10/100Mbps 패스트 이더넷 인터페이스(Rj45)
	외부 스피커 연결용 디지털앰프 출력 포트 (8 ohm, 40 Watt)
	1포트 RS232C 콘솔 포트 지원 (RJ45)
	외부 스피커 볼륨 조절 UP, DOWN 버튼 지원 (초기 설정시 사용)
	알람 및 3 릴레이 포트 지원 (콜 버튼, 경광등, LED 투광등 제어 등)
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	FTP 및 TFTP를 통한 원격 소프트웨어 업-그레이드 기능 지원
	망-관리자를 위한 디버깅 환경제공
	사용이 편리한 CLI 설정환경 제공
