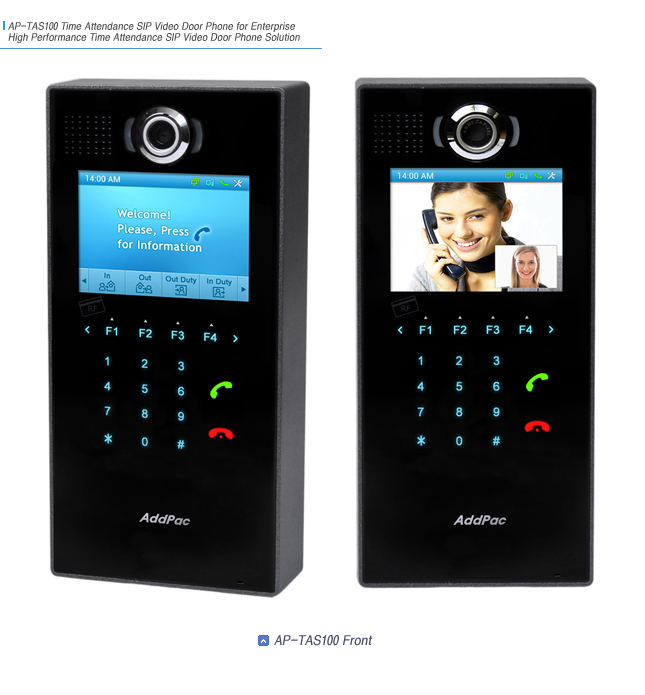

AP-TAS100 enterprise time and attendance SIP video door phone is a visitor access control unit through internet connection with built-in time & attendance function. It uses the SIP standard VoIP signal process feature, providing an excellent scalability by interworking with video phone, window based IP soft video phone and android smart video door phone appl. It also supports the latest audio/video codec at the optimum level. AP-TAS100 provides enterprise IP video visitor access control solution.
Standalone Time & Attendance Service + IP Video Door Control System
AP-TAS100 time and attendance IP video door phone is a device to open and close the door after verifying the identity of visitor. It is embedded with alarm, relay output port, and RS485 interface function to control the door remotely by interworking with automatic door. Also, it offers RF card for easier access of employees. AP-TAS100 supports both video door phone management/application service and SIP based video door phone function. Video door phone management function provides user management function, group management function, setup management function, RF card register and manages, and access log function and allow extending the application service such as attendance/absence. Login control, daily attendance rules, monthly attendance rules, business trip and vacation, report for admin are main functions for AP-TAS100 time and attendance service.
New Standard Selection of IP Video Door Phone ¡°Video Call¡±
AP-TAS100 IP video door phone is combination of VoIP signaling technology and voice processing technology, and the-state-of-the-art video processing technology. AP-TAS100 provides 64Kpbs~1Mbps level of network so that user may use anywhere with internet connection. Especially, it applies high end ¡°Error Resilience¡± technology to cope with various packet errors and ¡°Rate Control¡± to secure optimum level of resolution/frame rate in limited bandwidth environments. It also supports MPEG4 along with H.264 video codec.
Firmware Upgradeable Structure
AP-TAS100 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-TAS100 is embedded with smart web manager for easy control of video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.
AddPac VoIP products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-TAS100 will satisfy the needs of customer along with AddPac IP telephony solution.

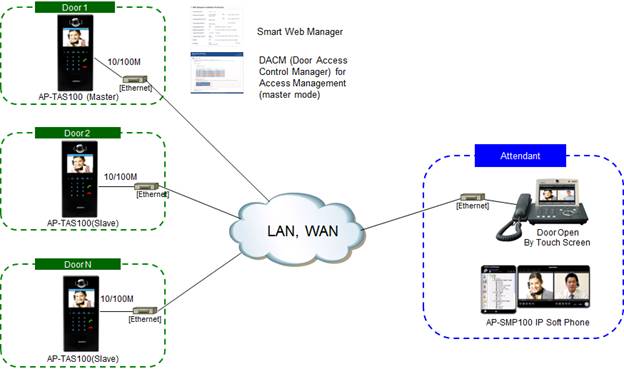

Network Diagram
Overall Features
Time and Attendance Supporting IP Video Door Phone Solution
Support various IP-PBX, video phone
Support rate control to secure the optimum level of resolution and frame
rate
Apply high end error resilience to cope with various packet errors in
network
Support 3.5inch TFT color LCD
High Performance Programmable DSP
SIP/H.323 dual stack
Flash memory 512Mbyte, SDRAM 128Mbyte
Support speaker phone
Support back light
Support access control with Fingerprint, RF card and password
Network interface: 10/100Mbps fast Ethernet interface x 1
Support RS232/RS422/RS485 interface, alarm input, relay output port
Support PoE
Video Features
Supporting codec: MPEG-4, H.264
Support rate control for high resolution and frame rate
Apply high end error resilience to cope with various packet errors
Audio and Telephone Features
3 x4 Key, Call Button
G.726, G.711,Voice Codec
SIP/H.323 Dual Stack
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
512Mbyte
SDRAM Memory
256Mbyte DDR
Network Interface Module
LAN Port
One(1) 10/100Mbps Fast Ethernet
Video Camera Interface
Built-In CMOS Camera with Back Light
High Sensitivity for low-light operation
Output support for Raw RGB, RGB, and YCrCb format
Image Size : VGA, QVGA, and any size scaling down from CIF to 40x30
Support AEC, AGC,AWB, ABF, ABLC
Saturation Level, Edge Enhancement Level, De-noise level Auto adjust
Control & Display
3.5 Inch TFT Color LCD
One-Chip Solution for amorphous TFT-LCD
Support resolution up to 240xRGBx320
Built-in 172800 bytes internal RAM
6,8,16, and 18-bit RGB Interface
Resize Function ( x ¨ö, x ¨ù)
On-Chip Power Management System
RF Card Interface
RF Card Tags
ISO14443A/B all bit rates : 106/212/424/848kbps,
MiFare Series, etc
Acoustic Echo Canceller
Full Duplex AEC
Full-duplex operation during double-talk
situations
One channel AEC, one channel LEC up to 256ms shared
Cancels echoes with up to 10dB echo return
Advanced noise reduction(up to 20dB)
Speaker
Internal Speaker
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
Audio Amplifier
Internal Audio AMP.
1-W BTL Output(5V, 0.11 % THD+N)
Uncompensated Gains of 2 to 20 (BTL Mode)
Thermal and Shot-circuit Protection
High Supply Ripple Rejection Ratio
Audio Interface
Input
Internal MIC In
Output
Internal Speaker Out
I/O Interface
I/O Port
RS232/RS422/RS485 Interface : 2-Port
Alarm Input : 2 Port
Relay Out : 2 Port
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
PoE (Power over Ethernet)
IEEE802.3af compliant
Input voltage range 36V to 57V
Short-circuit Protection
