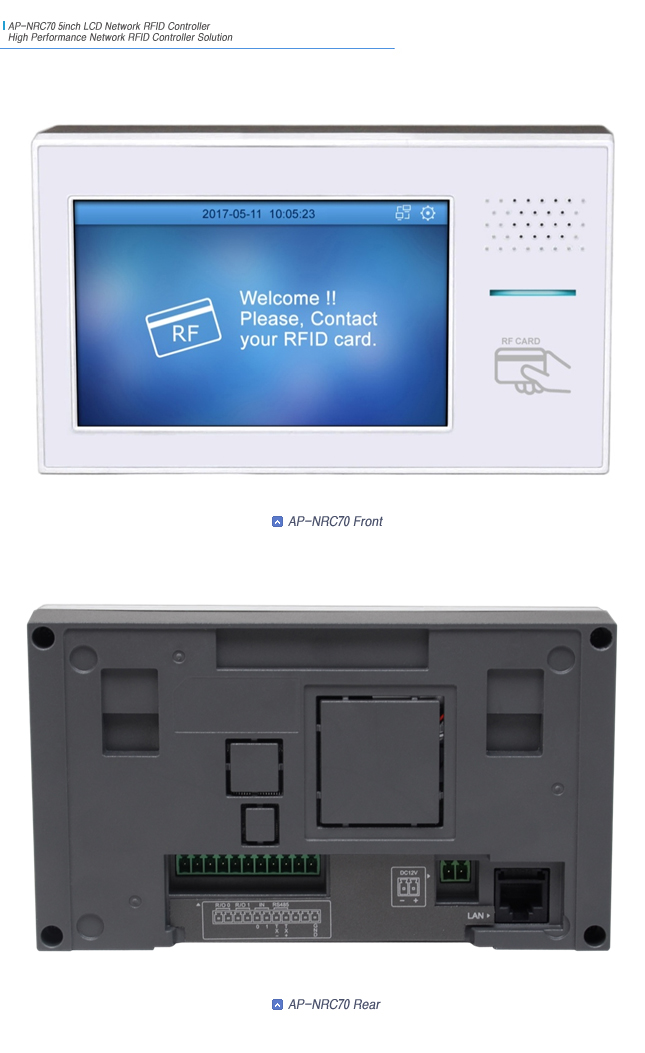

AP-NRC70 5 inch LCD network RFID access controller is an employee access control unit based on RFID card through network. It supports both LAN interface for standalone mode and RS232/RS485 interface for AddPac video door phone clone mode, providing an excellent scalability by interworking with AddPac Access Control Server System(IP-PBX + Time Attendance). AP-NRC70 provides RFID card service for easier access of employees.
Standalone Mode and Clone Mode
AP-NRC70 network RF access controller is a device to open and close the entrance gate after verifying the identity of employee. It is embedded with alarm, relay output port, and RS485 interface function to control the gate remotely by interworking with automatic gate. AP-NRC70 supports device management service. The device management function provides user management function, group management function, setup management function, RFID card register and management, and access log function.
To extend the application service such as time attendance service, AP-NRC70 should interworks with AddPac access control server system like as AP-ACS1000. AddPac access control server system supports login control, daily attendance rules, monthly attendance rules, reporting service for admin, etc.
AP-NRC70 supports both LAN interface for standalone mode and RS232/RS485 interface for AddPac video door phone clone mode. Single IP address is enough when AP-NRC70 is operated as a clone mode of AddPac video door phone like as AP-VAC50, etc.
Firmware Upgradeable Structure
AP-NRC70 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-NRC70 RFID access controller is embedded with Smart Web Manager for easy control of video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.
AddPac door access control products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-NRC70 will satisfy the needs of customer along with AddPac door access control solution.

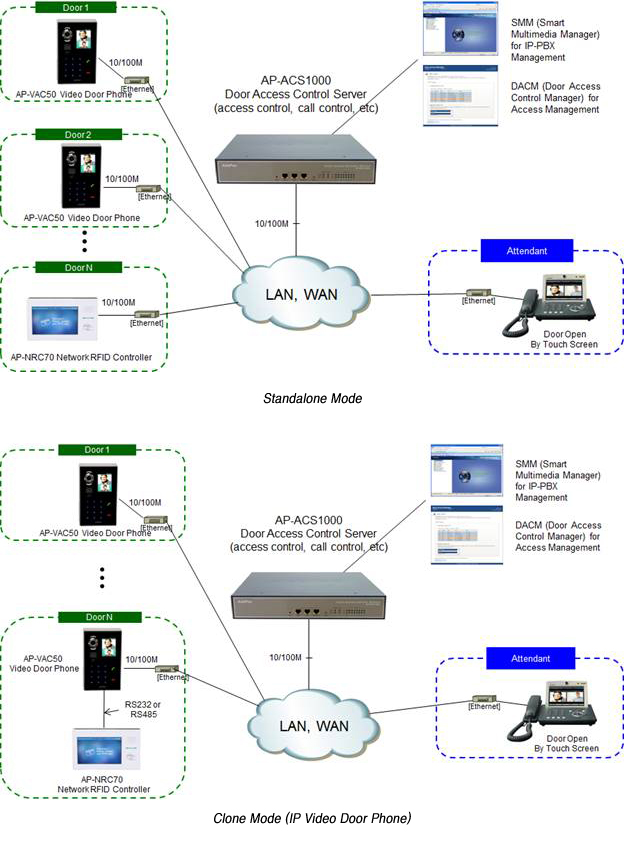

Network Diagram
Overall Features
High performance RFID controller solution
Network (LAN) based RF Controller Solution :
Standalone Mode
RS232/RS485 Interface Support for AddPac IP
Video Door Phone Interworking : Clone Mode
Interworking with AddPac ACS(Access Control
Server) for RFID Registration
TFT Color LCD : 5 inch LCD, touch screen, 800x480 display resolution
Network interface: 10/100Mbps fast Ethernet
interface x 1
Support RS232/RS485 interface, alarm
input, relay output port
Support Power over Ethernet (PoE) : Option
Microprocessor
High Performance RISC H/W Architecture
Memory
Flash Memory
4Mbyte
SDRAM Memory
32Mbyte DDR
Network Interface
LAN Port
One(1) 10/100Mbps Fast Ethernet
Control & Display
5 Inch TFT Color LCD
One-Chip Solution for TFT-LCD
Hardware On-Screen Display (OSD)
Support resolution up to 240xRGBx320
Up to 24-bit RGB888 Digital Interface
Resize Function ( x 1/16, x8)
BT.60/BT.66 Digital YCbCr 4:2:2(8-/16-bit) Interface
RFID Card Sensor
Protocol Supported
ISO14443A/B all bit rates
> 106,212,424 and 848 kbps
Compatible to MiFare Classic
ISO15693 all modes
> 1.65/6.6 & 26.5 kbps
> Uplink 1 & 2 sub-carrier
Receiver
Rx Sensitivity down to 1mVrms
Rx Automatic Gain Control
Accept external baseband signal from
external circuitry for frame level processing
Integrated signal strength indicator (SSI)
On-Chip Framing handler for supported standard
Transmitter
Typical proximity operating distance up to
100mm.
Software configurable modulation index
Maximum driving current up to 200 mA/PIN @ 5V
Accept external baseband signal for RF modulation
Wide Transmitter driver supply range from 2.7~7.0V
Speaker
Internal Speaker
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
I/O Interface
I/O Port
RS232/RS485 Interface
Alarm Input : 2 Port
Relay Out : 2 Port
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
PoE (Power over Ethernet)
IEEE802.3af compliant
Input voltage range 36V to 57V
Short-circuit Protection
