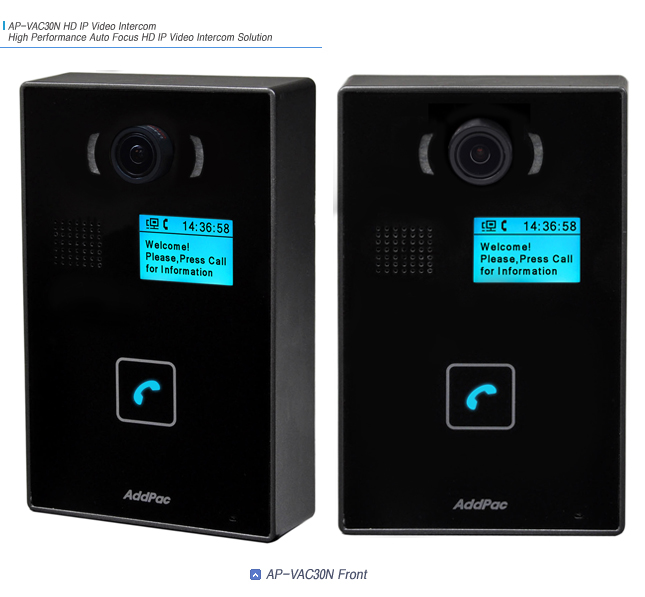

AP-VAC30N enterprise HD IP video intercom controls visitor access through video screen using internet. It has an excellent scalability using SIP/H.323 standard VoIP signal process featureby interworking with AddPac IP-PBX, IP video phone, and soft phone. AP-VAC30N supports auto-focus camera function with high definition camera sensor for various applications. This auto-focus high definition camera sensor can enable to read the text information like as receipt beside general face information in commercial parking lot application. It also supports the state of the art audio/video codec optimally. It provides enterprise visitor access control solution along with AP-ACS1000 access control server.AddPac AP-ACS1000 access control server has SIP call manager function and door access control function like as RF card control, fingerprint control, and time & attendance service, etc.
High-End IP Video Door Phone ¡°HD Video + High Quality Voice withFull Duplex Acoustic Echo Canceller¡±
AP-VAC30N HD IP video intercom is combination of signaling/voice processing technology and video processing technology. AP-VAC30Nprovides 256Kbps~4Mbps network with internet connection. Especially, it applies high end ¡°Error Resilience¡± technology to cope with various packet errors and ¡°rate control¡± to secure optimum level of resolution/frame rate in limited bandwidth environments. It also supports high performance H.264 video codec for HD video quality.. It also supports G.722 wide band codec along with G.711, G.726 voice band codec. And, for enhanced voice quality, AP-VAC30N supports full duplex voice communication scheme and acoustic echo canceller.
High Definition Camera Sensor with Auto-Focus Function
AP-VAC30NHD IP intercomsupports auto-focus camera function with high definition camera sensor for various applications. This auto-focus high definition camera sensor can enable to read the text information like as receipt beside general face information in commercial parking lot application. For example, this AP-VAC30N HD IP video intercom is applicable in large scale department parking lot, large scale mart parking lot, etc for car exit control. Also, this device can capture of a receipt still image and send still image like as JPEG image to backup data center.
Firmware Upgradeable Structure
AP-VAC30NRISC CPU and high performance video DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-VAC30NHD IP video intercom is embedded with Smart Web Manager for video door phone management. User may setup/manage IP video door phone through PC, smart phone, and tablet device.
AddPac VoIP products are well recognized in terms of performance and stability in the world. With our accumulated experience in enterprise market and communication market, AP-VAC30N will satisfy the needs of customer along with AddPac IP telephony solution.

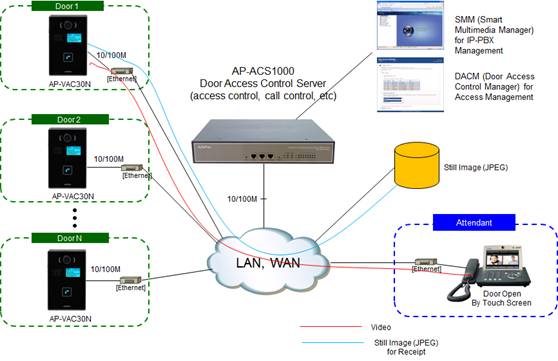

Network Diagram
Overall Features
Support HD 720P(1280x720) 30 frames per
second
AutoFocus Digital Wide Dynamic Range
MegaPixel Sony CMOS Camera Sensor
Support various IP-PBX, video phone
Support rate control to secure the optimum
level of resolution and frame rate in limited bandwidth
Blue LCD Display, 128 x 64 Resolution
High performance programmable DSP
H.323, SIP dual stack
Flash Memory 512MByte, SDRAM 128MByte
Support speaker phone Function
Support back light
Network interface: 10/100Mbps fast Ethernet
interface
Support alarm input, relay output port
Support PoE feature (Option)
Video Features
Video Codec : H.264, MPEG4, etc
Support rate control to secure the optimum
level of resolution and frame rate in limited bandwidth
Apply high end error resilience to cope with
various packet errors
Audio and Telephone Features
Call Button (Touch Sensor Type)
G.726, G.711, Voice Codec
SIP, H.323 Dual Stack
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
512Mbyte
Main Memory
128Mbyte DDR
Network Interface Module
LAN Port
One(1) 10/100Mbps Fast Ethernet
Video Camera Interface
Built-In HD Camera
1/2.9¡±
2.1 MegaPixel Sony CMOS Sensor,
Auto Focus Lens,
True Day & Night, D-WDR : Digital Wide Dynamic Range
