AP-VAC300 enterprise SIP video door phone is a visitor access control unit through video screen using internet. It uses the SIP standard video signal process feature, providing an excellent scalability by interworking with IP video phone, and soft video phone. It also supports the latest audio/voice codec at the optimum level. AP-VAC300 provides enterprise SIP video based visitor access control solution. For various application and flexible service, this product use 7inch TFT-LCD with touch screen feature.

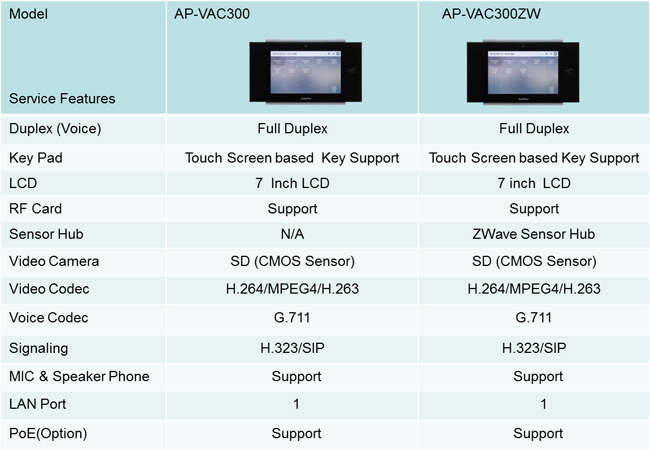

AP-VAC300 and AP-VAC300ZW Comparison Table

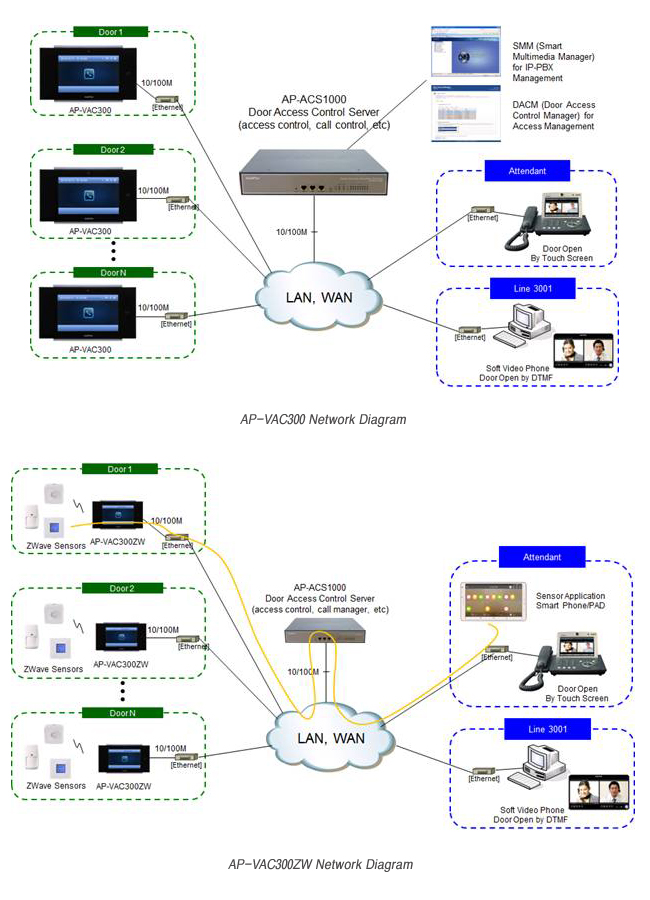

Standalone SIP based Video Door Phone Service + Door Control System
AP- VAC300 SIP video door phone is a device to open and close the door after verifying the identity of visitor. It is embedded with alarm, relay output port, and RS485 interface function to control the door remotely by interworking with automatic door. Also, it offers RF card for easier access of employees. AP-VAC300 supports both SIP video door phone management service and SIP based video door phone service. SIP based video door phone management function provides user management function, group management function, setup management function, RF card register and manages, and access log function.
New Standard Selection of SIP Video Door Phone “ Full Duplex + Acoustic Echo Canceller”
AP-VAC300 SIP video door phone is combination of SIP VoIP signaling technology/video processing technology. AP-VAC300 provides 64Kpbs level of network so that user may use anywhere with internet connection. Especially, it applies high end “Error Resilience” technology to cope with various packet errors to secure optimum level of voice quality in limited bandwidth environments. It also supports G.722 wide band codec along with G.711, G.726 voice band codec. And, for enhanced voice quality, AP-VAC300 supports full duplex voice communication scheme and acoustic echo canceller.
AP-VAC300 is a new IP video door phone for enterprise, factory, etc where Internet voice communications are combined with Internet video monitoring. This product provides advanced features and services such as video codecs (e.g. H.263, MPEG-4, and H.264), QoS, and public IP sharing as well as multiple VoIP signaling protocols such as SIP and H.323. Also, this product supports USB based wifi LAN interface besides one(1) fast ethernet port. Using this dual LAN interface, AP-VAC300 can support wire network environment as well as wireless network environment.
Z-Wave Sensor Interface Support : (Opiton : AP-VAC300ZW Model)
AP-VAC300ZW IP video door phone supports the Z-Wave Sensor Interface for various Z-Wave based sensor device direct supporting like as motion sensor, light switch sensor, door open/close sensor, etc. This wireless Z-Wave sensor interface feature besides legacy wired based alarm signal will very helpful for various applications at door side.
And the Z-Wave Interface of AP-VAC300 is compatible with Z-Wave base smart sensors from various manufactures, AP-VAC300ZW can easily add new smart sensor devices in your smart sensor network like as at various enterprise environment application.
Firmware Upgradeable Structure
AP-VAC300 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-VAC300 is embedded with Smart Web Manager for easy control of SIP video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.
AddPac VoIP and Multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-VAC300 will satisfy the needs of customer along with AddPac IP video door access solution.

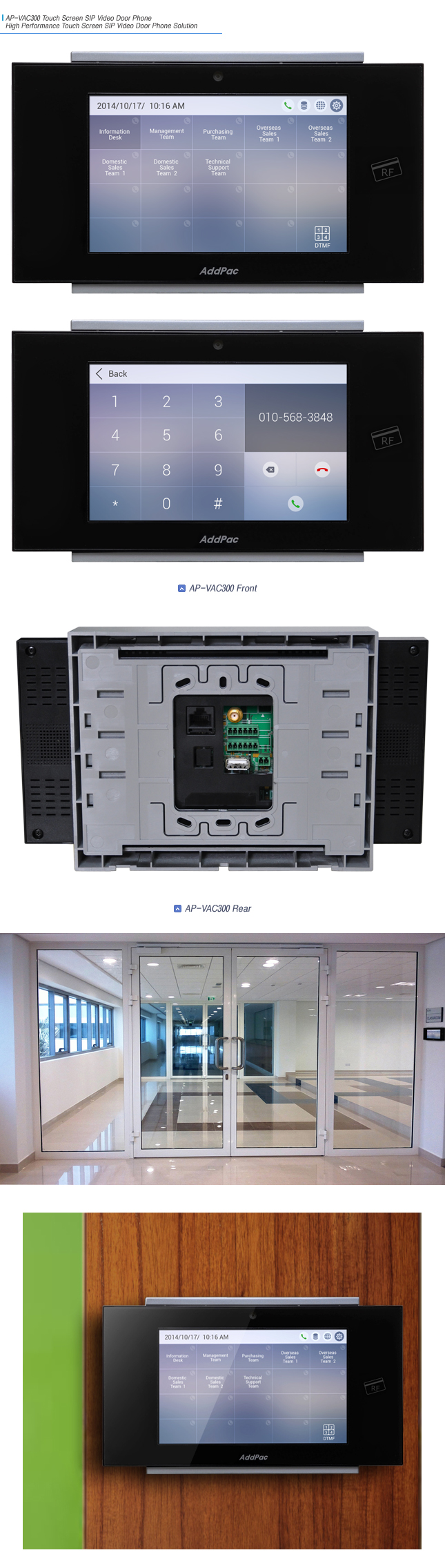

Touch Screen SIP Video Door Phone Solution
Support various IP-PBX, SIP video phone
Support QoS control to secure the optimum level
of voice quality
Apply high end error resilience to cope with
various packet errors in network
Support 7 inch TFT color LCD with touch screen
High Performance Programmable DSP
SIP/H.323 dual stack
Flash memory 256Mbyte, SDRAM 128Mbyte
Support speaker phone
Support Z-Wave Sensor Interface (Model :
Support access control with RF card
Network interface: 10/100Mbps fast Ethernet
interface x 1, USB Interface for External WiFi USB Module x 1
Support RS23/RS485 interface, alarm input, relay
Support PoE (Option)
Audio and Video Features
H.264, MPEG4, H.263 Video Codec
G.7.22, G.711, G.726, Voice Codec
SIP/H.323 Dual Stack
High Performance RISC+DSP H/W Architecture
256 Mbyte NAND Flash Memory
Network Interface Module
One(1) 10/100Mbps Fast Ethernet
USB Interface for External Wifi USB Module
Control & Display
7 Inch TFT Color LCD
One-Chip Solution for TFT-LCD
Hardware On-Screen Display (OSD)
Support resolution up to 480xRGBx800
Up to 24-bit RGB888 Digital Interface
Resize Function ( x 1/16, x8)
BT.60/BT.66 Digital YCbCr 4:2:2(8-/16-bit) Interface
RF Card Interface
RF Card Tags
ISO14443A/B all bit rates : 106/212/424/848kbps,
MiFare Series, etc
Acoustic Echo Canceller
Full Duplex AEC
Full-duplex operation during double-talk
One channel AEC, one channel LEC up to 256ms shared
Cancels echoes with up to 10dB echo return
Advanced noise reduction(up to 20dB)
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
Internal Audio AMP.
1-W BTL Output(5V, 0.11 % THD+N)
Uncompensated Gains of 2 to 20 (BTL Mode)
Thermal and Shot-circuit Protection
High Supply Ripple Rejection Ratio
Internal MIC In
Internal Speaker Out
RS232/RS422/RS485 Interface : 2-Port
2 Alarm, 2 Relay Out Interface
Power & Operation Environments
External Power VAC 110~220 VAC, 50/60Hz, 15Watt,
PoE (Power over Ethernet) : Option
