AP-VAC150 enterprise Fingerprint SIP video door phone is a visitor access control unit through video screen using internet. It uses the SIP standard video signal process feature, providing an excellent scalability by interworking with IP video phone, and soft video phone. It also supports the latest audio/voice codec at the optimum level. AP-VAC150 provides enterprise SIP video based visitor access control solution. For various application and flexible service, this product use 5inch TFT-LCD with touch screen feature.
Standalone SIP based Video Door Phone Service + Door Control System
AP- VAC150 SIP video door phone is a device to open and close the door after verifying the identity of visitor. It is embedded with alarm, relay output port, and RS485 interface function to control the door remotely by interworking with automatic door. Also, it offers RF card and Fingerprint Recognition Interface for easier access of employees. AP-VAC150 supports both SIP video door phone management service and SIP based video door phone service. SIP based video door phone management function provides user management function, group management function, setup management function, RF card register and manages, Fingerprint register and manages, and access log function.
New Standard Selection of SIP Video Door Phone ¡° Full Duplex + Acoustic Echo Canceller¡±
AP-VAC150 SIP video door phone is combination of SIP VoIP signaling technology/video processing technology. AP-VAC80 provides 64Kpbs level of network so that user may use anywhere with internet connection. Especially, it applies high end ¡°Error Resilience¡± technology to cope with various packet errors to secure optimum level of voice quality in limited bandwidth environments. It also supports G.722 wide band codec along with G.711, G.726 voice band codec. And, for enhanced voice quality, AP-VAC150 supports full duplex voice communication scheme and acoustic echo canceller.
Fingerprint Recognition & RF Card Access Control
AP-VAC150 touch screen SIP video door phone supports visitor access control service feature through door side video monitoring using SIP VoIP signaling procedure. Also, this device supports fingerprint recognition, RF card access for the convenience of employees.
Firmware Upgradeable Structure
AP-VAC150 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-VAC150 is embedded with Smart Web Manager for easy control of SIP video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.
AddPac VoIP and Multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-VAC150 will satisfy the needs of customer along with AddPac video door access solution.

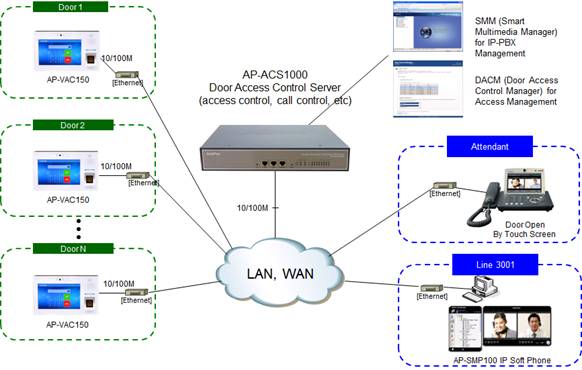

Network Diagram
Overall Features
Touch Screen SIP Video Door Phone Solution
Support various IP-PBX, SIP video phone
Support QoS control to secure the optimum level of voice quality
Apply high end error resilience to cope with various packet errors in
network
Support 5 inch TFT color LCD with touch screen feature
High Performance Programmable DSP
SIP/H.323 dual stack
Flash memory 512Mbyte, SDRAM 128Mbyte
Support speaker phone
Support back light
Support access control with RF card and
Fingerprint Recognition Module
Network interface: 10/100Mbps fast Ethernet interface x 1
Support RS232/RS422/RS485 interface, alarm input, relay output port
Support PoE
Audio and Telephone Features
Voice Call Button
G.7.22, G.711, G.726, Voice Codec
SIP/H.323 Dual Stack
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
512Mbyte
Main Memory
128Mbyte DDR
Network Interface Module
LAN Port
One(1) 10/100Mbps Fast Ethernet
Fingerprint Recognition
Capacitive Fingerprint Recognition Sensor
Sensor Type : Capacitive
Resolution(dpi) : 508
Sensing Area(mm) : 12.8 x18.0
Image Size(pixel) : 256 x 360
CPU : 400MHz DSP
Flash Memory : 4MB
ERR : < 0.1%
Enrollment Time : 800msec
1:1 Verification Time : 800msec
1:1000 Identification Time : 970msec
Template Size : 256~384bytes (configurable, 384bytes default)
Template Capacity : 9,000
Encryption : 256bit AES
Control & Display
5 Inch TFT Color LCD
One-Chip Solution for TFT-LCD
Hardware On-Screen Display (OSD)
Support resolution up to 240xRGBx320
Up to 24-bit RGB888 Digital Interface
Resize Function ( x 1/16, x8)
BT.60/BT.66 Digital YCbCr 4:2:2(8-/16-bit) Interface
RF Card Interface
RF Card Tags
ISO14443A/B all bit rates : 106/212/424/848kbps,
MiFare Series, etc
Acoustic Echo Canceller
Full Duplex AEC
Full-duplex operation during double-talk
situations
One channel AEC, one channel LEC up to 256ms shared
Cancels echoes with up to 10dB echo return
Advanced noise reduction(up to 20dB)
Speaker
Internal Speaker
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
Audio Amplifier
Internal Audio AMP.
1-W BTL Output(5V, 0.11 % THD+N)
Uncompensated Gains of 2 to 20 (BTL Mode)
Thermal and Shot-circuit Protection
High Supply Ripple Rejection Ratio
Audio Interface
Input
Internal MIC In
Output
Internal Speaker Out
I/O Interface
I/O Port
RS232/RS422/RS485 Interface : 2-Port
Alarm Input : 2 Port
Relay Out : 2 Port
Power & Operation Environments
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
PoE (Power over Ethernet)
IEEE802.3af compliant
Input voltage range 36V to 57V
Short-circuit Protection
