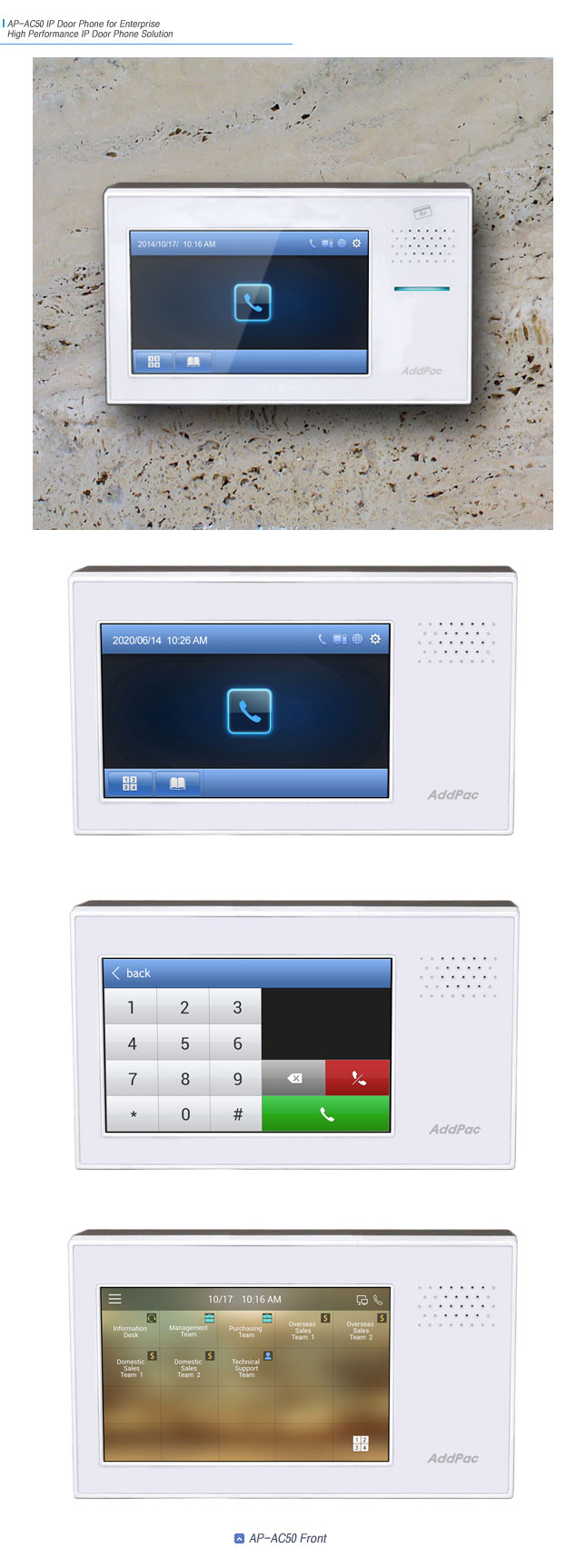

AP-AC50 enterprise IP door phone controls visitor access through voice using internet. It has an excellent scalability using SIP standard VoIP signal process feature by interworking with AddPac IP-PBX, IP phone, and soft phone. It also supports the state of the art audio codec optimally. It provides enterprise visitor access control solution along with AP-ACS1000 door access control server. For various application and flexible service, this product use 5 inch TFT-LCD with touch screen feature.
Standalone SIP based IP Voice Door Phone Service + Door Control System
AP-AC50 IP voice door phone is a device to open and close the door after verifying the identity of visitor. It is embedded with alarm, relay output port, and RS485 interface function to control the door remotely by interworking with automatic door. Also, it offers RF card for easier access of employees. AP-AC50 supports both SIP door phone management service and SIP based door phone service. SIP based door phone management function provides user management function, group management function, setup management function, RF card register and manages, and access log function.
Door Phone New Paradigm ¡°Voice over IP¡±
AP-AC50 IP door phone is combination of VoIP signaling and voice processing technology. This product uses the state-of-art technology voice compressed algorithm and unique QoS algorithm of AddPac to maintain the maximum voice quality under fast internet line and slow internet line as well. This product is designed based on high performance RISC CPU + DSP structure.
Built-In RF Card
AP-AC50 IP door phone supports visitor access feature through interactive voice conversation. It supports RF card access and password access feature for the convenience of employees.
Firmware Upgradeable Structure
AP-AC50 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-AC50 IP door phone is embedded with Smart Web Manager for voice door phone management. User may setup/manage IP door phone through PC, smart phone, and tablet device.
AddPac VoIP/Video/IP-PBX products are well known in terms of performance and stability in the world. With our accumulated experience in enterprise market and communication market, AP-AC50 will satisfy the needs of customer along with AddPac IP telephony solution.

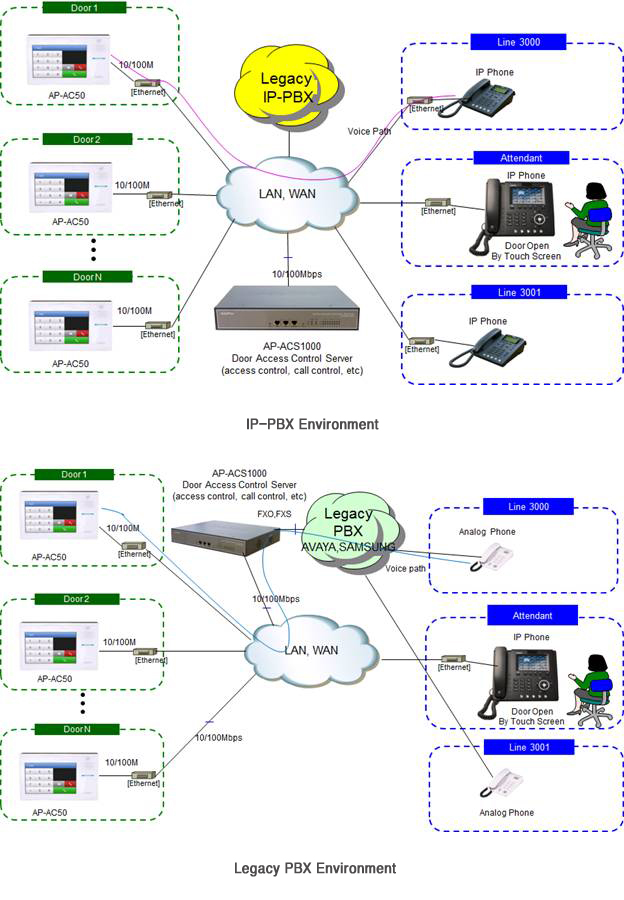

Network Diagram
Overall Features
Various IP-PBX, IP Phone Support
FXO, FXS Interface Support : Option
Advanced QoS Support for High Quality Voice
Touch Screen 5 inch LCD
High Performance Programmable DSP
H.323, SIP Dual Stack
Flash Memory 512MByte, SDRAM 128MByte
Speaker Phone Function Support
Door Open Control Function Support via RF
Card and Password
Network Interface : 10/100Mbps Fast Ethernet
Port ¡¿1
RS232/RS422/RS485 Interface Support : Alarm
Input, Relay Output Control Port Support
PoE Function Support : Option
Audio and Telephone Features
3x4 key pad
G.726, G.711,Voice Codec
SIP, H.323 Dual Stack
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
512Mbyte
SDRAM Memory
128Mbyte DDR
Network Interface Module
LAN Port
One(1) 10/100Mbps Fast Ethernet
Control & Display
5 Inch TFT Color LCD
One-Chip Solution for TFT-LCD
Hardware On-Screen Display (OSD)
Support resolution up to 240xRGBx320
Up to 24-bit RGB888 Digital Interface
Resize Function ( x 1/16, x8)
BT.60/BT.66 Digital YCbCr 4:2:2(8-/16-bit) Interface
RF Card Interface
RF Card Tags
ISO14443A/B all bit rates : 106/212/424/848kbps,
MiFare Series, etc
Acoustic Echo Canceller
Full Duplex AEC
Full-duplex operation during double-talk
situations
One channel AEC, one channel LEC up to 256ms shared
Cancels echoes with up to 10dB echo return
Advanced noise reduction(up to 20dB)
