AP-VAC180 IP Video Door Phone for Smart Transportation
alt='AP-VAC180 IP Video Door Phone for Smart Transportation | AddPac'>
AP-VAC180 enterprise SIP video door phone supports RF based smart transportation service besides a visitor access control service through video screen using internet. It uses the SIP standard video signal process feature, providing an excellent scalability by interworking with IP video phone, and soft video phone. It also supports the latest audio/voice codec at the optimum level. AP-VAC180 provides enterprise SIP video based visitor access control solution. For outdoor smart transportation application like as car parking lot, AP-VAC180 supports RF interface using external UHF antenna. RF tag recognition distance range for smart transportation in car parking lot depends on external UHF antenna and RF detection module performance.

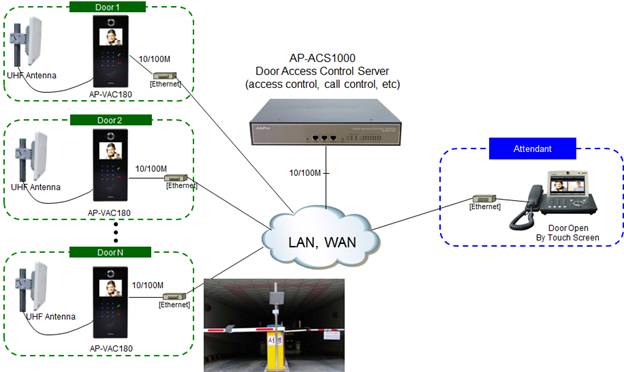

Standalone SIP Video Door Phone Service + Smart Transportation Service

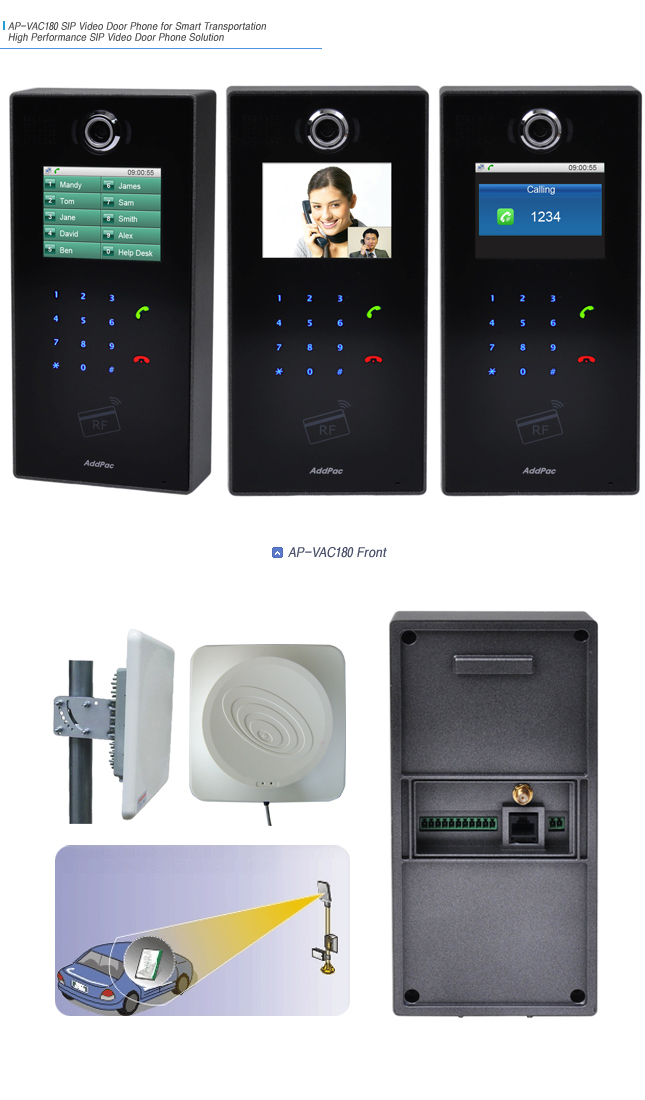

AP- VAC180 SIP video door phone is a device to open and close the door after verifying the identity of visitor. It is embedded with alarm, relay output port, and RS485 interface function to control the door remotely by interworking with automatic door. Also, it offers RF card for easier access of employees. In addition to RF card, AP-VAC180 supports RF based smart transportation card for car easy access. For RF based smart transportation application, RF tag recognition distance range is very important. It is depend on external UHF antenna performance besides internal RF module. Normally, RF tag for smart transportation is attached on glass on driver front side.
AP-VAC180 supports SIP video door phone management service. SIP based video door phone management function provides user management function, group management function, setup management function, RF card register and manages, and access log function.
New Standard Selection of SIP Video Door Phone “Full Duplex + Acoustic Echo Canceller”
AP-VAC180 SIP video door phone is combination of SIP VoIP signaling technology and audio/video signal processing technology. AP-VAC180 provides 64Kpbs level of network so that user may use anywhere with internet connection. Especially, it applies high end “Error Resilience” technology to cope with various packet errors to secure optimum level of voice quality in limited bandwidth environments. It also supports G.722 wide band codec along with G.711, G.726 voice band codec. And, for enhanced voice quality, AP-VAC180 supports full duplex voice communication scheme and acoustic echo canceller.
Firmware Upgradeable Structure
AP-VAC180 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-VAC180 is embedded with Smart Web Manager for easy control of SIP video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.
AddPac VoIP and Multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-VAC180 will satisfy the needs of customer along with AddPac video door access solution.
Overall Features
SIP Video Door Phone Solution
Support various IP-PBX, SIP video phone
Support QoS control to secure the optimum
level of voice quality
Apply high end error resilience to cope with
various packet errors in network
Support 3.5 inch TFT color LCD
High Performance Programmable DSP
SIP/H.323 dual stack
Flash memory 512Mbyte, SDRAM 128Mbyte
Support speaker phone
Support back light
Support access control with RF card
Network interface: 10/100Mbps fast Ethernet
interface x 1
Support RS232/RS422/RS485 interface, alarm
input, relay output port
Support PoE
Audio and Telephone Features
Voice Call Button
G.7.22, G.711, G.726, Voice Codec
SIP/H.323 Dual Stack
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
512Mbyte
Main Memory
128Mbyte DDR
Network Interface Module
LAN Port
One(1) 10/100Mbps Fast Ethernet
Control & Display
3.5 Inch TFT Color LCD
One-Chip Solution for amorphous TFT-LCD
Support resolution up to 240xRGBx320
Built-in 172800 bytes internal RAM
6,8,16, and 18-bit RGB Interface
Resize Function ( x ½, x ¼)
On-Chip Power Management System
RF Card Interface
RF Card Tags
ISO14443A/B all bit rates : 106/212/424/848kbps,
MiFare Series, etc
Smart Transportation RF Interface
Protocol
ISO18000-6C, EPC class1 Gen 2
RF Specification
Frequency Range 860~960 MHz
Modulation System PR-ASK
Kind of antenna Circular Polarization Antenna
Air Protocol ISO18000-6C, EPC Global Class1 GEN
Type FHSS
Read Range <5m (dependent on reader placement and Tag type)
Channel Number 6 Channel
Acoustic Echo Canceller
Full Duplex AEC
Full-duplex operation during double-talk
situations
One channel AEC, one channel LEC up to 256ms shared
Cancels echoes with up to 10dB echo return
Advanced noise reduction(up to 20dB)
Speaker
Internal Speaker
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
Audio Amplifier
Internal Audio AMP.
1-W BTL Output(5V, 0.11 % THD+N)
Uncompensated Gains of 2 to 20 (BTL Mode)
Thermal and Shot-circuit Protection
High Supply Ripple Rejection Ratio
Audio Interface
Input
Internal MIC In
Output
Internal Speaker Out
I/O Interface
I/O Port
RS232/RS422/RS485 Interface : 2-Port
Alarm Input : 2 Port
Relay Out : 2 Port
Power & Operation Environments
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 12V 1A
PoE (Power over Ethernet)
IEEE802.3af compliant
Input voltage range 36V to 57V
Short-circuit Protection
