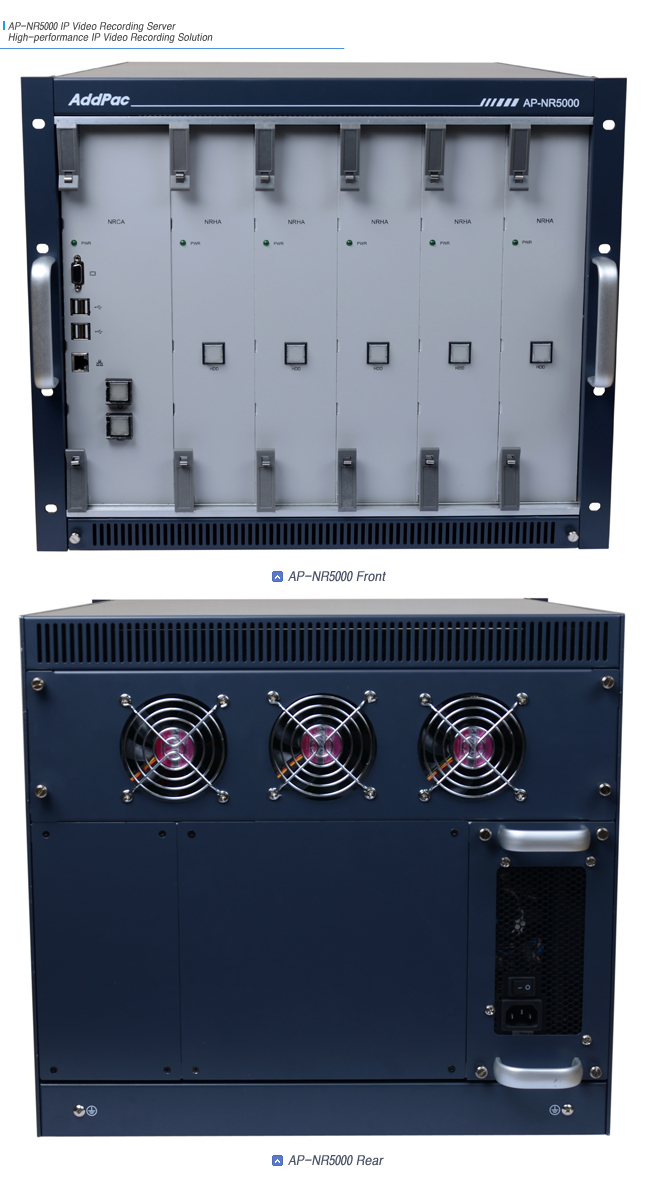

AP-NR5000 IP video call recording server is used along with AddPac IP video terminals (IP video phone, IP video door phone, IP emergency call video terminals,etc) to support high performance network based digital video recording and processing function. AP-NR5000 is an IP video call recording sever in terms of hardware architecture, and is designed to provide advanced services. AP-NR5000 supports a high reliability CPU interface and five(5) 3.5 inch HDD modules. The front panel of this product has LEDs that allow you to check the status of HDD, LAN interfaces, and CPU board. The CPU board of AP-NR5000 supports one(1) 10/100/1000 Mbps gigabit ethernet ports, USB ports, and RGB video port.The redundant power supply is modular type and can be installed or uninstalled to ensure safety. The device is designed to support AC input (110~220V). .
A demand of video call recording solution has been increasing in internet network. A next generation video call recording solution must be able to support video call recording beside legacy voice call recording in VoIP based internet network.
AddPac IP video call recording solution not only provides the video call recording solution in one access point but it also provides total video call recording service architecture in IP integrated network along with various AddPac IP based VoIP devices such SIP video door phone, SIP video phone, and IP-PBX. AP-NR5000 IP video call recording server is one of them.
High Performance Network Voice Recording Server
AddPac AP-NR5000 IP video call recording server is Linux based OS/Hardware to support network based voice recording server service. It maximizes the performance and efficiency by using gigabit ethernet high performance processor with stabilized Linux OS. AddPac video call recording server performs following features; record/manage MPEG4 or H.264 based compressed video signal from various video end-point (IP video phone, etc) as well as transmit to media player for replay. Hard disk supports SATA type and install up to 5 hard disk modules. It could support up to 20Tera when using 4Tera byte hard disk. It not only supports four(4) USB interface for back-up function but it also supports network sharing function.
Firmware Upgradeable Hardware Architecture
AP-NR5000 high performance processor module is all programmable structure for constant upgrade, change, and adds new features. User may cope with future technological changes more flexibly without much effort when setting an auto upgrade option or directly download from the AddPac webpage.
External Transcoder Support for Low-bit Rate Voice Codec
AddPac IP video call recording server uses the latest CPU to provide real time high performance video call recording solution based on the superb quality and stability. Captured video data from End-Point (IP video door phone, IP video phone, IP video codec, video MCU etc) will be transmitted to video call recording server through IP network. It also supports AP-VTC1000 external voice transcoder as an option in order to provide Low Bit Rate VoIP codec such as G.729, and G.723.1.
Network Diagram
Overall Features
High Performance Hardware and Linux OS System
Various Video Codec Support (H.264, etc)
Support 1 Giga bit Ethernet Interface
Support up to 5 SATA Type Hard Disk Module
Support External Voice Transcoder for Multi Voice Codec (G.711, G.726, G.729,
G.723.1, etc.) support
Four(4) USB 2.0 Interface Support
Smart Recording Software (Server/Client)
File Backup Manager Software
CPU
High Performance Host Processor
Memory
DDR Memory
128/256MB
HDD Interface
Hard Disk Type
3.5 Inch SATA Type
Hard Disk
Five(5) Module Slot
LAN Interface
LAN0 Port
One(1) 10/100/1000Mbps Gigabit Ethernet
A/V Interface
Video Output
RGB
USB Interface
USB Port
USB 2.0 Interface, 4 Port at Front Side, etc
Power Requirement
Power VAC 100~240V, 50/60Hz, 350Watt
Operating Temperature
0¡ÆC to + 45¡ÆC (32¡Æ to 112¡ÆF)
Storage Temperature
-40¡ÆC to + 85¡ÆC (-40¡Æ to 176¡ÆF)
Relative Humidity
5% to 95% (Non-condensing)
Dimensions(H x W x D)
400mm x 440mm x 564mm
Weight(kg)
34Kg
Smart Recording S/W Specification
¡¡
Call History Management
search/modify/delete/save
Live Call Monitoring
Live play
Local Backup and Local Play
File Backup Manager Support : PC HDD, etc
Event Management
Event history search
User Management
registration/modify/delete/search
Server Status(CPU/Memory/HDD) & Event Monitoring
Event monitoring
Recording Source Management
Recording Option Query and Configuration : VoIP Gateway, IP
Phone, etc
Network Software Specification
¡¡
Basic Routing
Static Routing (IPv4)
Static / DHCP / PPPoE
VRRP(Virtual Redundancy Routing Protocol)
Network Management
SNMPv2/SNMPv3 Support
Standard & Enterprise SNMP MIB Support
Web Based Management using HTTP/HTTPS
Console / Telnet / Rlogin / SSH Interface
Security Functions
Standard & Extended IP Access List
HTTPS / SSH Interface
Auto-disconnect Telnet/Console Session
Access Control for Local Service (FTP/Telnet/HTTP.)
Enable/Disable Network Services
Multi-Level User Account Management
Operation
&
Management
Configuration Backup & Restore for APOS Managements
Use Multiple APOS™ and Configuration
Auto Upgrade via HTTP/HTTPS
Debugging, System Auditing, and Diagnostics Support
