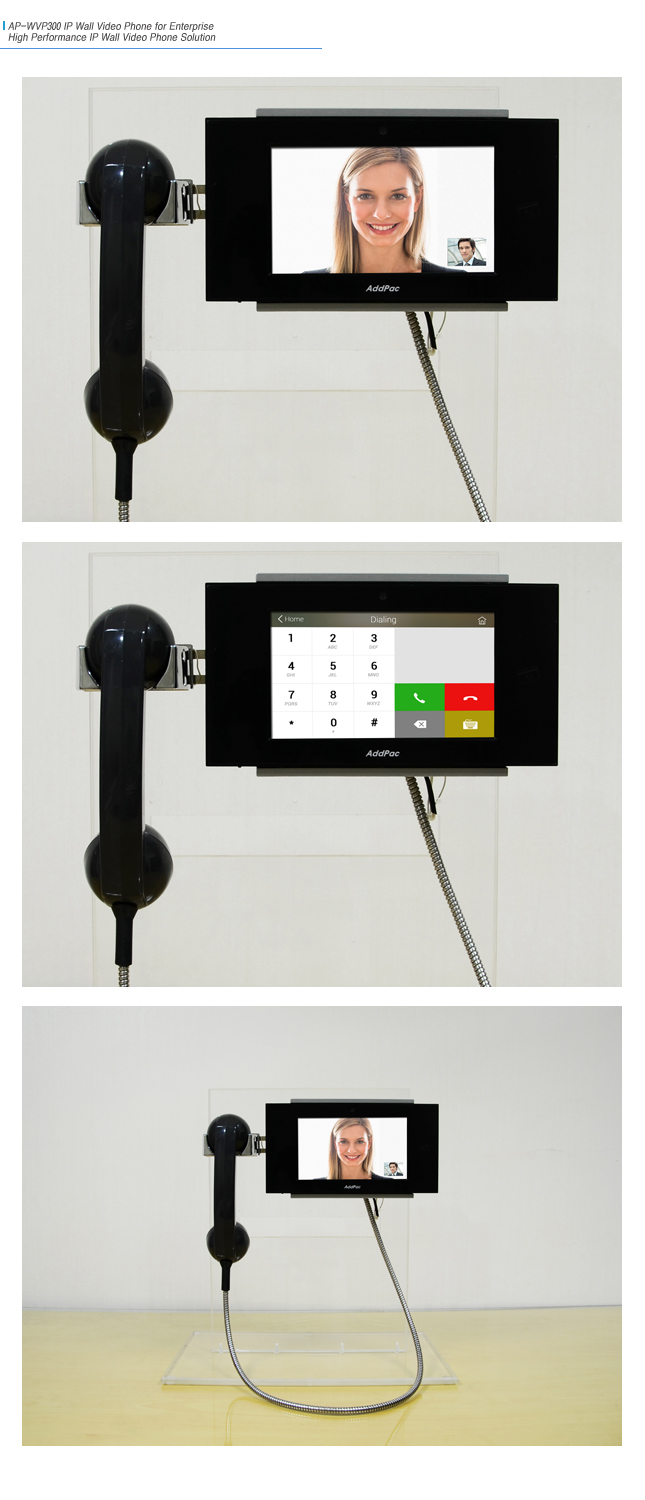

AP-WVP300 enterprise IP wall video phone is a visitor access control unit via video door phone using internet. It uses the SIP VoIP protocol and standard video codec, providing an excellent scalability by interworking with IP video door phone, and SIP call manger. It also supports the latest audio/voice codec at the optimum level. For various application and flexible service, this product use 7inch TFT-LCD with touch screen feature and optional handset for noisy environment like as factory, tunnel, etc.
New Standard Selection of IP Wall Video Phone ¡°High Quality Video¡±
AP-WVP300 IP wall video door phone is combination of SIP VoIP signaling technology/video processing technology. AP-WVP300 provides 64Kpbs level of network so that user may use anywhere with internet connection. Especially, it applies high end ¡°Error Resilience¡± technology to cope with various packet errors to secure optimum level of voice quality in limited bandwidth environments. It also supports G.722 wide band codec along with G.711, G.726 voice band codec. And, for enhanced voice quality, AP-WVP300 supports full duplex voice communication scheme and acoustic echo canceller.
AP-WVP300 is a new IP wall video phone for enterprise, factory, etc where Internet voice communications are combined with Internet video monitoring. This product provides advanced features and services such as video codecs (e.g. H.263, MPEG-4, and H.264), and QoS as well as multiple VoIP signaling protocols such as SIP and H.323. Also, this product supports USB based wifi LAN interface besides one(1) fast ethernet port. Using this dual LAN interface, AP-WVP300 can support wire network environment as well as wireless network environment.
Firmware Upgradeable Structure
AP-WVP300 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-WVP300 is embedded with Smart Web Manager for easy control of IP wall video phone. User may setup/manage IP wall video phone through PC, smart phone, and tablet device.
AddPac VoIP and Multimedia products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-WVP300 will satisfy the needs of customer along with AddPac IP video door access solution.
Network Diagram
Overall Features
Touch Screen Type SIP Wall Video Phone Solution
Support various IP-PBX, SIP video door phone
Support QoS control to secure the optimum level
of voice quality
Apply high end error resilience to cope with
various packet errors in network
Support 7 inch TFT color LCD with touch screen
feature
High Performance Programmable DSP
SIP/H.323 dual stack
Flash memory 256Mbyte, SDRAM 128Mbyte
Support speaker phone
Support Optional External Handset for Noisy
Environment like as factory, tunnel (Option)
Network interface: 10/100Mbps fast Ethernet
interface x 1, USB Interface for External WiFi USB Module x 1
Support PoE (Option)
Audio and Telephone Features
H.264, MPEG4, H.263 Video Codec
G.7.22, G.711, G.726, Voice Codec
SIP/H.323 Dual Stack
¡¡
CPU
High Performance RISC+DSP H/W Architecture
Memory
Flash Memory
256 Mbyte NAND Flash Memory
Main Memory
256Mbyte DDR
Network Interface Module
LAN0 Port
One(1) 10/100Mbps Fast Ethernet
LAN1 Port
USB Interface for External Wifi USB Module
(Option)
Control & Display
7 Inch TFT Color LCD
One-Chip Solution for TFT-LCD
Hardware On-Screen Display (OSD)
Support resolution up to 480xRGBx800
Up to 24-bit RGB888 Digital Interface
Resize Function ( x 1/16, x8)
BT.60/BT.66 Digital YCbCr 4:2:2(8-/16-bit) Interface
Acoustic Echo Canceller
Full Duplex AEC
Full-duplex operation during double-talk
situations
One channel AEC, one channel LEC up to 256ms shared
Cancels echoes with up to 10dB echo return
Advanced noise reduction(up to 20dB)
Speaker
Internal Speaker
Impedance : 8 +-15%ohm at 1kHz, 1.0 Vrms
Sound Pressure : 90 +- 3dB at 0.1W/10 CM
at 800Hz, 1.0kHz, 1.2kHz, 1.5kHz
Resonance Level : 550Hz +- 20%Hz at Fo Hz, 1.0Vrms
Frequency Range : Fo Hz ~20kHz
Input Power : Normal : 1.0 W, Max : 2.0W
Audio Amplifier
Internal Audio AMP.
1-W BTL Output(5V, 0.11 % THD+N)
Uncompensated Gains of 2 to 20 (BTL Mode)
Thermal and Shot-circuit Protection
High Supply Ripple Rejection Ratio
Audio Interface
Input
Internal MIC In
Output
Internal Speaker Out
Power & Operation Environments
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 15Watt,
PoE (Power over Ethernet) : Option
