AP-VAC200 enterprise IP video door phone is a visitor access control unit through internet connection with monitor. It uses the SIP standard VoIP signal process feature, providing an excellent scalability by interworking with AddPac IP-PBX, video phone, and soft phone. It also supports the latest audio/video codec at the optimum level. AP-VAC200 provides enterprise IP video visitor access control solution along with AP-ACS50 Access Control Server.

New Standard Selection of IP Video Door Phone “Video Call”

AP-VAC200 IP video door phone is combination of signaling technology/voice processing technology, and the-state-of-the-art video processing technology. AP-VAC200 provides 64Kpbs~1Mbps level of network so that user may use anywhere with internet connection. Especially, it applies high end “Error Resilience” technology to cope with various packet errors and “Rate Control” to secure optimum level of resolution/frame rate in limited bandwidth environments. It also supports MPEG4 along with H.264 video codec.

Built-In RF Card

AP-VAC200 IP video door phone supports visitor access feature through video image. It supports RF card access and password access feature for the convenience of employees.

Firmware Upgradeable Structure

AP-VAC200 RISC CPU and DSP are all programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.

Smart Web Manager Function

AP-VAC200 is embedded with Smart Web Manager for easy control of video door phone. User may setup/manage IP video door phone through PC, smart phone, and tablet device.

AddPac VoIP products are well recognized in terms of performance and stability throughout the world. With our accumulated experience in enterprise market and communication market, AP-VAC200 will satisfy the needs of customer along with AddPac IP telephony solution.

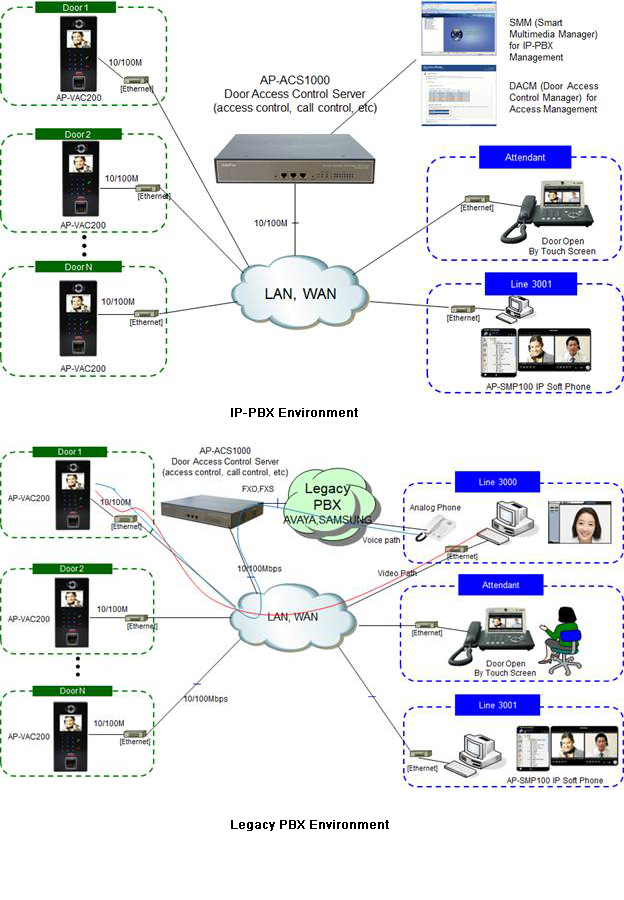

Network Diagram

Overall Features
	Support 30 frames of video communication per second
	Support various IP-PBX, video phone
	Support rate control to secure the optimum level of resolution and frame rate
	Apply high end error resilience to cope with various packet errors in network
	Support 3.5inch TFT color LCD
	High Performance Programmable DSP
	SIP dual stack
	Flash memory 512Mbyte, SDRAM 128Mbyte
	Support speaker phone
	Support back light
	Support access control with RF card and password
	Network interface: 10/100Mbps fast Ethernet interface x 1
	Support RS232/RS422/RS485 interface, alarm input, relay output port
	Support PoE
Video Features
	Supporting codec: MPEG-4, H.264
	Support rate control for high resolution and frame rate
	Apply high end error resilience to cope with various packet errors
Audio and Telephone Features
	3x4 key pad
	G.726, G.711, Voice Codec
	SIP Dual Stack
