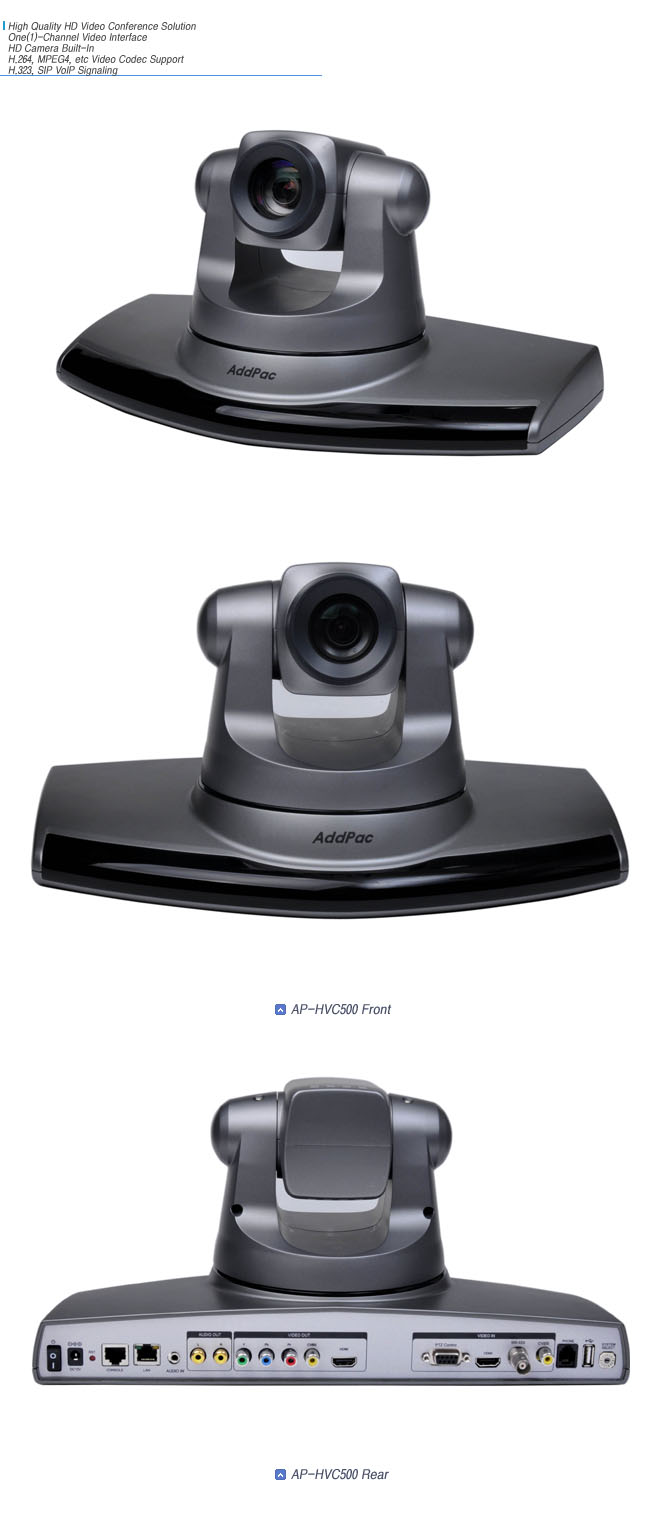

AP-HVC500 HD video conferencing device is an all-in-one high performance IP video communication solution that supports HD camera as well as various video output interfaces. It is designed on the basis of high performance DSP processor to support the latest audio/video codec, various AV input/output interfaces for video conferencing as well as AV broadcasting service.

AddPac AP-HVC500 HD video conferencing device breaks the mold of existing video solution. This can be connected with TV and speaker. It is applicable to various fields such as audio/video broadcasting as well as video conferencing.

Service	Service Description	Required Device
Video Conferencing	video conferencing through other party’s real time video image, connect with external microphone, multimedia communication through display TV.	· External Microphone/Speaker · TV Display
Audio/Video Broadcasting	Use as video broadcasting service terminal along with existing audio broadcasting in finance, local government, and enterprise environment. Must add separate AddPac broadcasting server	· External Microphone/Speaker · TV Display · Audio/Video Broadcasting Server · Audio/Video Contents Source

Use Internet with TV/External Microphone

AP-HVC500 HD video codec supports RCA interface, (Y, Cr, Cb) component interface for the connection of HDTV/Projector, and HDMI concurrently for the purpose of HD 720P (1280X720) video communication. User may setup call dialing through FXS port or call through remote controller on TV screen and setup video conferencing devices easily.

High Performance DSP based HD Video Codec

AddPac AP-HVC500 HD conferencing device is designed on the basis of DSP hardware structure to provide real time audio/video encoding, decoding process for Point-to-Point video conferencing. It supports central process form of centralization system for 1:N multi conferencing by interworking with AddPac MCU device. AP-HVC500 HD video codec system supports various types of video conference mode through external MCU interworking function. It supports Meet-Me (Dial-In), Ad-Hoc (On-Demand) and scheduled video conference method. VoIP signaling for MCU conferencing and 1:1 conferencing supports SIP and H.323.

Firmware Upgradeable Structure

AP-HVC500 high performance DSP is all programmable structure so that constant feature improvement, feature edit, and additional feature can be done without much effort. User may use the latest codec with service as well as existing H.264 codec.

Deliver 30 Frames of HD image per Second

AP-HVC500 HD video codec processes 30 frames of 720P (1280 x 720) video images per second based on H.264 (MPEG-4 Part10) video compressed codec standard. User may feel the crystal clear image resolution through HDTV display screen on this account.

Privacy Protection

AP-HVC500 supports both network security for the purpose of device access restriction and service security. Use CID (caller ID) function to check the other party’s phone number before answering and blocking video/audio feature using remote controller. When selecting “Privacy” menu, you may block voice, video, or both in advance. Also, it supports Secure RTP (AES encryption algorithm) feature to support security function for conferencing in network

AddPac VoIP and video solutions are well recognized in terms of its performance and stability throughout the world. With our accumulated experience in both enterprise market and communication market, AP-HVC500 would satisfy the needs of customer.

Network Diagram

Overall Features
	Video Conferencing, Video Call, Document Sharing (H.264, MPEG4, etc)
	Built-In HD Video Conferencing Camera (Pan/Tilt/Zoom Control)
	High Performance Programmable DSP Architecture
	Video Output Interface: Composite(RCA), Component(Y, Cr, Cb), HDMI Interface Video Input Interface: Composite(RCA), HD-SDI Interface, HDMI Interface Audio Output Interface: RCA Type Audio Output Connector(Left, Right) Audio Input Interface: 3.5mm Stereo Female Audio In
	Network Interface: 10/100Mbps Fast Ethernet Interface
	1Port RS-232C Serial Console Interface
Video Features
	Supporting Codec : H.264, MPEG4, etc
	Built-In High Performance HD Camera (x18) Zoom Lens, PAN/TILT/ZOOM
	Support 30 Frames of HD 720P(1280 x 720) Video Communication
	Support Rate Control to Secure the High Resolution and Frame Rate in Limited Bandwidth
	Apply High End Error Resilience to Cope with Various Packet Errors
	Used as Video Broadcasting Terminal
Audio Features
	Voice Band : G.711, G.726 etc
	Audio Band : AAC-LC
Telephone Features
	On-screen dial pad
	Caller ID & Hold
	IETF SIP, H.323 Signaling Protocol
Network Services
	High-performance IP-Routing Capability with Reliability
	Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
	DNSProxy, UPnP, MAC Address Filter Service
