A whole new world of high quality video communication world is open to the public. A front-runner of video communication AddPac Technology now presents a new vision of full HD video transmission codec. AddPac IP based full HD video transmission solution transmits a high quality full HD video and voice broadcasting in real time.

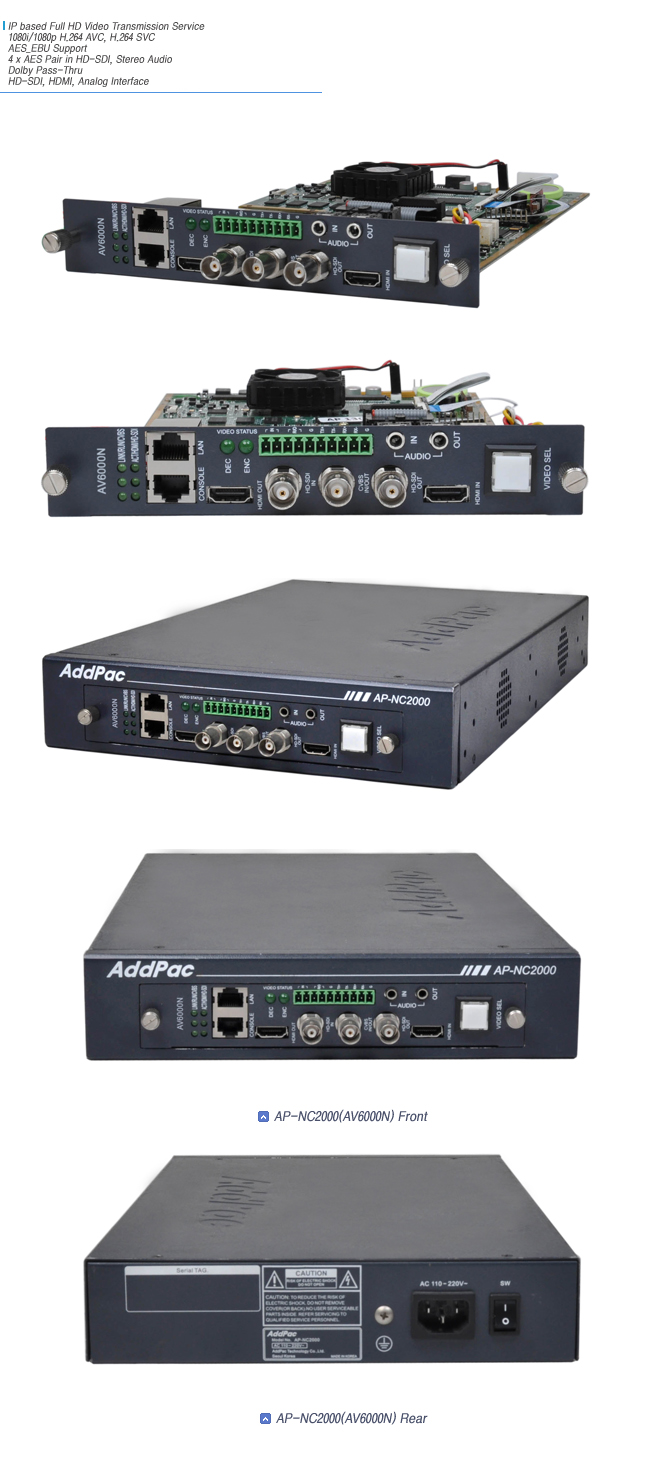

AP-NC2000 system is IP based Full HD video broadcasting media transmission device which can install one AV6000N new full HD video broadcasting encoder/decoder module. It receives HD-SDI based full HD digital video and AES_EBU standard high quality Dolby audio signal through input to perform H.264 video compressed and Dolby Pass-Thru functions. It is applicable to real time full HD video broadcasting fields such as in broadcasting station.
Embedded Hardware Type Full HD High Performance Video Broadcasting Transmission Device
AddPac Technology Full HD IP video broadcasting transmission solution is composed of AP-NC2000 hardware platform, AV6000N new full HD video broadcasting encoder/decoder module. It supports HD-SDI, HDMI, analog CVBS input/output using the latest H.264 video codec. AddPac IP video broadcasting transmission device can encode/decode full HD high quality video by combining with DSP hardware and processor.
Support AES_EBU Standard High Quality Audio Transmission

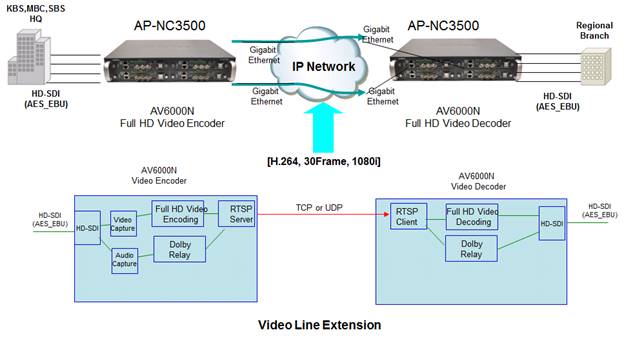

AV6000N AddPac full HD IP video broadcasting codec is designed to support AES_EBU audio broadcasting transmission standard. It is also designed to transmit a high quality audio signal such as Dolby to the local broadcasting station through HD-SDI. At the sending-end, it extracts formatted Dolby signal (4xAES pair signal which is embedded in HD-SDI digital interface) to retransmit to the IP data. At the receiving-end, it performs to embed the Dolby signal as AES_EBY standard along with video signal.
Real Time Full HD Live Broadcasting
AddPac Full HD IP video broadcasting transmission codec supports high quality real time video images based on an excellent performance and stability. AV6000N hardware codec module is a state of the art device which can transmit/replay the high quality video images with RISC CPU + DSP based embedded system. A compressed video image by H.264 supports stabilized high quality video in data integrated network through QoS algorithm. It processes 30 frames of Full HD 1080i/1080p video per second based on H.264 compressed codec standard. Especially, user may setup an appropriate frame rate/bit rate depending on the network status so it accepts from low bandwidth environment to high bandwidth environment.
AP-NC2000 Full HD video device can be operated independently. For the security purpose, user may check the status of device, function setup, and software upgrade through telnet, ftp in remote site. Also, it supports separate GUI based management system for AP-NC2000 operating environment from several points.
Firmware Upgradeable DSP based HW Codec
AV6000N Full HD video codec module supports H.264 based audio/video encoding concurrently. Especially, video codec DSP is all programmable structure so that user may modify, change, and add constantly. A user may use the latest technology without much effort by downloading from the AddPac homepage directly or setting up an auto upgrade option.
Hardware architecture for IP based Full HD video
Support one Full HD video codec module slot
Support H.264 BP/MP/HP (High Profile) AVC Video
H.264 based 30 frame full HD 1080i/1080p video
Embedded with programmable video codec
Support AES_EBU audio transmission standard
Various video/audio interfaces
RTSP/RTP, TCP/UDP support
HD-SDI, HDMI broadcasting input/output
Module Slot Number
One(1) Full HD Video Module Slots
AV6000N Full HD Video Encoder/Decoder Module
One(1) 10/100/1000Mbps Gigabit Ethernet
One(1) RS-232C Interface for System
One(1) HD-SDI Connector
One(1) HDMI Connector
One(1) CVBS Analog Connector
