AP-SVC500 SD video conferencing device is an all-in-one high performance IP video communication solution that supports SD camera as well as various video output interfaces. It is designed on the basis of high performance DSP processor to support the latest audio/video codec, various AV input/output interfaces for video conferencing as well as AV broadcasting service.
AddPac AP-SVC500 SD video conferencing device breaks the mold of existing video solution. This can be connected with TV and speaker. It is applicable to various fields such as audio/video broadcasting as well as video conferencing.
Table 1. AP-SVC500 Service
Service
Service Description
External Device
Video Conferencing
video conferencing through other party’s real time video image, connect with external microphone, multimedia communication through display TV.
· External Microphone/Speaker · TV Display
Audio/Video Broadcasting
Use as video broadcasting service terminal along with existing audio broadcasting in finance, local government, and enterprise environment. Must add separate AddPac broadcasting server
· External Microphone/Speaker · TV Display · Audio/Video Broadcasting Server · Audio/Video Contents Source
Use Internet with TV/External Microphone
AP-SVC500 one(1)-channel SD video codec supports RCA interface, (Y, Cr, Cb) component, HDMI interface concurrently for the 720P(1280x720) HD display connection of HDTV/Projector. User may setup call dialing through FXS port or call through remote controller on TV screen and setup video conferencing devices easily.
High Performance DSP based SD Video Codec
AddPac AP-SVC500 SD video conferencing device is designed on the basis of DSP hardware structure to provide real time audio/video encoding, decoding process for Point-to-Point video conferencing. It supports central process form of centralization system for 1:N multi conferencing by interworking with AddPac MCU device. AP-SVC500 SD video codec system supports various types of video conference mode through external MCU interworking function. It supports Meet-Me (Dial-In), Ad-Hoc (On-Demand) and scheduled video conference method. VoIP signaling for MCU conferencing and 1:1 conferencing supports SIP and H.323.
Firmware Upgradeable Structure
AP-SVC500 high performance DSP is all programmable structure so that constant feature improvement, feature edit, and additional feature can be done without much effort. User may use the latest codec with service as well as existing H.264 codec.
Deliver 30 Frames of SD image per Second
AP-SVC500 SD video codec processes D1 level images per second based on H.264 (MPEG-4 Part10) video compressed codec and processes HD level images for 720P HDTV display via video upscaling (D1->HD). Thus, user may feel the crystal clear images of resolution through HDTV display screen
Privacy Protection
AP-SVC500 supports both network security for the purpose of device access restriction and service security. Use CID (caller ID) function to check the other party’s phone number before answering and blocking video/audio feature using remote controller. When selecting “Privacy” menu, you may block voice, video, or both in advance. Also, it supports Secure RTP (AES encryption algorithm) feature to support security function for conferencing in network
AddPac VoIP and video solutions are well recognized in terms of its performance and stability throughout the world. With our accumulated experience in both enterprise market and communication market, AP-SVC500 would satisfy the needs of customer.

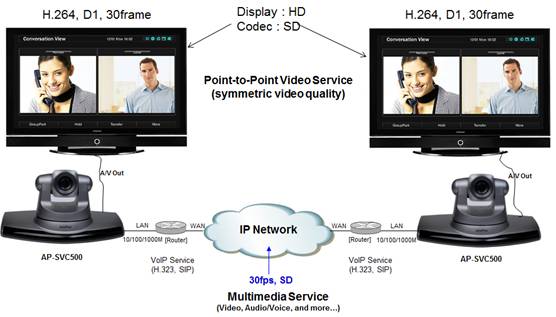

Network Diagram
Overall Features
Video Conferencing, Video Call, Document
Sharing (H.264, MPEG4, H.263 etc)
Built-In SD Video Conferencing Camera
(Pan/Tilt/Zoom Control)
High Performance Programmable DSP
Architecture
Network Interface: 10/100Mbps Fast Ethernet
Interface
1Port RS-232C Serial Console Interface
Video Features
Supporting Codec : H.264, MPEG4, H.263 etc
Built-In High Performance SD Camera (x37)
Zoom Lens, PAN/TILT/ZOOM
Support 30 Frames of D1
Video Communication
Support Rate Control to Secure the High
Resolution and Frame Rate in Limited Bandwidth network
Apply High End Error Resilience to Cope with
Various Packet Errors in network
Used as Video Broadcasting Terminal when
adding video broadcasting server (Optional)
Audio Features
Voice Band : G.711, G.726 etc
Audio Band : AAC-LC
Telephone Features
On-screen dial pad
Caller ID & Hold
IETF SIP, H.323 Signaling Protocol
Network Services
High-performance IP-Routing Capability with Reliability
Static and IEEE 802.1Q VLAN Routing Protocols including
VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management
Features
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server &
Relay, NAT/PAT, IEEE Transparent Bridging,
IP Accounting, and Debugging/Diagnostics, etc.
DNSProxy, UPnP, MAC Address Filter Service
Microprocessor
High Performance RISC + DSP (Digital Signal
Processor)
Network Interface Module
LAN Port
One(1) 10/100Mbps Fast Ethernet
Console Port
One(1) RS-232C Interface for CLI
VoIP Interface
FXS Port
One(1) Port FXS Interface for Analog Phone,
Conference Phone Interface
SD Camera Module(Built-in)
ZOOM
(x27) Optical Zoom
Camera Sensor
High-End CCD Sensor
Video Resolution
D1 level
A/V Interface
Video Input
Composite RCA
Video OUtput
Composite(RCA) Connector
Component(Y, Cr, Cb) Connector
HDMI Interface
Audio Input
One(1)-3.5mm Stereo-In Connector
Audio Output
RCA Type Audio Connector (LEFT, RIGHT)
PTZ Control
DB-9 RS232C Interface for External Camera PTZ
Control
Power Requirement
External Power VAC 110~220 VAC, 50/60Hz, 12V
3.4A Watt
Operating Temperature
0°C to + 50°C (32° to 122°F)
Storage Temperature
-40°C ~ +85°C (-40° ~ +185°F)
Relative Humidity
5% to 95% (Non-condensing)
Dimensions(H x W x D)
171mm x 272mm x 184mm
Basic Routing
Static Routing (IPv4)
Static / DHCP / PPPoE
VRRP(Virtual Redundancy Routing Protocol)
Video Service
Codec
H.263, MPEG4, H.264
Resolution
QCIF(176x144), CIF(352x288), QVGA(320x240),VGA(640x480),
4CIF(704 x 576),
