AddPac IP based Full HD video broadcasting solution is connected with HD video broadcasting terminal, PC based Smart Broadcasting Client with the high performance HD video broadcasting server, HD video broadcasting media server as the center to transmit high quality HD broadcasting and voice broadcasting in real time.

AP-SBS1000 small HD video broadcasting server supports real time broadcasting streaming service and broadcasting recording service with RTSP protocol. It also supports Video on Demand service in PC by using PC based Smart Broadcasting Client software even after real time broadcasting is finished. It is applicable to On-Demand HD level broadcasting field or various IP based real time broadcasting such as assembly broadcasting, preach broadcasting, and remote lecture with one port 10/100/1000Mbps gigabit Ethernet interface and one hard disk interface.

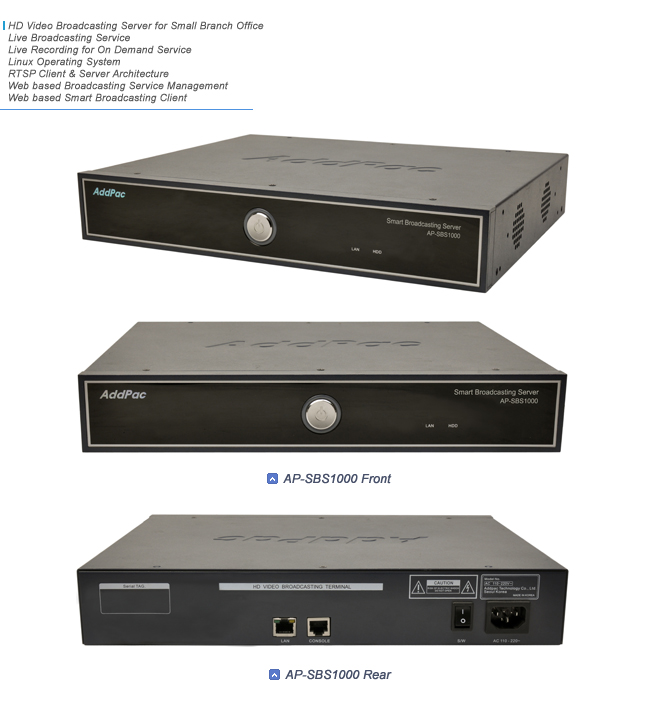

Small Capacity HD Broadcasting Server

AP-SBS1000 small HD broadcasting server can provide On-Demand VoD broadcasting or real time broadcasting to the PC or small number of broadcasting terminal. It supports multi channel broadcasting in real time by receiving compressed H.264 video bit stream from upper level broadcasting server or broadcasting media server under network based IP broadcasting system structure. It also supports video recording function for Video-On-Demand service in hard disk to replay the recorded file in PC. It can install one SATA hard disk. It is designed to support HD level and SD level broadcasting concurrently so that it can be used as SD level if bandwidth transmission is small. Stability has increased with Linux based platform.

RTSP Server Client Concept of HD Real Time Broadcasting Server

AP-SBS1000 HD broadcasting server performs RTSP client function in input which receive video bit stream from HD broadcasting media server such as (AP-VBS5000, 6000, 7000 RTSP Server). Compressed images of video information from HD broadcasting media server performs RTSP server function in HD broadcasting server output for multi channel HD broadcasting servers. It is designed to transmit video bit stream to HD video terminal (RTSP Client). For stable packet transmission, transport layer protocol uses TCP protocol as mandatory in AddPac HD broadcasting server input. It is designed to support TCP or UDP protocol concurrently to cope with various application services such as HD broadcasting terminal in RTSP server in output.

Real Time HD Live Video/Voice Broadcasting

AddPac HD level IP video broadcasting server opens a whole new world of high quality real time broadcasting based on high performance and stability. AP-VBS7000, AP-VBS6000, AP-VBS5000 HD video broadcasting media server, AP-SBS1000, AP-SBS1000 HD broadcasting server, AP-VBT1000 HD video broadcasting terminal are designed on the basis of hardware codec, a high performance RISC CPU based embedded system so that it transmits/replay a high quality video images in real time. It can process 30 frames of Full HD (1280X720) video images per second with compressed H.264 codec so that it provides HDTV broadcasting with 1~4Mbps bandwidth in IP network environment. Depending on the network status, user may setup an appropriate frame rate and bit rate.

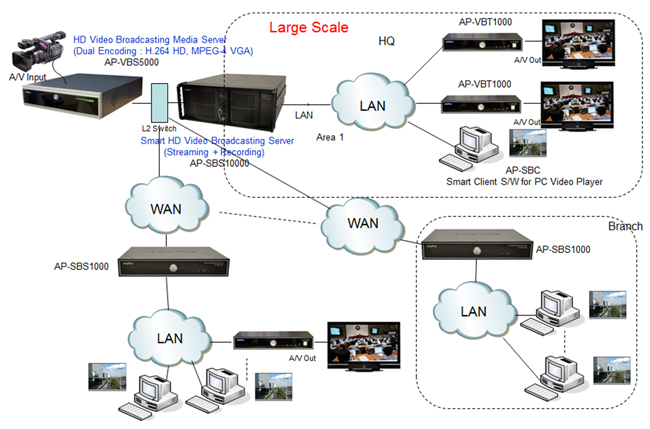

Network Diagram

Overall Features
	Hardware architecture for real time HD video broadcasting
	Support video on demand service
	Linux operating system
	30 frames of HD (1280X720) broadcasting per second based on H.264
	RTSP based broadcasting (RTSO client & server)
	Real time video broadcast recording function
	Support video/audio interface
	Support web based MBMS broadcasting manager software
	Support web based Smart Broadcasting Client software
