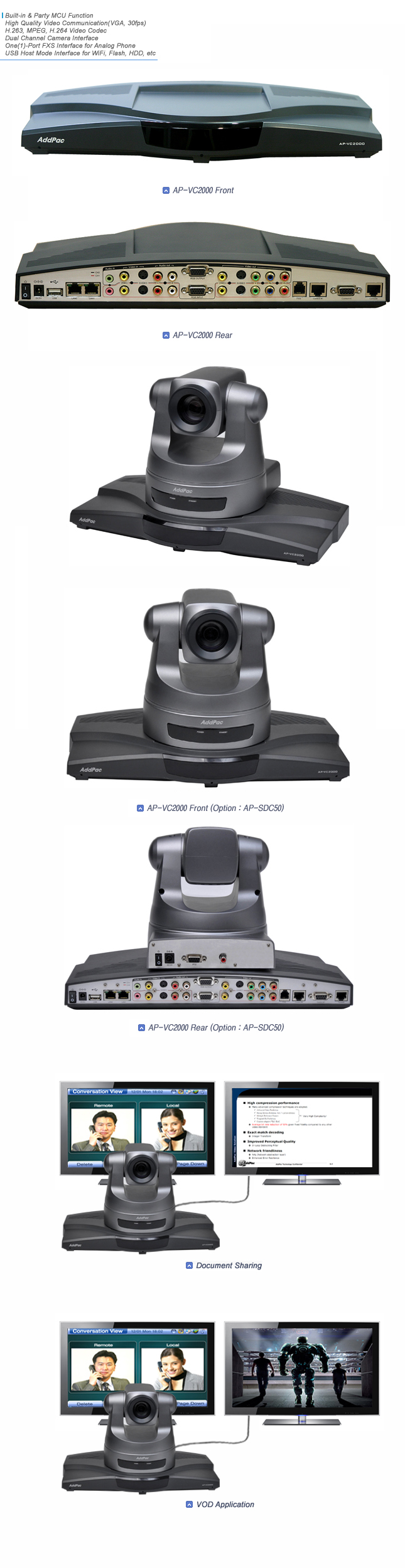

AP-VC2000 Video Conference Equipment delivers a new and powerful IP based video communication by simply connecting televisions, external video camera and ordinary telephones. Designed on firmware upgradeable, high-performance DSP, AP-VC2000 equipped with the latest audio/video codec, AV In/Out interfaces realizing complete Internet video telephony, video conferencing, VoD (video on demanding) applications and AV broadcasting system in one platform. This device provides the dual external video camera In/Out interface and built-in 4 party video MCU for supporting various video communication applications.

Powerful Video Communication Solution for Next Generation Broadband Network

AddPac AP-VC2000 Video Conference Equipment offers improved effectiveness with its cutting-edge DSP based video processing technology, IPv4/IPv6 based networking protocol technology and VoIP signaling technology. By connecting ordinary telephones, televisions, CCD cameras and speakers to AP-VC2000, this device make the ultimate and easy solution for traffic control, audio/video broadcasting and various customer specific applications.

Table 1. Various applications of AP-VC2000

Dual Video Channel for Various Video Applications

AP-VC2000 video conference equipment supports the dual video input/output channel for effective video conferencing. The first video channel of AP-VC2000 is equipped with RCA, S-video and component (Y, Pb, Pr) video output interface for connecting televisions, and with RCA, S-video for external video camera. The second video channel of AP-VC2000 is equipped with D-sub video in/out interface in addition to video features of the first channel. The D-sub interface of second channel can be used for document sharing via PC VGA In/Output Interface.

Keen to New Technology: Firmware Upgradeable Architecture

Designed on programmable high-performance RISC CPU and high performance DSPs, AP-VC2000 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Using this firmware upgrade S/W features and solution (ex, VPMS), new coming video/audio codecs, VoIP signaling protocols and network protocols will be supported

Experience Significant Video Streaming Efficiency

In case of MPEG-4, AP-VC2000 supports max. 30 frames of VGA(640×480) images which is considered promising for the high quality video application. The component video output interface of AP-VC2000 supports the 480P, 720P(1280x720) HD video display. In this HD display mode of AP-VC2000, VGA level video image from remote site can be display at HDTV without video downscale. Also AP-VC2000 provides the state-of-the-art video MCU features of AddPac. AP-VC2000 ensures the best performance of the MCU that supports a 4-party video conference. This product can efficiently control or manage the features (e.g. layout change) of video MCU by CLI(command line interface) via telnet(or RS232) or smart multimedia manager.

Video Solution with Outstanding Network Service Capability

Not only audio/video service, AP-VC2000 is an integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, public IP sharing, QoS features. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS (Quality of Service) and security features are requested. Based on two (2) 10/100Mbps Fast Ethernet ports, AP-VC2000 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT.

USB Interface

The rear panel of AP-VC2000 has the USB master mode interface. AP-VC2000 supports standard USB flash memory, a USB hard disk, a USB keyboard, and a USB mouse. Several USB devices can be connected by using a USB hub. A separate power supply device should be used for a USB device that needs much power consumption since limited power is supplied to a USB device. If USB memory is used, AP-VC2000 enables a file browser, and decodes MP3, JPEG, PMA (video stream format of AddPac), and XVID* (MPEG4, MP3) files. Video data that require much memory can be saved in external USB memory.

AddPac Technology's VoIP gateways, Video Phone, IP-PBX, Broadcasting System, Network DVR, VoD system have been highly appraised with their advanced performance and reliability by worldwide customers. With its years of experience and know-who would make AP-VC2000 as the ultimate solution for next-generation video communication.

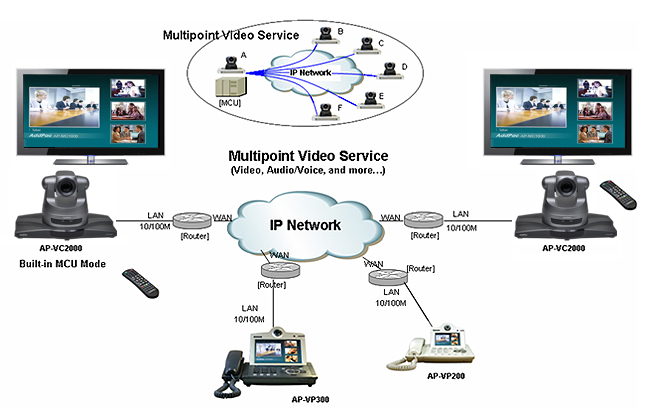

Network Diagram

Overall Features
	Supports VGA (640×480) high quality video communications by 30 frames per second.
	Video MCU(H.263, MPEG4), SIP/H.323 for up to four party
	Meet-Me, Add-Hoc, Dial-Out Video Conferencing Signaling Support
	Dual monitor (Independent Display) and dual monitor emulation
	Supports rate control for the best video quality and frame rate at a limited bandwidth.
	Applies high-end error resilience to troubleshoot various packet failures on a network.
	Remote control, and menu key on the front panel
	High performance programmable DSP
	H.323, SIP Dual Stack
	Flash Memory 16MByte, SDRAM 128MByte
Video Features
	Supported Codec: H.263, MPEG-4, JPEG, and H.264
	MCU: H.263 or MPEG4
	Connected Interface: Composite(RCA)×2, S-Video×1
	Processes 640×480 VGA video by 30 frames per second (based on MPEG-4).
	Supports rate control to ensure the best quality and frame rate at a limited bandwidth.
	High-end error resilience is applied to troubleshoot various packet failures on a network.
Audio Features
	Supported Codec: Voice Band - G.711, G.711PLC, G.723, G.726, and G.729 Wide Band Stereo-MP3, AAC*
Telephone Features
	On-screen dial pad
	Caller ID & Hold
	VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay
	G.723.1, G.729A, G.726, G.711 etc. Voice Compressions
	IETF SIP, H.323 Signaling Protocol
Network Services
	High-performance IP-Routing Capability with Reliability
	Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
	DNSProxy, UPnP, MAC Address Filter Service
