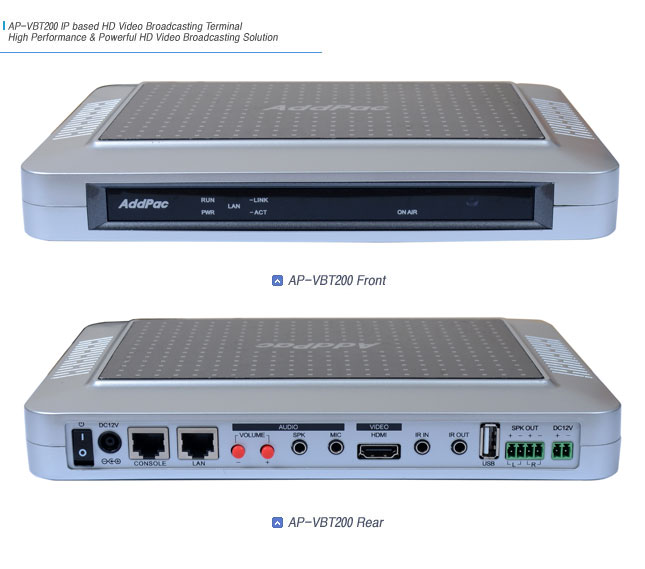

AP-VBT200 Hybrid IP broadcasting terminal supports IP video broadcasting service and IP voice paging service simultaneously, independently. It is designed to support individual audio broadcasting function by supporting additional audio port beside HDMI video output port. It is composed of 1 port 10/100/1000Mbps gigabit Ethernet interface, remote control function, On-Air lamp, IR-input/ouput, HDMI video output interface, Audio Output Interface, and internal built-in AMP. Speaker, etc. It is applicable to various IP based real time HD video broadcasting fields such as government, school, broadcasting, bank, securities and etc.

The popularity of Video over IP broadcasting has been increasing as much as high interest in high performance IP network based HD video broadcasting. IP based HD broadcasting is hard to approach in spite of its high performance due to bandwidth, network infrastructure, and cost of introduction. Now, IP based HD video broadcasting solution provides high resolution/low transmit bandwidth at a reasonable price. AP-VBT200 is compatible with various AddPac solutions such as AP-VBS5000 HD broadcasting server (H.264 media encoder), HD broadcasting management system, AP-ABS5000 multi-channel audio broadcasting server so that you may build an efficient broadcasting environment in accordance with the range of application or the range of field.

Firmware Upgradeable HW Codec

AP-VBT200 high performance video processor is a programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification is required, just directly download from the homepage or setting an auto upgrade option. You may use the latest features without much effort.

Support Multi Codec Broadcasting Terminal Solution

AddPac AP-VBT200 hybrid IP voice & video broadcasting terminal supports a real time high quality HD broadcasting solution based on a high performance and stability by using a high performance video processor. It supports voice & video codec such as G.711, G.726, H.264, etc

Support Independent Audio Broadcasting Port

AP-VBT200 is a sensational device which supports video broadcasting as well as voice paging function for public announcement. It has one additional audio port like as 3.5mm audio output interface and internal built-in digital AMP. output interface(terminal block connector) for speaker. This internal digital AMP. supports 40Watt amplifier service at 8 ohm speaker. This independent audio port may be used in various circumstances such as public announcement while in-video broadcasting service via HDMI video output port.

30 Frames of HD Video Processing per Second

AP-VBT200 is capable of processing 30 frames of Full HD (1080p), HD(720p) video images per second based on H.264 compressed codec. User may setup an appropriate frame rate and bit rate. In case of HD level, user may setup/control the bandwidth (1M~10Mbps)

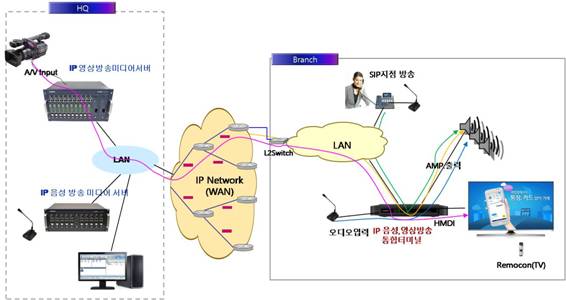

Network Diagram

Overall Features
	실시간 HD 비디오 방송에 특화한 아키텍처
	하드웨어 기반의 HD 영상 및 오디오 코덱
	하이엔드 비디오 전용프로세서를 탑재한 임베디드 시스템
	전면부에 ON-AIR 방송중 표시 램프 기능
	리모콘 기능 및 외부 TV 리모트 제어 기능
	서드파티 캐싱 및 스트리밍 미디어 서버와 원활한 통합 지원
	멀티 A/V 코덱 지원
	비실시간 스케쥴 방송지원(HDD 옵션 모델)
	방송 녹화 및 로컬 비디오 재생 기능 (HDD 옵션 모델)
Video Features
	지원 코덱: H.264
	인터페이스: HDMI 출력 포트
	IP 기반 HD(1920x 1080) 급 영상을 초당 30프레임으로 처리
	H.264 HD Bandwidth : 1~4Mbps
Audio Features
	지원 코덱: G.711, G.726
	인터페이스: 3.5mm Audio Port (MIC., SPK.)
Network Services
	IGMP supporting for Multicast Video Broadcasting Service
	Multilevel QoS Support including AddPac Specialized QoS Algorithm
	High-performance IP-Routing Capability with Reliability
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
