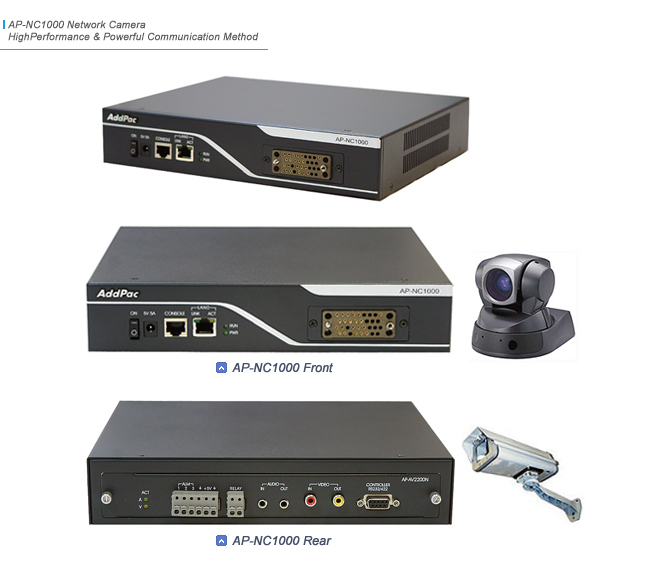

AP-NC1000 Network Camera is a next-generation video surveillance equipment based on High performance DSP. It is equipped with one(1) port 10/100Mbps Ethernet interface, one(1) V.35 leased line router interface(optional) and one multimedia slot for various video/audio codec modules. It provides excellent performance for video application such as high-quality remote video surveillance and real time video conferencing solutions.

AP-NC1000 is designed to support outstanding stability and high quality video transmission and provide various features to meet changing market needs by leveraging the programmable high performance DSP. This market-ready hardware type video codec system enables realization of complete IP video network surveillance and security solution targeting for low-cost implementation for high-quality network cameras. As a modular type IP based network camera system, the AP-NC1000 provides the visual communication solution over various WAN environments such as xDSL, cable TV and internet leased line. The AP-NC1000 is standard compliant and interoperates efficiently with video solutions from other vendors as well as pre-existing video solutions from AddPac, such as the network DVR solution.

Embracing New Technology: Firmware Upgradeable DSP based HW Codec

AP-NC1000 network camera supports audio and video encoding based on H.263, MPEG-4, and cutting-edge video codec, H.264. Designed on programmable high-performance DSP, AP-NC1000 is capable of adopting new capabilities and advanced features by downloading new firmware from AddPac homepage or with its auto-upgrade option as the customers' needs grow.

Experience Significant Video Streaming Efficiency

In case of MPEG-4, AP-NC1000 supports maximum 30 frames of VGA(640×480) images and it is capable of control frame rate and bit rate according to the network condition. Also, remote control of PAN/TILT/Zoom cameras are possible via RS232C or RS422 control ports of the codec module.

Enhanced Remote Management Capabilities

AP-NC1000 provides effective remote system monitoring, configuration and software upgrade via Telnet or FTP. Additional GUI based management system for multi-number of AP-NC1000 is also provided. It realized comprehensive monitoring of AP-NC1000 based on web interface which includes audio broadcasting service to desired end-points.

Ideal solution for surveillance and security

AddPac's high performance programmable DSP offers developers flexibilities to design AP-NC1000 for a wide range of applications such as high quality video surveillance and security.

Video Surveillance : AP-AV2200N, AP-NC1000's basic video codec module component has both built-in Video-Out interface and Video-In interface. Video contents transmitted from branch is delivered to AddPac network DVR located in HQ for real-time archiving. During this sequence, Operator can perform real-time surveillance through monitors. This module is designed for such services as unattended security, traffic control, anti-vandalism and theft surveillance, emergency proof and enables operator to response immediately when an occasion occurs. In addition, VoIP port equipped AV module can be supported for unattended security and public service using Interphone and video monitoring.

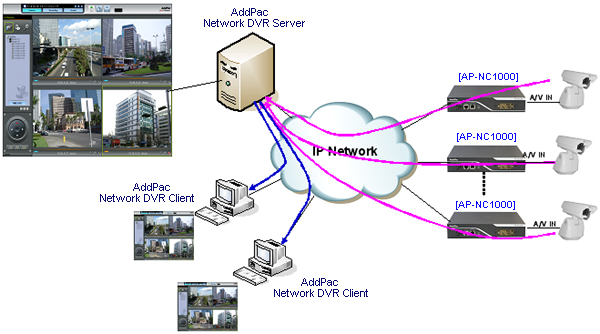

Network Diagram

Overall Features
	Adopt an architecture specially designed for IP based real-time video surveillance devices
	Hardware video codec based on programmable high performance DSP
	Cutting-edge embedded system based on high performance RISC CPU and RTOS
	One(1) multiservice slot for network surveillance video modules
	Integrated structure with V.35 leased line router function
	Full interoperability with AddPac network DVR server
	Video transmission to multiple sites through advanced QoS
	Support diverse codec modules (2 channel video etc)
Video Features
	Supported Codec : H.263, MPEG-4, H.264 etc
	Audio/Video interface module
	· AP-AV2000N : one(1) BNC/RCA input port, one(1) 3.5mm audio input port, one(1) RS232/RS422 control port
	· AP-AV2100N : one(1) BNC/RCA input port, one(1) 3.5mm audio input port, one(1) RS232/RS422 control port,                              3 Alarm input single relay port
	· AP-AV2200N : one(1) BNC/RCA I/O port, one(1) 3.5mm audio I/O port, one(1) RS232/RS422 control port,                              3 Alarm input single relay port
	Max. 30 frames of VGA(640×480) (MPEG-4)
Network Services
	Multilevel QoS Support including AddPac Specialized QoS Algorithm
	High-performance IP-Routing Capability with Reliability
	Static, RIP v1/2, OSPF v2 and IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
	DNSProxy, MAC Address Filter Service
