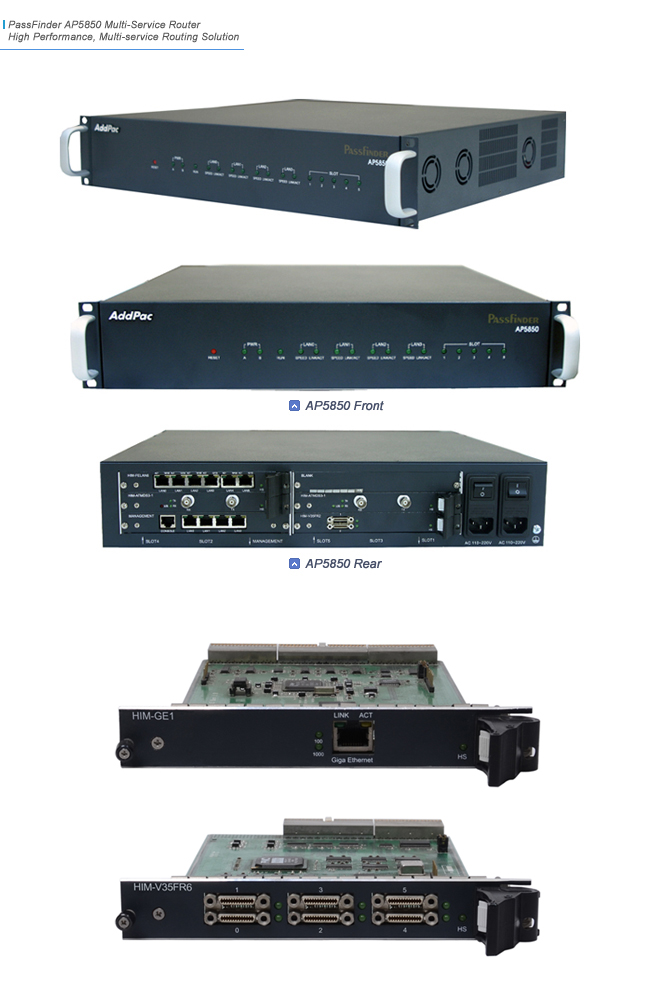

PassFinder AP5850, a multi-service broadband router, is high performance, multi function solution supporting various multi-service modules such as broadband network access, real-time video broadcasting, VoIP Media Gateway, hardware VPN accelerator and gigabit Ethernet module etc.
Secure optimized performance for complicating network.
AP5850 multi-service router is ideal solution for large enterprises with many local branches and government offices. AP5850 is suggesting a new direction for high performance multi-service router by delivering cutting edge technology such as 5 multi-service module slots which supports Hot Swap function, dual AC power unit and the next-generation Internet Protocol, IPv6 Ready etc.
AP5850 as multi-service Router
Below are multi-service modules which can placed in multi-service network slots ; ¡â45(DS3)/155(OC3)Mbps ATM ¡âPOS(Packet over Sonet)/SDH DS3 45Mbps ¡âHSSI(High Speed Serial Interface) ¡âmulti port V.35 serial interface module ¡â6-port 10/100Mbps Fast Ethernet Switch Module ¡â 2-port gigabit Ethernet module ¡â Video module ¡â4-E1/T1 VoIP module ¡âVPN Hardware accelerator etc. These various modules enabling service consistency by replacing modules during the system operation using Hot swap function. Built in 4-port 10/100 Mbps Fast Ethernet Interface offers an optimized performance for interoperation between local networks and AP5850. Apart from built in Ethernet interfaces, 6-port Fast Ethernet switch module enables flexibility when configuring many switching groups. Moreover, 2-port gigabit Ethernet module is based for uplink or interoperation with core switch.
AP5850, by providing same user environment as PassFinder Router series, allows easy installation and maintenance for current PassFinder Router users and even for the first time user. AP5850 is an economical and effective total solution delivering various services from Routing functions such as Static, RIP v1/v2, OSPF v2, BGP v4 to VRRP service for preventing system failure and load balancing. Using modules such as ATM, POS (Packet over Sonet), HSSI(High Speed Serial Interface), Serial and Video, PassFinder AP5850 multi-Service Router offers various WAN connectivity which combining ATM and leased line for large enterprises with small local branch offices and public offices. And also AP5850 enables to realize VPN, IP Video and VoIP media gateway functions. Below describes each function of AP5850 Multi-service Router.
AP5850, as media gateway, processing total 600 channels of VoIP call in real-time
VoIP service is the core application of BcN. AP5850 is a high-performance mid-large range VoIP gateway which enables real-time processing of maximum 600 channels of VoIP call. By placing HIM-VoIP4E1 and 4E1 Digital VoIP module in multi-service slots of AP5850, banking offices, ISP or large enterprises can utilize massive media gateway using 600 channels. Also AP5850 will be an excellent choice for the ITSP for keeping a system consistency using Hot swap function.
Embedded OS, APOSTM of AP5850 supports VoIP control protocols such as H323, SIP, MGCP concurrently and also ensures high quality of voice communication using QoS combined with AddPac's own QoS algorithm.
AP5850 as backbone VPN gateway without network delays
As VPN function has been a new standard of choosing Multi-service Router, AP5850 is equipped with hardware accelerator on each port providing higher performance than hardware accelerator or software based VPN gateways.
VPN module of AP5850 has a hardware accelerator for each port which enables parallel processing so it guarantees high speed/high performance for LAN-to-LAN VPN environment. It offers Active/Standby mode for each port so it enables automatic configuration changes by switching over fault port in Active mode to standby mode without power off the system. Also Hot swap mode can be used for replacing modules.
Moreover AP5850 delivers cutting edge services by supporting not only various IPSec encryption algorithms such as DES, 3DES, AES, blowfish, cast, null but also supports tunneling protocols such as PPTP, L2TP for various network protocols other than IP network.
AP5850 as video broadcasting system supporting H.264
AP5850 is specialized in the effective use of broadband network applications by placing AV modules such as HIM-AV1000R on multi media slot of AP5850, then the head office is able to send multicast or unicast type of Audio or Video broadcasting to its branch offices.
AP5850 can be used as internal IP Video Broadcasting Server by delivering relay service of video image and audio source from a specific terminal to other terminals. In this case, video broadcasting terminal is the video systems such as AP-VR2000, AP-VR1000, AP-VG1000, AP-VP300, AP5850 multi-service router as AddPac's video broadcasting solution is a main video broadcasting system. And all the terminals are managed by AP-VBMS (Video Broadcasting Management System) software. It extends the powerful function of IP Audio broadcasting solution allowing the next level Multimedia network service.
HIM-AV1000R, Audio/Video module, built on AP5850 is a high-performance DSP based hardware codec enabling real-time compression and transferring of analog video/audio source. Video codec H.263, MPEG-4, H.264 are supported in AP5850. H.264 is an advanced video codec offers twice as higher performance than MPEG-4.

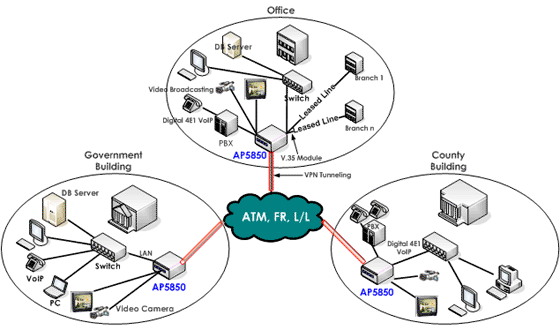

Network Diagram
64 bit RISC CPU architecture for high-performance data
processing
High-performance network modular architecture which supports
Hot swap
Various multi-service modules for 5 of multi-service slot
