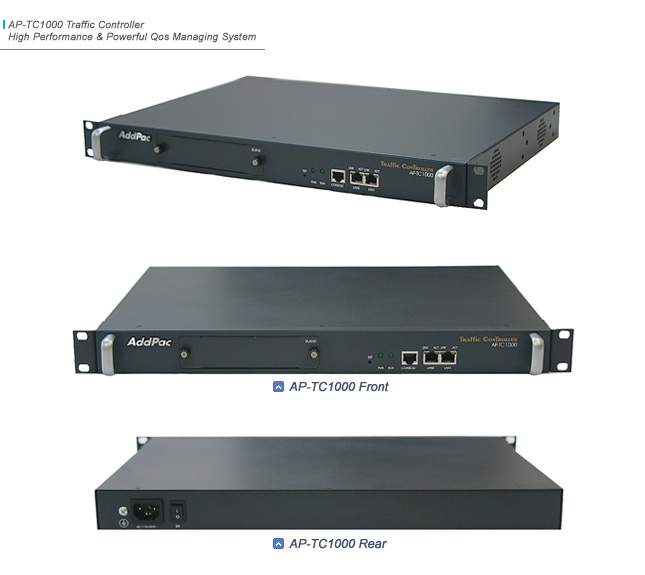

AddPac, an industry leader in the development, manufacture, and marketing of extended range VoIP, Video Conference, IP broadcasting solutions, has developed complete performance oriented solution, AP-TC1000 Traffic Controller for QoS policy management, process/resource allocation, traffic monitoring/analyzing, traffic shaping and traffic prioritizing. It features two(2) port 10/100Mbps Fast Ethernet interface and one(1) multiservice slot for various network modules. AP-TC1000 provides the service providers with the most technically advanced policy based traffic management helping them guarantee performance for their business critical applications. Combined with diverse AddPac's VoIP, Video solutions, It enables the enterprise customers to achieve the easy and efficient traffic management and bandwidth optimization leveraging the richest QoS service.
The collaborative IP communications such as VoIP, IP based video services are rapidly emerging as the future of communications expanding their market as customer's demand grows. Now more than ever, while service quality is getting crucial, questions still remain on the quality in broadband network to carry heavy volume traffic for various business critical applications integrated with hardware type video conferencing equipment, video phone, IP broadcasting equipment, network DVR equipment. Through the use of AddPac's advanced, policy based bandwidth management technology, AP-TC1000 delivers ideal QoS solution for the high-end IP communication application ensuring reliable and consistent service quality in a mixed, real network.
AddPac AP-TC1000 features LAN-to-LAN QoS routing using two(2) Fast Ethernet and optionally provides modular type WAN interface QoS router function. WAN interface modules that AP-TC1000 provides are V.35(1-port, 2-port, 6-port) interface, ATM(E1/T1, DS3, OC-3) interface and POS(DS3). AP-TC1000 supports IPv4/IPv6 dual stack and various basic routing protocols such as Static, RIP, RIPng, OSPFv2/v3, BGP4.
Future Proof Solution on the Foundation of Firmware Upgradeable Architecture
The fail-safe traffic control system, AP-TC1000 features robust AP-TC1000 embedded system and powerful PC Window based Traffic Controller Manager tool. Designed on the foundation of programmable architecture, AP-TC1000 traffic control system is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow.
A Wide Variety of Queuing and Traffic Control Algorithms for Optimal Traffic Control
AP-TC1000 traffic control system supports a wide variety of queuing algorithms such as CBQ (Class-based Queuing), FIFOQ (FIFOQ (First-In First-Out Queue), PRIQ (Priority Queuing), HFSC (Hierarchical Fair Service Curve), RED(Random Early Detection), RIO (RED with In/Out), BLUE, JoBS, WFQ (Weighted Fair Queuing). In addition, it offers three(3) different types of QoS routing algorithms such as Source Address, DSCP, Service Class functionalities.
Enhanced Remote Management Capabilities
AP-TC1000 provides effective remote system monitoring, configuration and software upgrade via Telnet or FTP. Additional GUI based management tool for multi-number of AP-TC1000 is also provided.
Instantaneously Money Saving Solution for Various Services
AddPac traffic control system can be deployed by any IP based application service operators such as VoIP/Video over IP service providers, large enterprises, government offices, internet cafes to improve application performance, reduce network costs and achieve the successful operation of business critical applications. Use AddPac's traffic control system to maximize your average revenue by controlling traffic optimally. AP-TC1000 also guarantees the most outstanding performance especially in low WAN access bandwidth environment.

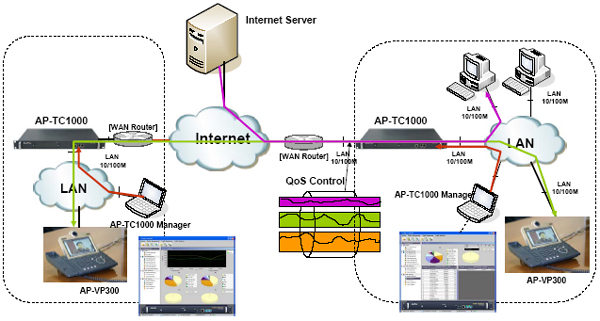

Network Diagram
LAN-to-LAN/LAN-to-WAN QoS Routing architecture
Traffic control functionality with advanced QoS
Embedded system based on high performance RISC CPU and RTOS
