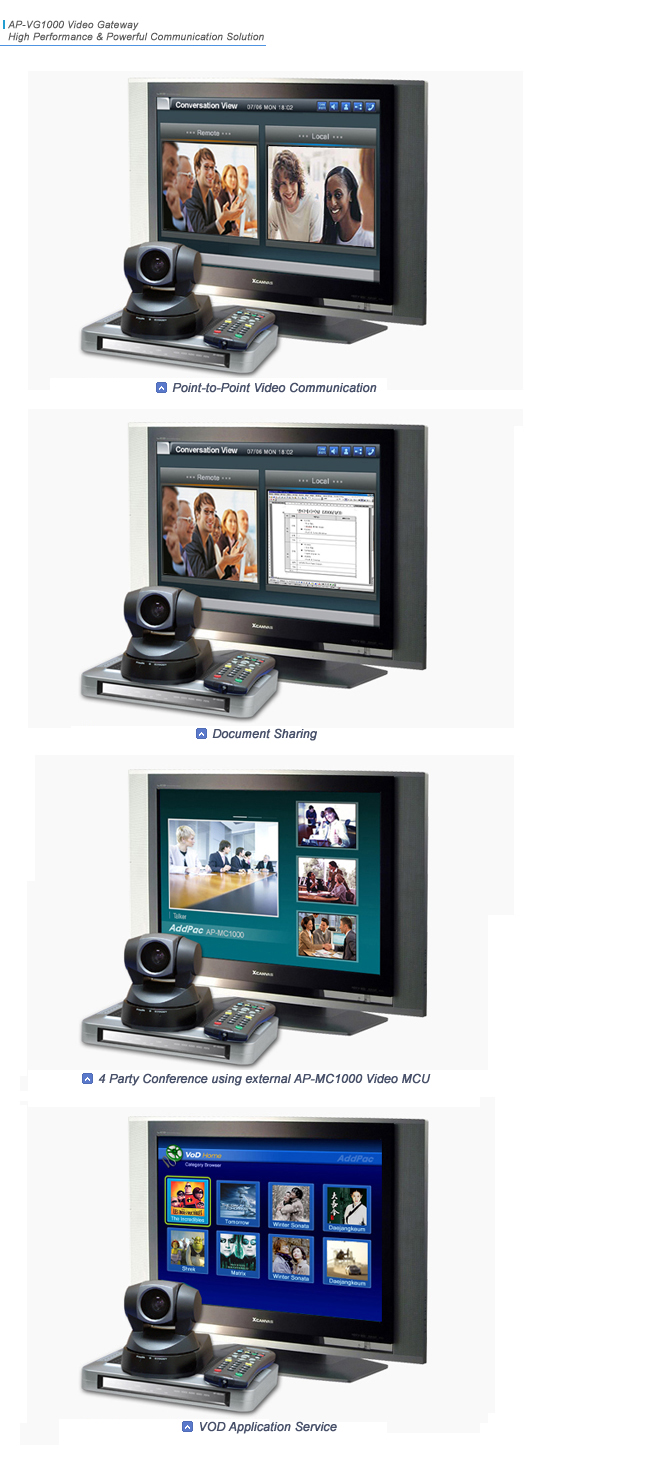

AP-VG1000 Video Gateway delivers a new and powerful IP based video communication by simply connecting televisions, PC monitors and ordinary telephones. Designed on firmware upgradeable, high-performance DSP, AP-VG1000 equipped with the latest audio/video codec, AV In/Out interfaces realizing complete Internet video telephony, video conferencing, and AV broadcasting system in one platform.
A Better Way of Video Communication
AddPac AP-VG1000 Video Gateway offers improved effectiveness with its cutting-edge video communication technology. By connecting ordinary telephones, televisions, PC monitors, CCD cameras and speakers to VG1000, make the ultimate and easy solution for traffic control, audio/video broadcasting and various customer specific applications.
Table 1. Enhanced applications of AP-VG1000
Application
Description
Peripherals
Video telephony
Talk face to face. Multimedia communication by connecting ordinary telephones (or external microphones and speakers), TV, PC monitors
¡¤ Analog telephone ¡¤ CCD camera ¡¤ TV or PC monitor
Unattended security
Supports both real-time remote video monitoring and voice broadcasting. When deployed for unattended security application, able to send voice message to the place of event.
¡¤ CCD camera ¡¤ TV or PC monitor ¡¤ Microphone and speakers for broadcasting
VoIP telephony
VoIP telephony service among video gateways and low-cost telephony service with PSTN users by subscribing Internet telephony service.
¡¤ Analog telephone
Audio/video broadcasting
Along with existing audio broadcasting system at banking sector, public office and local government, enable to deploy as video broadcasting service terminal (Additional broadcasting server required.)
¡¤ TV or PC monitor ¡¤ Microphone and speakers for broadcasting ¡¤ Audio/video for voice and video playback
Flexible Videoconferencing Deployment
Just use your televisions and telephones to enjoy this cutting-edge technology without heavy investment for the initial deployment. AP-VG1000 is equipped with RCA interface for video output, D-Sub interface for connecting PC monitors and S-Video interface for connecting televisions. Also, explore this new communication breakthrough with remote control to easily answer an incoming video call or initiate a call. Moreover, you can fine tune the video gateway configuration from the TV and PC monitors using the remote control.
Keen to New Technology: Firmware Upgradeable Architecture
Designed on programmable high-performance RISC CPU and 600MHz DSP, AP-VG1000 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, the cutting-edge video codec, H.264 is also implemented on firmware level which is capable of new codec services along with currently supported MPEG-4 and H.263.
Experience Significant Video Streaming Efficiency
In case of MPEG-4, AP-VG1000 supports max. 30 frames of VGA(640¡¿480) images which is considered promising for the high quality video application. Moreover, video conferencing feature will be introduced by the firmware upgrade which will make AP-VG1000 a full-featured video telephony solution and video conferencing solution. AP-VG1000 does it all without the hardware Codec based expensive video conferencing equipment.
Why 'Audio' Important to Video Communication
High quality audio determines the perceived quality of video because audio delivers the key part of communication. AddPac AP-VG1000 is an advanced video solution with its quality audio. It ensure toll-quality audio and CD quality sound of MP3, OGG Vorbis* for video telephony and conferencing service.
Video Solution with Outstanding Network Service Capability
Not only audio/video service, AP-VG1000 is an integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, public IP sharing, QoS features. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS (Quality of Service) and security features are requested. Based on two (2) 10/100Mbps Fast Ethernet ports, AP-VG1000 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT.
Audio/Video Privacy Protection
AP-VG1000 brings the network security of 'Standard & Extended IP Access List' and service security as well. With the built-in CID (Caller ID) feature, know how is calling before you answer. Turn off audio or video and even activate 'Privacy' menu for complete audio/video privacy protection from the remote control.
AddPac Technology's VoIP gateways, ATM routers and WAN routers have been highly appraised with their advanced performance and reliability by worldwide customers. With its years of experience and know-who would make AP-VG1000 as the ultimate solution for next-generation video communication.

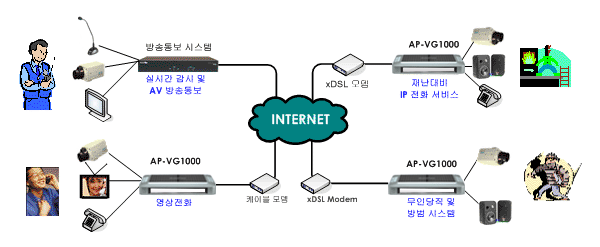

Network Diagram
Overall Features
Image Resolution : Up to 30
frames of 640¡¿480(VGA) image
High-performance CPU &
Programmable DSP Architecture
Flash Memory : 8MByte, SDRAM
64MByte
Expandable Video In/Out
Interface: Composite(RCA)¡¿2, Video Output: S-Video¡¿1
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
PC based Key management scheme
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
