With high-speed network connectivity and supports for multi-service capabilities such as real-time video communication, PassFinder AP5840 Multiservice Router delivers new level of high-performance routing service targeting BcN (Broadband convergence Network) environment.

Integrated Flexible Routing for Today's Mixed Networks

AP5840 Multiservice Router enables the deployment of full services to public and enterprise offices of various sizes. It delivers intelligent service with its supports of four (4)-port independent 10/100Mbps Fast Ethernet interfaces and four (4) multi-service network module slots. Extend the usefulness of AP5840 by installing AddPac's advanced network modules; △25/45(DS3)/155(OC3)Mbps ATM △POS(Packet over Sonet)/SDH DS3 45Mbps △HSSI(High Speed Serial Interface) △Multi-port V.35 Serial Interface Module △High-performance DSP based Audio/Video Modules. The default Fast Ethernet interfaces and ATM, POS, HSSI, Serial, and Audio modules realize optimized multiservice performance at today's mixed network of ATM and leased lines.

DSP based Audio/Video Application

In terms of applications, AP5840 is a break-through. By installing the AV module, AP5840 can be used as audio/video broadcasting equipment and remote video monitoring system. AP5840's audio/video module is based on high-end, TI DSP supporting video codec of H.263, MPEG-4 and H.264*. Especially, H.264* video codec realizes almost two times of performance (quality/ bit-rate) comparing to the popular MPEG-4.

Ensured Interoperability and Reliability

PassFinder AP5840 Multiservice Router offers the same user interfaces as AddPac's PassFinder Router series, to realize more easy installation and operation even for the first time users. Various routing service features of Static, RIP v1/v2, OSPF v2, BGP v4 and VRRP for load balancing along with superior fault tolerance make AP5840 the most effective and powerful routing solution.

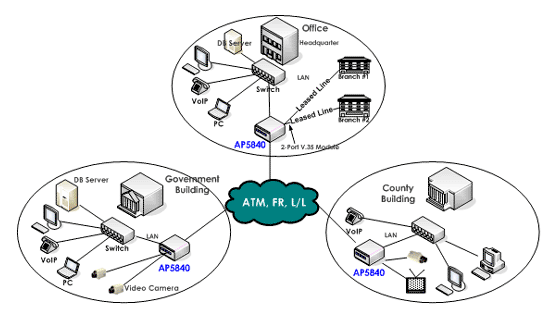

Network Diagram

64-bit RISC CPU Architecture for High-performance Data Processing

High-performance Modular Architecture

· Four(4) Multimedia Network Interface Slot

Four(4) Multimedia Network Interface Slot 　 ① AIM-ATMOC3-1 1-Port OC3 155Mbps ATM Network Interface Module ② AIM-ATMDS3-1 1-Port DS3 45Mbps ATM Network Interface Module ③ 　 AIM-POSDS3-1 1-Port POS/SDH DS3 45Mbps Network Interface Module ④ AIM-ATM25M 1-Port 25Mbps ATM Network Interface Module ⑤ AIM-ATM1E1 1-Port ATM E1 Network Interface Module ⑥ AIM-HSSI 1-Port HSSI Interface Module ⑦ AIM-V35FR1 1-Port V.35 Interface Module ⑧ AIM-V35FR2 2-Port V.35 Interface Module ⑨ AIM-V35FR6 6-Port V.35 Interface Module ⑩ AIM-VoIP4E1 4-Port VoIP E1 Network Interface Module ⑪ AP-AV1000 1-channel Video In/Out Interface (2×RCA or BNC), 1-channel Audio In/Out Interface (2×3.5mm Female)

	4-port 10/100Mbps Fast Ethernet Interface
	Four (4) Multiservice Interface Module Slots
	Supports Various WAN interfaces of ATM, POS, HSSI and Serial
	Supports Video module Equipped with High-end DSP Video Codec
	Dual Power Supply
	Supports Static, RIP v1/v2, OSPF v2, BGP v4 Routing & Transparent Bridging
	Supports IP Multicasting Routing of IGMP & IEEE802.1Q VLAN
	Complete Interoperability by supporting Industry Standards
	Supports Standard SNMP Agent System for Flexible Network System Management
	Web Based Management
	VLAN Routing
	Remote SW Up-grading feature via FTP & TFTP
	Security features of Packet Filtering & Access List
	Application based Traffic Management
	Network Load Balancing & VRRP for Auto Failure Recovery
	Debugging Interfaces for Network Managers
	User-friendly CLI Configuration Environment
