As high-speed Internet networks such as Metro Ethernet and FTTH have evolved into Broadband convergence Network (BcN), application services based on a variety of multimedia such as multi-channel video emergency call/dispatch services in addition to the basic voice emergency call/dispatch services are increasingly getting popular in line with the explosive growth of IP-based Voice over IP (VoIP) services. If you use a PSTN-based telecommunication system currently, pay attention to multi-channel video communication services from now on. AddPac, the leader of integrated multimedia and data communications, presents a new vision of integrated voice and video data.
AddPac Video Emergency Call Provision Platform (VEPP) is a next-generation solution for 1:1/1:N video emergency calls and voice conference calls where an advanced video communication terminal is connected to a hardware-type video broadcasting server, a multi-channel video decoder, a displayer, and to an embedded audio MCU system.
AddPac AP-VEPP Solution
AddPac AP-VEPP allows you to convene urgent meetings at a local government office, deliver information efficiently by using video data while making an emergency call, and to make high quality 1:1 video calls typically. AP-VEPP is configured with AP5840 Video Broadcasting Server, a hardware-type audio MCU device (AP-MC1000), AP-VR2000 Multi-Channel Video Decoder, and various video terminals of AddPac such as AP-VP300. The IP devices of AddPac used for AP-VEPP are equipped with RISC CPU and programmable DSP, and can be upgraded by continuous software development and feature addition to meet various customer needs and environment requirements. Also, the devices are available in next-generation networking environments such as IPv6.
Real-Time Live Multi-Channel Video Emergency Call Services
AddPac presents an advanced next-generation hardware-type video solution to a site that needs high quality real-time video emergency call services. AP-VEPP is an advanced device that enables high quality video to be transmitted and played in real-time since its basic components, which are AP5840 Video Broadcasting Server, AP-VP300, and AP-MC1000 MCU equipped with a voice MCU module, are embedded systems based on a hardware codec and high-performance RISC CPU. The reliability and high quality of the video compressed to MPEG4, H.263, or H.264 are ensured even on an integrated data network by using the state-of-the-art QoS algorithm and error recovery technology of AddPac. AP-VEPP processes VGA (640¡¿480)-level video based on MPEG-4, which is a compression codec, by 30 frames per second to implement SD TV-level video in an IP network environment. In particular, since AP-VEPP allows you to set a frame rate and an appropriate bit rate depending on network status, AP-VEPP accommodates various environments ranging from a low bandwidth to broadband networks.
Audio MCU and Screen Monitoring on Participants at Remote Site
By default, AP-VEPP should support voice hearing or answering for participants in an emergency call from a remote site interactively in real-time. Questions and answers from the participants should be able to be heard by the ones from several sites simultaneously. To enable this feature, AP-MC1000 supports multipoint audio MCU. In addition, AddPac AP-VEPP allows the chairman of an emergency call either in a county/city or at the headquarter to view a screen that displays the participants at a remote site while making an emergency call. AP-VP300 Video Phone supports an internal camera and a video encoder. AP-VR2000 is installed along with a large TV such as PDP and LCD TV at the place where the chairman is located, and functions as a multi-channel video decoder that displays the video data transferred from a remote site.
Advanced Hardware-Type Embedded MCU System
The AP-MC1000 MCU system of AddPac AP-VEPP is configured with two Fast Ethernet interfaces, the RS-232C console for equipment management, and two hardware module slot interfaces for optional cards. AP-MC1000 can be equipped with hardware-based voice MCU modules (e.g. HIM-MCUA1 and HIM-MCUA2) and various network interface modules (e.g. V.35, ATM, and POS). The hardware MCU module is a multipoint audio mixing device in an advanced DSP chip architecture for real-time processing, and enables 1:N multipoint conference calls in a centralized processing method. AP-VEPP supports the MCU feature for voice bandwidth signals such as G.711 and G.726 (HIM-MCUA1). Audio MCU processing can be expanded in the unit of 30 channels (AP-MC1000), and AP-MC1000 supports cascade.
Firmware Upgrade Enabled
The multi-channel video emergency call provision platform of AddPac, AP5840 Video Broadcasting Server, AP-MC1000 Audio MCU Device, AP-VR2000 Multi-Channel Video Decoder, and AP-VP300 Video Phone equipped with high-performance system RISC CPU and DSP are all programmable; thus, the features of AP-VEPP can continue to be improved, changed, or added. If you download an added or changed feature from the home page directly or set an automatic upgrade option whenever feature addition or change is done, you can use the latest feature without further operations.
Various Network Features and Advanced QoS
AP-VEPP supports the latest features and advanced service features ranging from the ones (e.g. a variety of network protocols, better Quality of Service (QoS), and the error concealment technology) specialized for an environment for IP voice conference calls to the Virtual Router Redundancy Protocol (VRRP) service for preventing a failure and load balancing. Accordingly, AP-VEPP can address various issues that may occur depending on network environments.

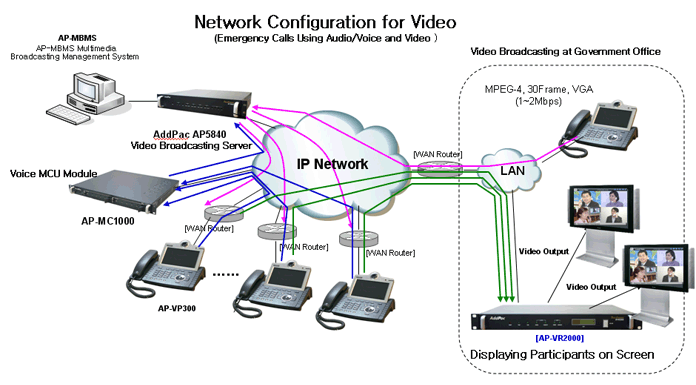

Network Diagram
Total
solution for multi-channel video emergency call/dispatch services
High
quality hardware architecture for multi-channel voice conference call
services
Supports
various high quality IP-based embedded video terminals.
Equipped
with DSP-based hardware voice and video codecs
High
quality video codecs such as H.263, MPEG-4, and H.264*
Supports
AP-MC1000 MCU supporting voice codecs such as G.711 and G.726 per the
HIM-MCUA1 module.
Supports
30 channels (based on G.711) and up to two HIM-MCUA1s.
Provides
an integrated management environment through Smart Multimedia Manager, which
is a management program.
AP-5840,
which is a video broadcasting server, transmits audio/video broadcasts to a
video broadcasting terminal such as AP-VP300, and controls various
broadcasting services by inter-working with a PC-based GUI management tool.
¡¡
AP-MC1000 is
a next-generation hardware-type MCU device for IP voice conference calls.
This product decodes, encodes, or audio-mixes the voice data transferred
from multiple sites in real-time in a centralized processing method to
perform voice mixing while making 1:N multi-party voice conference calls.
¡¡
AP-VP300 is a
high quality IP video phone equipped with its own LCD monitors and cameras.
This product can provide IP-based video emergency call services while being
used as an IP phone or a video phone typically. AP-VP300 is a terminal that
can inter-work with AP5840.
¡¡

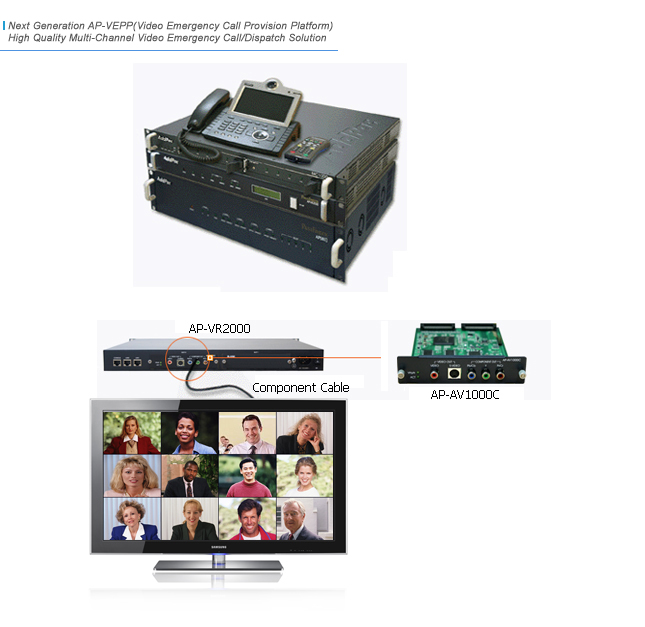

AP-VR2000
performs multi-channel video decoding. This product is installed in a video
emergency call room at a local government office to show a screen, which
displays participants in N emergency calls and is transmitted from each
local government office, on a TV screen in a variety of layouts.
¡¡
AP-MCUA1
AP-MCUA1 is a
hardware-based module that enables audio MCU features just like AP-MC1000.
This product supports hot swap module interfaces as well as voice codecs
such as G. 711 and G.726.
¡¡
Smart Multimedia Manager
This program
manages a solution for multi-channel video emergency calls. This product is
installed into a separate server to make a conference call, make a
conference callback, or to manage a remote device. Smart Multimedia Manager
supports the ad hoc/dial-out service MCU features, and manages devices in
a master-slave architecture since it has a directory management structure.
