AP-VG1000 Video Gateway delivers a new and powerful IP based video communication by simply connecting televisions, PC monitors and ordinary telephones. Designed on firmware upgradeable, high-performance DSP, AP-VG1000 equipped with the latest audio/video codec, AV In/Out interfaces realizing complete Internet video telephony, video conferencing, and AV broadcasting system in one platform.

A Better Way of Video Communication

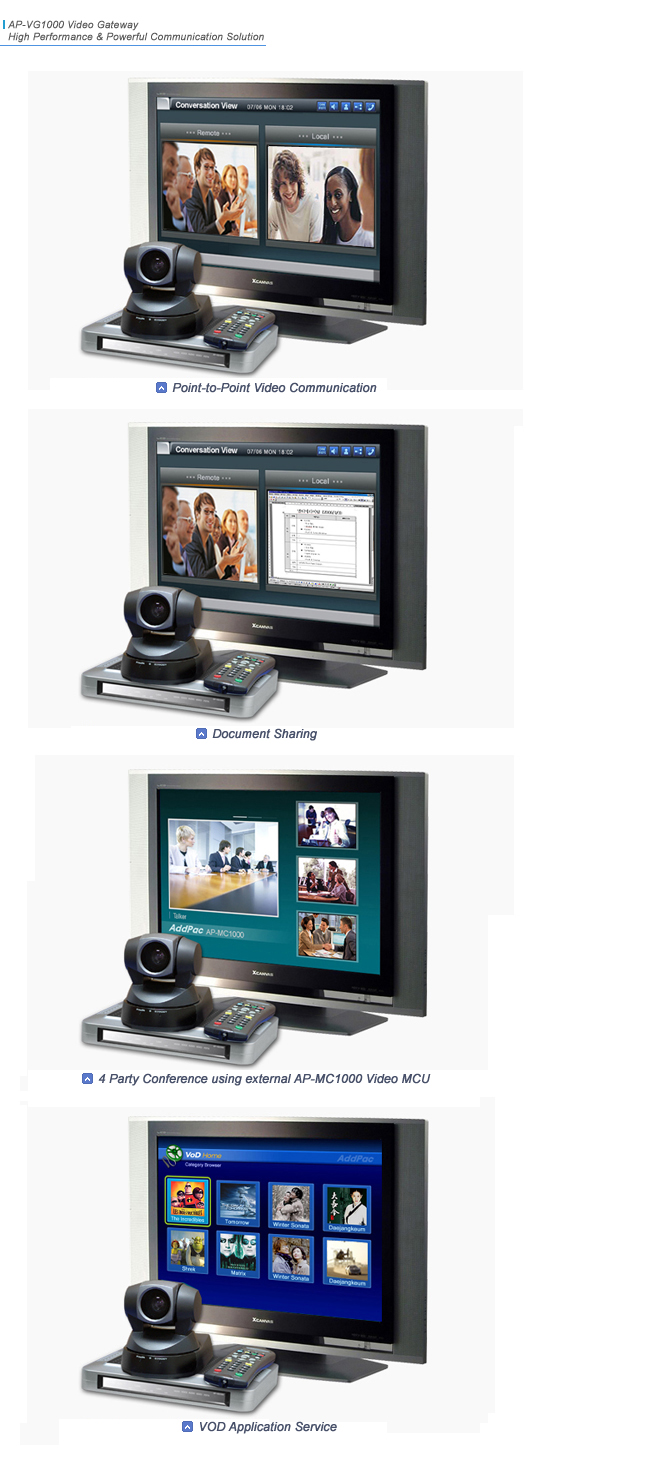

AddPac AP-VG1000 Video Gateway offers improved effectiveness with its cutting-edge video communication technology. By connecting ordinary telephones, televisions, PC monitors, CCD cameras and speakers to VG1000, make the ultimate and easy solution for traffic control, audio/video broadcasting and various customer specific applications.

Flexible Videoconferencing Deployment

Just use your televisions and telephones to enjoy this cutting-edge technology without heavy investment for the initial deployment. AP-VG1000 is equipped with RCA interface for video output, D-Sub interface for connecting PC monitors and S-Video interface for connecting televisions. Also, explore this new communication breakthrough with remote control to easily answer an incoming video call or initiate a call. Moreover, you can fine tune the video gateway configuration from the TV and PC monitors using the remote control.

Keen to New Technology: Firmware Upgradeable Architecture

Designed on programmable high-performance RISC CPU and 600MHz DSP, AP-VG1000 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, the cutting-edge video codec, H.264 is also implemented on firmware level which is capable of new codec services along with currently supported MPEG-4 and H.263.

Experience Significant Video Streaming Efficiency

In case of MPEG-4, AP-VG1000 supports max. 30 frames of VGA(640×480) images which is considered promising for the high quality video application. Moreover, video conferencing feature will be introduced by the firmware upgrade which will make AP-VG1000 a full-featured video telephony solution and video conferencing solution. AP-VG1000 does it all without the hardware Codec based expensive video conferencing equipment.

Why 'Audio' Important to Video Communication

High quality audio determines the perceived quality of video because audio delivers the key part of communication. AddPac AP-VG1000 is an advanced video solution with its quality audio. It ensure toll-quality audio and CD quality sound of OGG Vorbis* for video telephony and conferencing service.

Video Solution with Outstanding Network Service Capability

Not only audio/video service, AP-VG1000 is an integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, public IP sharing, QoS features. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS (Quality of Service) and security features are requested. Based on two (2) 10/100Mbps Fast Ethernet ports, AP-VG1000 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT.

Audio/Video Privacy Protection

AP-VG1000 brings the network security of 'Standard & Extended IP Access List' and service security as well. With the built-in CID (Caller ID) feature, know how is calling before you answer. Turn off audio or video and even activate 'Privacy' menu for complete audio/video privacy protection from the remote control.
AddPac Technology's VoIP gateways, ATM routers and WAN routers have been highly appraised with their advanced performance and reliability by worldwide customers. With its years of experience and know-who would make AP-VG1000 as the ultimate solution for next-generation video communication.

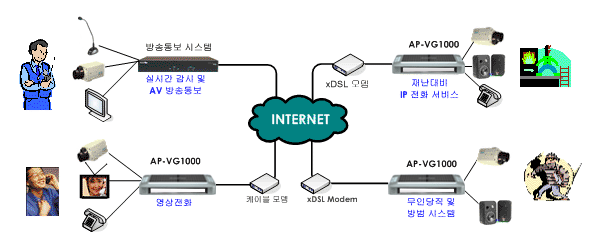

Network Diagram

Overall Features
	Image Resolution : Up to 30 frames of 640×480(VGA) image
	High-performance CPU & Programmable DSP Architecture
	Flash Memory : 8MByte, SDRAM 64MByte
	Expandable Video In/Out Interface: Composite(RCA)×2, Video Output: S-Video×1
	Expandable Audio In/Out Interface : 3.5mm Stereo Female Audio In/Out
	Network Interface : 10/100Mbps Fast Ethernet Interface×2                                    1-port RS-232C Serial Console Interface
	Analog IP Telephony Interface : RJ-11 FXS×1
	PSTN Backup Interface : RJ-11×1
Video Features
	Supported Codec : H.263, MPEG-4, JPEG, H.264*
	Video Interfaces : Composite(RCA)x2, S-Video, RGB(D-Sub)
	Max. 30 frames of VGA (640x480)
	Rate Control Ensuring Optimized Quality and Frame Rate with Limited Bandwidth
	High-end Error Resilience against Various Packet Errors
	Adoptable as Video Broadcasting Terminal with optional Video Broadcasting Server
Audio Features
	Supported Codec : Voice Band - G.711, G.723, G.726, G.729                                   CD-Quality Stereo- ogg vorbis*
	Audio Interfaces : 3.5mm Stereo Female Audio-In (for supporting direct MIC-In)                                 3.5mm Stereo Female Audio-Out (for connecting external speaker)
Telephone Features
	On-screen dial pad
	Caller ID & Hold
	PSTN Back Up Interface(RJ11)
	VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay
	G.723.1, G.729A, G.726, G.711, etc. Voice Compressions
	IETF SIP Signaling Protocol
Network Services
	High-performance IP-Routing Capability with Reliability
	Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc.
	DNSProxy, UPnP, MAC Address Filter Service
