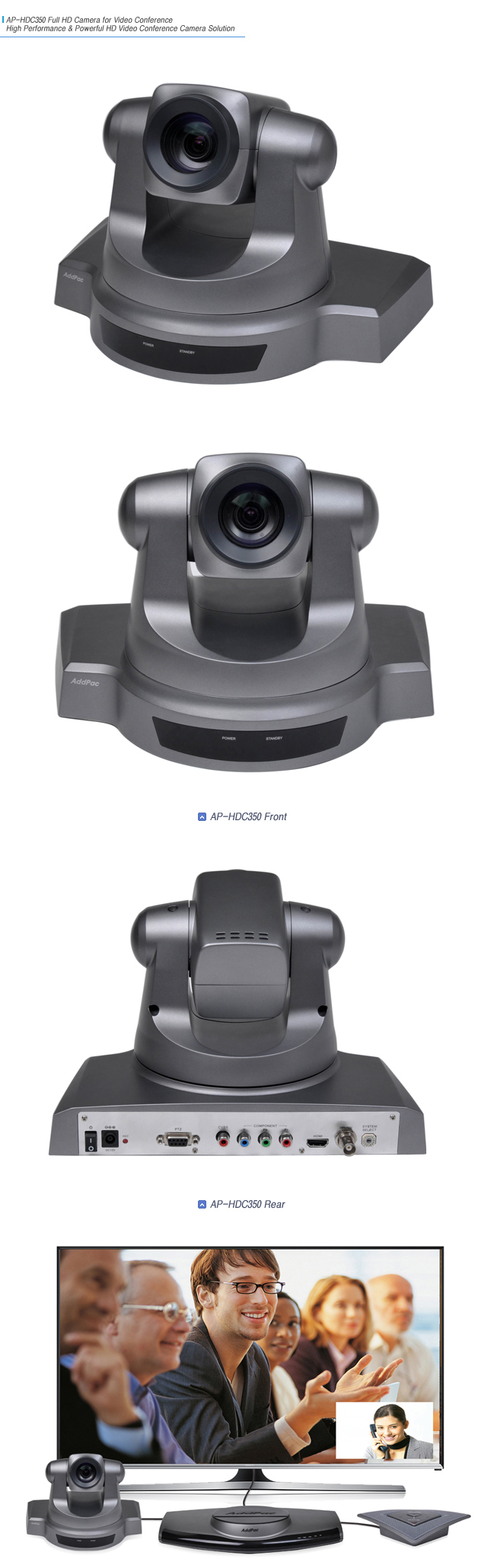

AP-HDC350 conferencing camera is 3.27 Mega Pixel Full HD camera based on high performance CMOS Image Sensor. It is applicable to various real time video transmitting fields such as conferencing, and surveillance with 20X optical zoom lens.

Video Output Interface

AP-HCD350 high resolution Full HD conferencing camera is designed to support various video environments by supporting analog interface (NTSC, PAL), Component (Y, Cr, Cb) video interface, HD-SDI video interface, and HDMI interface.

HD-SDI Video Output Interface

AP-HDC350 high resolution Full HD conferencing camera supports HD-SDI digital output interface to interwork with external HD video codec such as H.264 based IP video codec. Through HD-SDI video output interface, it transmits 1080i/30, 1080i/59.94 Full HD video signal to video codec.

Auto Focus Optical Zoom

AP-HDC350 high resolution Full HD conferencing camera supports 20x optical zoom lens for auto focusing as well as 12x digital zoom.

Camera PTZ Control Port

AP-HDC350 Full HD high resolution conferencing camera provides PELCO-D control protocol to control the installed camera through camera PTZ control port such as RS232/RS485.
