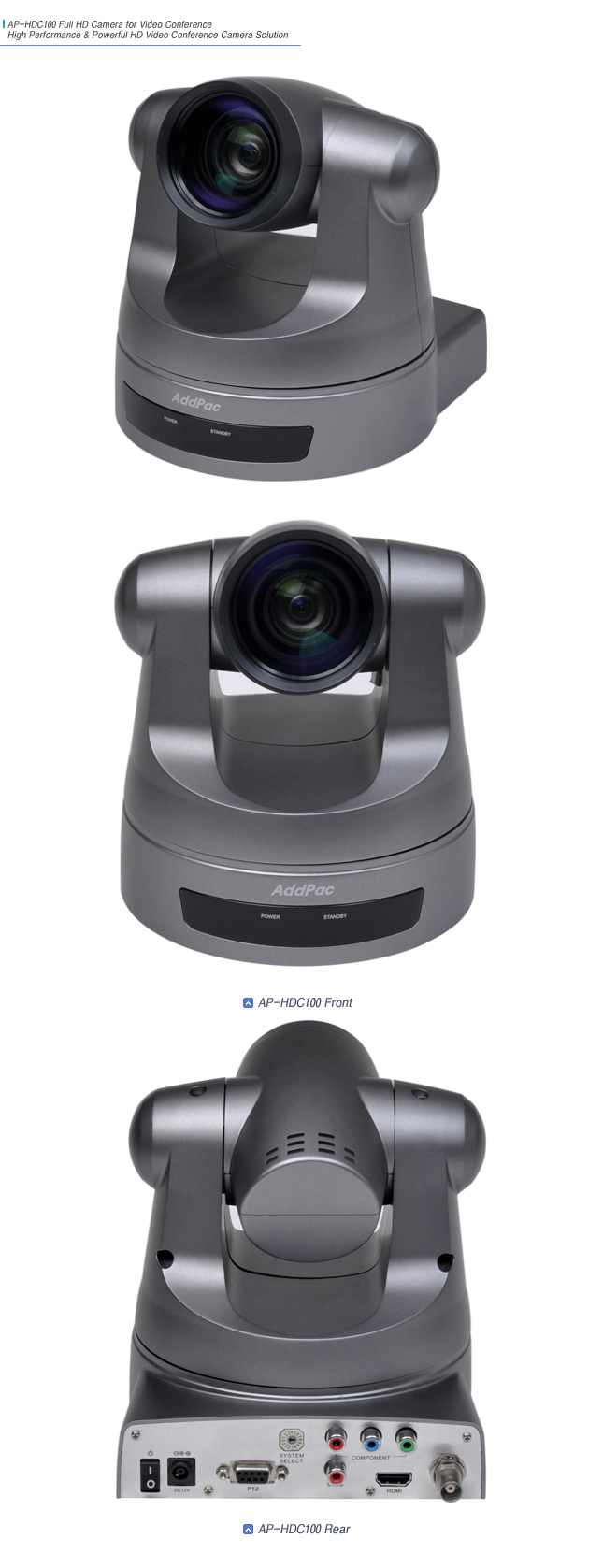

AP-HDC100 conferencing Full HD camera is 2.0 Mega Pixel Full HD camera based on CMOS Image Sensor. It is applicable to various real time video transmitting fields such as conferencing, and surveillance with 10X optical zoom lens.
Video Output Interface
AP-HCD100 high resolution Full HD conferencing camera is designed to support various video environments by supporting analog interface (NTSC, PAL), Component (Y, Cr, Cb) video interface, HD-SDI video interface, and HDMI interface.
HD-SDI Video Output Interface
AP-HDC100 high resolution Full HD conferencing camera supports HD-SDI digital output interface for external HD video codec interworking. Through HD-SDI video output interface, it transmits 1080i/59.94 full HD video signal to video codec.
Auto Focus Optical Zoom
AP-HDC100 high resolution Full HD conferencing camera supports 10x optical zoom lens for auto focusing as well as 12x digital zoom.
Camera PTZ Control Port
AP-HDC100 HD high resolution conferencing camera provides PELCO-D control protocol to control the installed camera through camera PTZ control port such as RS232/RS485.
