A front-runner of video communication AddPac Technology now presents a new vision of full HD video transmission codec. AddPac IP based full HD video transmission solution provides a high quality full HD video and audio broadcasting service in real time. This solution is composed of various multi-slot hardware platforms, AV3500 full HD video broadcasting encoder/decoder module. This AV3500 Full HD video codec module supports HD-SDI, HDMI, analog CVBS input/output using the latest H.264 video codec. AddPac IP video broadcasting transmission device can encode/decode Full HD high quality video by combining with DSP hardware and processor.
Especially, AP-NC2000 system is IP based Full HD video broadcasting media transmission device which can install one AV3500 Full HD video broadcasting encoder/decoder module. It receives HD-SDI based Full HD digital video and AES_EBU standard high quality Dolby audio signal through input to perform H.264 video compressed and Dolby Pass-Thru functions. It is applicable to real time full HD video broadcasting fields such as in broadcasting station.

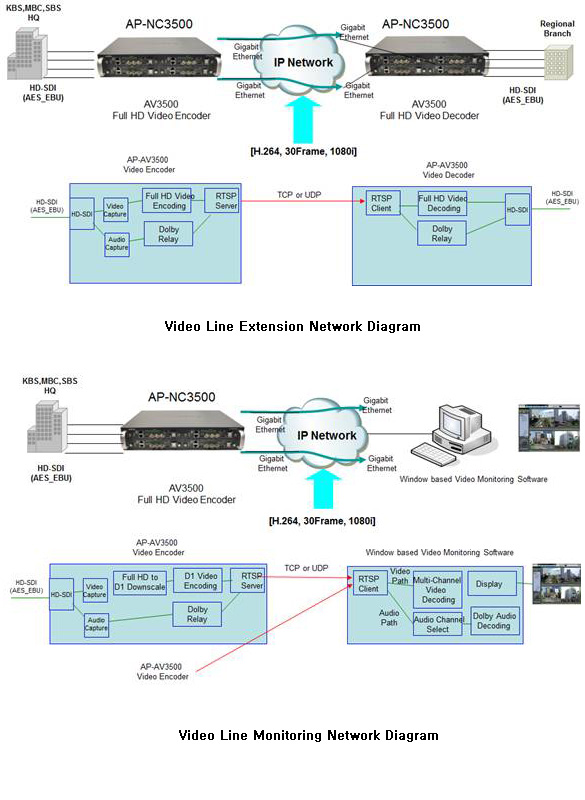

AV3500 Full HD video codec is designed to support AES_EBU audio broadcasting transmission standard. It is also designed to transmit a high quality audio signal such as Dolby to the local broadcasting station through HD-SDI. At the sending-end, it extracts formatted Dolby signal (4xAES pair signal which is embedded in HD-SDI digital interface) to retransmit to the IP data. At the receiving-end, it performs to embed the Dolby signal as AES_EBU standard along with video signal.
AV3500 embedded video codec module is a state of the art device which can transmit/replay the high quality video images with RISC CPU+DSP based embedded system. A compressed video image by H.264 supports stabilized high quality video in data integrated network through QoS algorithm. It processes 30 frames of full HD 1080i video per second based on H.264 compressed codec standard. Especially, user may setup an appropriate frame rate/bit rate depending on the network status so it accepts from low bandwidth environment to high bandwidth environment.

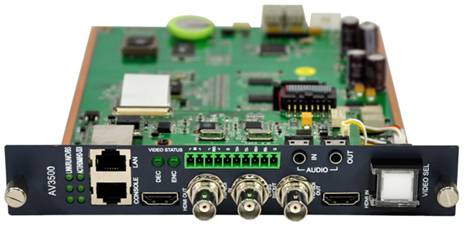

AV3500 Full HD Video Codec Module

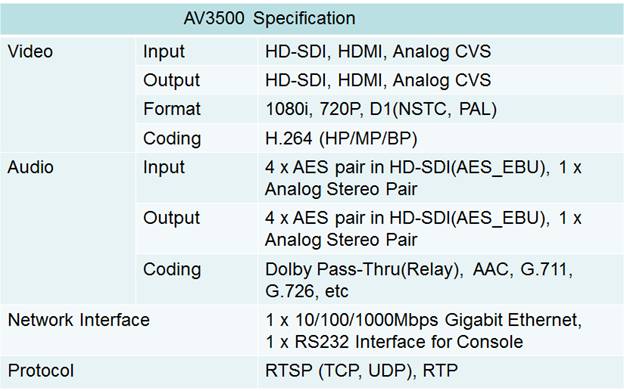

AV3500 Hardware Specification

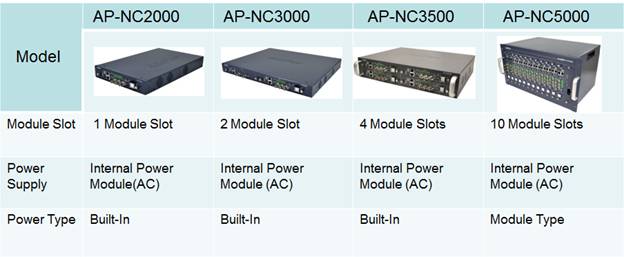

Hardware Platform for AV3500 Full HD Video Codec Module
