VoiceFinder AP5800 is an advanced high-capacity VoIP gateway for Next Generation Network (NGN), which can be equipped with analog voice interfaces of up to 256 ports. The analog interfaces of AP5800 present an optimal call scenario for inter-working with an analog PBX, and ensure better features and performance compared to the plain old VoIP gateways.
256-Port Analog Interface Supported
New VoIP gateway models are not just secondary solutions but main communication solutions combined with IP-PBX; thus, you should choose an optional VoIP gateway to make the most of VoIP communications. AP5800 of AddPac Technology is a high-capacity VoIP gateway that provides analog interfaces of up to 256 ports. If you use AP5800 at regular enterprises organized into headquarters and branches, government offices, or local governments, AP5800 could function as a media gateway that inter-works with IP-PBX or as a solution that can replace a large-scale analog PBX. If you use AP5800 at a site where analog lines are installed for calls between the headquarters and branches by connecting the extensions of the PBX at the headquarters with a multiplexer (MUX) or a dedicated phone line, the best VoIP communications can be made while the disadvantages of the traditional phone environment are complemented.
32-Port Analog Modules
Powerful Network and Redundant CPU Interface
AP5800 is an NGN media gateway in terms of hardware architecture, and is designed to provide advanced services. AP5800 supports a high reliability CPU interface for redundancy optionally, and enables hot swap of CPU modules and analog subscriber modules. The front panel of this product has LEDs that allow you to check the status of lines, LAN interfaces, and CPU. Two 10/100/1000 Mbps Gigabit Ethernet ports and a RS232C console interface can provide a variety of network services through Command Line Interface (CLI). The redundant power supply is modular type and can be installed or uninstalled to ensure safety. The device is designed to support either AC input (100~220V) or DC48 selectively.
High Calling Quality and Supplementary Services
The performance and reliability of AddPac VoIP gateway series have been recognized in global markets as well as the domestic market. AP5800, which is a collection of experiences and know-how accumulated in the enterprise and service provider markets, provides excellent services that meet the needs of customers that ask for high quality VoIP services. Also, this product provides better VoIP services due to the unique QoS algorithm of AddPac by ensuring Quality of Service (QoS) for SIP, MGCP VoIP call control protocols, and better calling quality.
Easy Adaptation to Environment Changes
The CPU board, subscriber analog interface board, and power supply of AP5800 are modular, and can be installed or uninstalled. This product can adapt to external communication environment using large capacity high speed DDR2 memory. AP5800 allows you to flexibly enable new advanced application services such as IPv6.

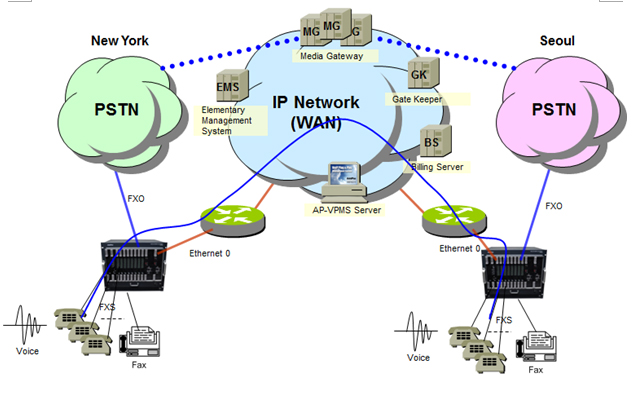

Network Diagram
High Performance PowerPC RISC
Microprocessor Architecture
(Both Redundancy Mode and Single Mode
Supported)
High Performance Network Modular
Architecture
32 Port
Voice Interface Slots
①
MGSA-FXS32
32-Port FXS
VoIP Interface Module
②
MGSA-FXS32-N1
32-Port FXS
VoIP Interface Module
③
MGSA-FXO32
32-Port FXO
VoIP Interface Module
Highly Integrated System Supporting
Analog Interfaces of up to 256 Ports
High-performance IP-Routing Capability with Reliability
Static, RIP v1/2, OSPF v2 and IEEE 802.1Q VLAN Routing
Protocols including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management
Features
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server &
Relay, NAT/PAT, IEEE Transparent Bridging,
IP Accounting, and
Debugging/Diagnostics, etc.
- DNSProxy Support
- UPnP Support
- MAC Address Filter Service
CPU
Board
(Active)
Microprocessor
High-Performance RISC Microprocessor
Memory
Flash Memory
512Mbyte NAND
SDRAM Memory
1Gbyte DDR2
Boot Memory
512Kbyte Flash Memory
Network Interface
LAN0 Port
One(1)
10/100/1000Mbps Gigabit Ethernet
LAN1 Port
One(1)
10/100/1000Mbps Gigabit Ethernet
Console Port
One(1) RS-232C
Interface
CPU Board
(Standby)
Microprocessor
High-Performance RISC Microprocessor
Memory
Flash Memory
512Mbyte
SDRAM Memory
1Gbyte
Boot Memory
512Kbyte Flash Memory
Network Interface
LAN0 Port
One(1)
10/100/1000Mbps Gigabit Ethernet
LAN1 Port
One(1)
10/100/1000Mbps Gigabit Ethernet
Console Port
One(1) RS-232C
Interface
Voice Interface
Module
MGSA-FXS32
32-Port FXS Voice
Interface Module
MGSA-FXS32-N1
32-Port FXS Voice Interface Module
MGSA-FXO32
32-Port FXO Voice
Interface Module
Number of Voice
Module Slot
8 Slots (32 Port x 8
Slots = 256 Port)
Number of Power
Module Slot
2 Slots
Power Specification
VAC 110~220V, 50/60Hz,12V/60A, 5V/30A
Default : Single Power Supply
Option : Dual Power Supply for Redundancy
Option : AC Power Supply, DC Power Supply
System Performance
Analysis for Process, CPU, Connection I/F
Configuration Backup
& Restore for APOS Managements
Debugging, System
Auditing, and Diagnostics Support
System Booting and
Auto-rebooting with Watchdog Feature
System Managements
with Data Logging
IP Traffic Statistics
with Accounting
PC based Key
management scheme
Other Scalability
Features
DHCP Server & Relay
Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging
(IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
