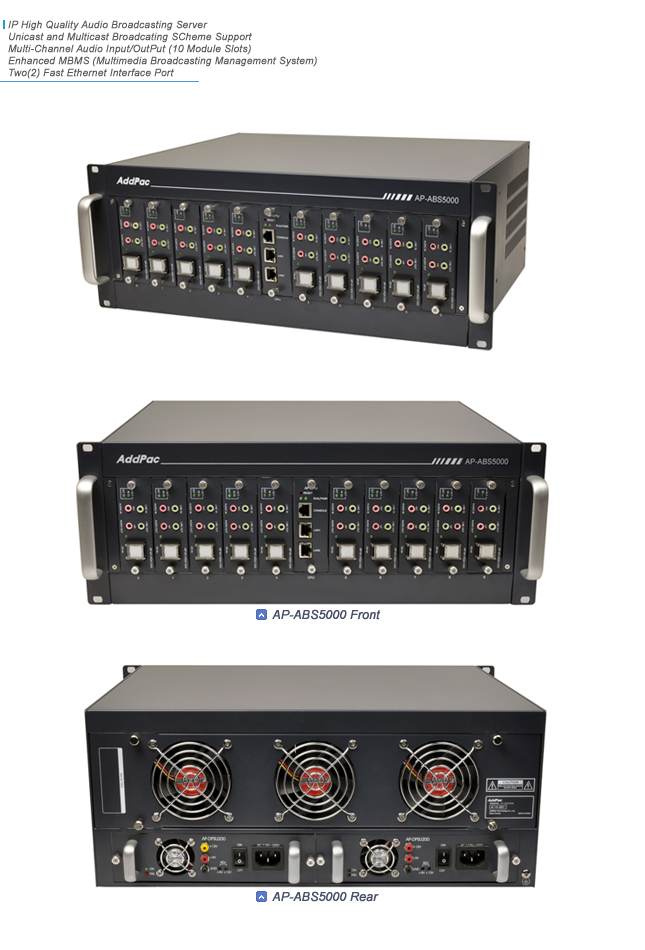

VoiceFinder AP-ABS5000 multi-channel IP audio broadcasting server is an internet access ready IP broadcasting device to support multi-channel audio and voice broadcasting transmission by using IP protocol in finance, enterprise, and public office. It supports high definition audio quality up to 16KHz with high quality audio compressed codec such as .

AP-ABS5000 multi-channel IP audio broadcasting server supports voice broadcasting through internet in enterprise environment as well as excellent solution in video broadcasting to satisfy the needs of customer demand. Beside, VoiceFinder AP-ABS5000 IP audio broadcasting server supports stabilized two fast Ethernet service port and let you install maximum of 10 audio codec modules. Installation and maintenance are simple for a beginner.

Hardware Type High Performance Video Broadcasting Server

AddPac IP audio broadcasting solution is composed of AP-ABS5000HD level IP audio broadcasting server, AP-BCR2000 broadcasting router and AP1601N HD level IP audio broadcasting terminal. AP-ABS5000 HD audio broadcasting server is designed to install 10 module slots for providing high quality audio broadcasting. AP-ABS5000 audio broadcasting module not only supports high quality audio codec such asbut it also supports PSTN voice quality codec such as G.711 for backward compatibility. AddPac IP audio broadcasting server is combined with high performance DSP hardware and high performance processor to encode/transmit the HD level high quality audio signal in real time.

Real Time HD Live Audio

AddPac HD IP audio broadcasting server opens a whole new world of high quality real time audio broadcasting based on the high performance and stability. Compressed audio with supports stable audio under the data combination network through QoS algorithm. Especially, a user may setup an appropriate bit rate in accordance with network status so that it would accept from low bandwidth to high bandwidth.

Support Unicasting/Multicasting Protocol

AP-ABS5000 multi-channel IP audio broadcasting server supports Multiple Point-to-Point method unicasting IP audio broadcasting function as well as IGMP based Multicasting Routing function. A user may setup in accordance with user network application and support economical/efficient solution as fast internet access IP broadcasting system.

High Performance Network-CPU Interface

AP-ABS5000 multi-channel IP audio broadcasting server is designed to support high performance service as IP multi channel audio broadcasting server. A user may check line status with status check LED, LAN interface status, and CPU status in front of device. It supports two 10/100Mbps fast Ethernet port and RS232C console interface such as LAN-to-LAN routing service, bridge service, and NAT/PAT service.

High Quality Audio Broadcasting and Supplementary Service

A various IP broadcasting device series is widely recognized throughout the world in terms of its stability and performance. AP-ABS5000 multi-channel IP audio broadcasting server will satisfy the various needs of customer demand for IP based audio broadcasting service. It supports stable service in internet network with AddPac QoS (Quality of Service)

Overall Features
	High Performance Power PC RISC Microprocessor Architecture
	High Quality Audio Broadcasting Module with High-End DSP
	G.711 Codec
	High Performance Network Modular Structure
	IP Audio Broadcasting Module ① AP-HQA1000 1-Port Audio In/Out Processing Module
	Maximum 10 Ports Audio Input/Output Multi Channel IP Audio Broadcasting System
	Multi Point-to-Point IP Audio Broadcasting Function
	Support IP Multicasting Routing Function and IEEE802.1Q VLAN such as IGMP
	Two Port 10/100Mbps Fast Ethernet Interface
	High-performance IP-Routing Capability with Reliability
	Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Support Remote Software Upgrade Function with FTP and TFTP
	Support Debugging Setup Environment for Network Management
	Support CLI Setup Environment
	Power Redundancy
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging,
	IP Accounting, and Debugging/Diagnostics, etc. - DNSProxy Support - UPnP Support - MAC Address Filter Service
