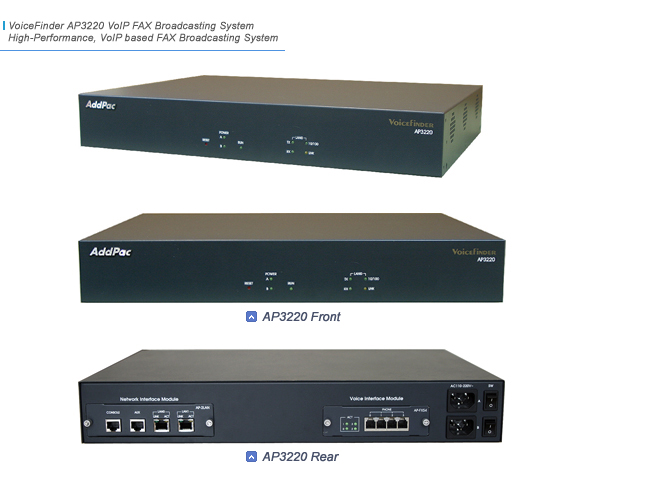

VoiceFinder AP3220 VFBS(VoIP FAX Broadcasting System) provides high-performance VoIP based FAX (T.38 protocol) Broadcasting Solution including IP-routing services for bank, Securities, large enterprise, and government.
VoiceFinder AP3220 VFBS consists of network interface slot and analog voice interface slot. The analog voice interface slot is designed to support the analog line interface modules such as FXS for direct FAX machine Interface. The network interface slot supports the 2-Port Fast Ethernet interface and 2-Port Asynchronous interface Port for Console and Remote Access Management via Modem basically. Also, the network interface slot is designed to support various network environments such as ATM and Serial. This features help to protect the investment due to user network environment's changing.
In addition, VoiceFinder AP3220 VFBS is designed to have users the greatest satisfaction with remarkable price versus performance.

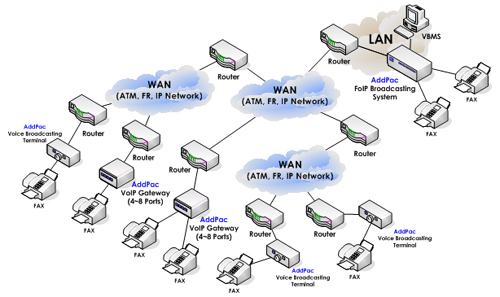

Network Diagram
High-end 64bit RISC Microprocessor Architecture
High-performance Network Modular Architecture
· One(1) Network
Interface Slot and One(1) Analog Voice Interface Slot
Supports VoIP FAX(T.38 Protocol) Broadcasting Management
feature
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
ITU-T H.323 Gateway, Gatekeeper Support
Security Functions
Standard & Extended IP Access List
IP packet filtering function
Enable/Disable for Specific Protocols
Multi-Level User Account Management
Auto-disconnect for Telnet/Console Sessions
Network Managements
Standard SNMP Agent (MIB v2) Support
Remote Management using Console, Rlogin, Telnet
Web based Management using HTTP Server Interface
Window based FAX Broadcasting features
Other Scalability Features
DHCP Server & Relay Functions
IP Accounting
Transparent Bridging (IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
