VoiceFinder AP2610 is a cutting edge VoIP gateway supporting maximum 4 ports of analog voice interface. Analog interface of AP2610 provides an optimized call scenario when it interoperates with analog PBX. In the aspects of adoptability and scalability, AP2610 delivers outstanding functions and performance.

Powerful Network · CPU Interface

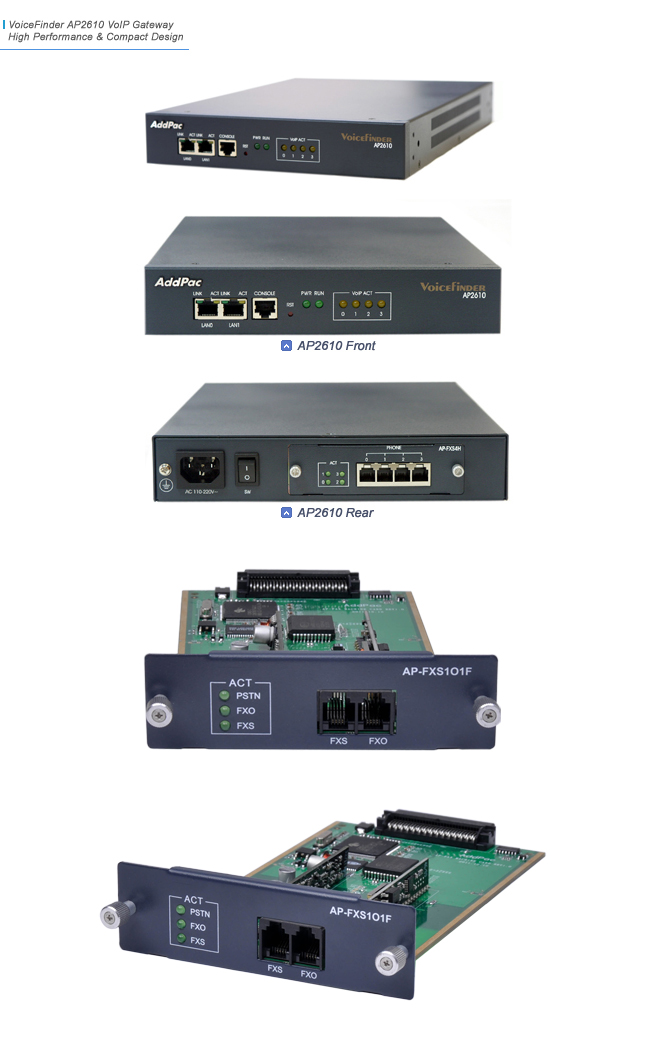

AP2610 is designed to provide high-performance service as a media gateway. It provides LEDs on the front panel indicating operational status of lines, LAN interfaces and CPU. Two(2) 10/100Mbps fast Ethernet ports and RS232C console interface are the basis for delivering various network services such as LAN-to-LAN routing, Bridge and NAT/PAT service etc.

High Quality Communication and Additional Services

Various VoIP gateway series of AddPac is approved for its high performance and reliability in world wide markets. AddPac provides highly advanced VoIP services in order to meet demanding and evolving business requirements of customers. Especially AP2610 has been developed through years of experiences and accumulated know-how from existing enterprises and communication markets. AP2610 provides concurrent triple stack such as H323, SIP, MGCP and QoS (Quality of Service) for high quality of communication service. This will satisfy customers with high expectation.

Flexible for Environmental Changes

AP2610 is designed to be flexible for environmental changes such as increasing flash, main memory size using SODIM type socket memory slot. So when configuring future applications such as IPv6, it is easy to access new features.

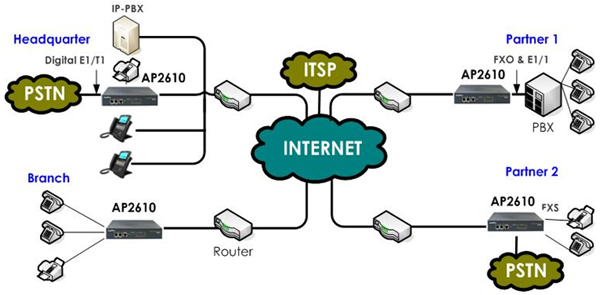

Network Diagram

	High performance PowerPC RISC Microprocessor Architectures
	High performance Network Modular Architecture

One(1) Voice Interface Slots VoIP 모듈 ① AP-FXS4 4-Port FXS Voice Processing Module (4 x RJ11) ② AP-FXO4 4-Port FXO Voice Processing Module (4 x RJ11) ③ AP-E&M4 4-Port E&M Voice Processing Module (4 x RJ11) ④ AP-FXS4H 　 4-Port FXS4H Voice Processing Module (4 x RJ11) ⑤ AP-FXO2S2 2-Port FXO & 2-Port FXS Voice Processing Module (4 x RJ11) ⑥ AP-FXS2P2 　 2-Port FXS Voice Interface & 2-Port PSTN Backup Interface Module(4 x RJ45) ⑦ AP-FXS3O1 3-Port FXS Voice Interface & 1-Port FXO Interface Module(4 x RJ11)

	Flash Memory : 4MB, SDRAM 32MB
	Analog voice interface module : FXS4, FXO4, FXS2O2, E&M4 etc.
	Flash Memory 4MB, SDRAM 32MB
	2-port 10/100Mbps Fast Ethernet interface
	SIP, H.323, MGCP concurrent triple stack
	Support Voice Processing Features - VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay - G.723.1,G.729A,G.711 Voice Compressions
	High-performance IP-Routing Capability with Reliability
	Static, RIP v1/2, OSPF v2 and IEEE 802.1Q VLAN Routing Protocols including VRRP
	Traffic Queuing, and SNMP MIB v2 for Network Management Features
	Standard & Extended Access List for Security Functions
	Essential Scalability Features such as DHCP Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/Diagnostics, etc. - DNSProxy Support - UPnP Support - MAC Address Filter Service
