VoiceFinder AP2620 is a next-generation VoIP Gateway delivering maximum 8 analog voice channels and up to 2 E1, 2 T1 voice channels to enterprises and public offices in a compact form factor. This new model realizes extended performance and higher adoptability by supporting various analog voice and digital E1, T1 modules.
Your Choice of Cost Effective and Highly Adaptable System
With the rapid introduction of broadband WAN service, wide range of traditional telephony service is now migrating to a converged network. The customers are required to pay more close attention while introducing VoIP Gateway which stands at the very front line of IP network migration. The key is selecting cost effective and feature-proved products with high adaptability. AP2620 facilitates flexible and incremental service with it modular structure.
Small in Size, Big in Performance

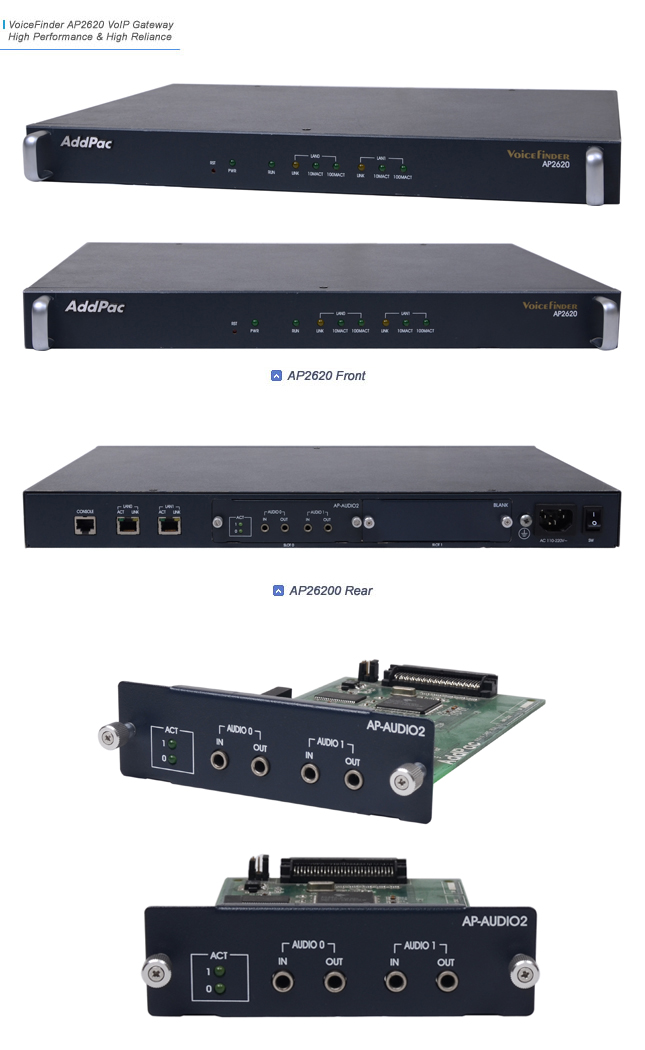

AP2620 is a feature-rich VoIP Gateway supporting either maximum 8 channels of analog voice or 2 digital E1, T1 voice channels. That is, customers are able to enjoy the small capacity VoIP service by installing various analog VoIP modules at the initial stage and easily meet the port augmentation demands by replacing to E1, T1 modules. Along with the QoS ensured VoIP telephony service, AP2620 offers IP broadcasting terminal service by installing broadcasting modules such as AP-AUDIO2. While saving investment, experience various VoIP/ BoIP services with its modular expansion options.
Supporting Two (2) 10/100Mbps Fast Ethernet Interface
AP2620 offers two (2) 10/100Mbps Fast Ethernet ports which ensure optimized VoIP service at NAT/PAT, VRRP and Router environment.
Enhanced QoS and Superior Scalability Services
AddPac's VoIP Gateway series have been highly appraised at both Koran and international markets and its lead in enterprise and carrier market reveals the advanced performance and stability. Moreover, AP2620 compares against competitive products in the market with its ample scalability services and AddPac's know-how which actively meet the communication needs of today's customers. In terms of VoIP call signaling protocol, AP2620 concurrently supports H323, SIP and MGCP signaling protocols. Not only general QoS algorithm, AP2620 supports the advanced QoS algorithms to maintain state-of-art voice quality on any types of conventional IP networks.
High performance PowerPC RISC Microprocessor Architectures
Analog voice interface module : FXS4, FXO4, FXS2O2, E&M4 etc.
Flash Memory 4MB, SDRAM 32MB
2-port 10/100Mbps Fast Ethernet interface
SIP, H.323, MGCP concurrent triple stack
Support Voice Processing Features
- VAD, DTMF,CNG,G.168, and T.38 G3 Fax Relay
- G.723.1,G.729A,G.711 Voice Compressions
High-performance IP-Routing Capability with Reliability
Static, RIP v1/2, OSPF v2 and IEEE 802.1Q VLAN Routing
Protocols including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server & Relay,
NAT/PAT, IEEE Transparent Bridging,
IP Accounting, and Debugging/Diagnostics, etc.
- DNSProxy Support
- UPnP Support
- MAC Address Filter Service
