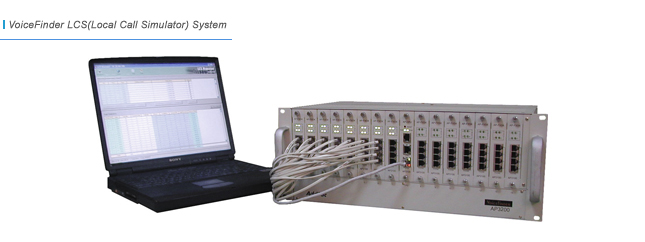

VoiceFinder LCS (Local Call Simulator) system provides high-performance voice over IP (VoIP) equipment testing solution for QC validation at mass production. The AddPac VoiceFinder LCS system consists of PC based LCS manager and AP3200 LCS embedded equipment . This LCS system supports the various testing scenario and analog voice interface modules such as FXS, FXO and E&M.

Moreover, the LCS system provides the statistics and analysis features about VoIP equipment testing results. Also, the window based GUI management schemes of a LCS manager helps the easy setup and control of AP3200 LCS equipment. This AP3200 LCS equipment typically was designed using high-performance PowerPC RISC microprocessor architecture with fixed network interface configuration: 2-Port 10/100Mbps Fast Ethernet, asynchronous serial port for console.

APOS Internetworking Software for AP VoIP Gateway

AddPac VoiceFinder Operating System(APOS) is a best VoIP and router software to provide scalability, reliability, stability, and QoS for internetworking solutions. APOS also provides optimized performance and industry standard network functionality with easy-to-use, easy-to-installation, and maintenance.

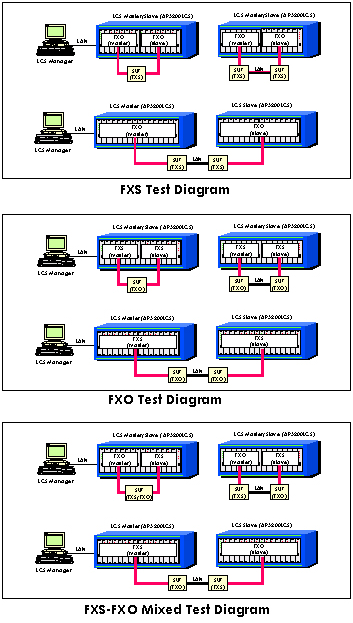

Network Diagram

	PowerPC RISC Microprocessor Architectures (AP3200 LCS)
	Fifteen(15) Voice Interface slot (AP3200 LCS)

Fifteen(15) Voice Interface Slot ① AP-FXS4 4-Port FXS Voice Processing Module (4 x RJ11) ② AP-FXO4 4-Port FXO Voice Processing Module (4 x RJ11) ③ AP-E&M4 4-Port E&M Voice Processing Module (4 x RJ11) ④ AP-FXS4H 4-Port FXSH Voice Processing Module (4 x RJ11) One(1) Network Interface Slot ① AP-CPU 2-Port 10/100Mbps Ethernet Interface(2 x RJ45)/ 1-Port Async Serial Interface Module

	Master(PC based LCS Manager) and Slave ( AP3200 LCS Equipment ) Architecture
	One(1) 10Mpbs Fast Ethernet for WAN and One(1) 10/100Mbps Fast Ethernet for LAN with Fifteen(15) Analog Integration Modules (AP3200 LCS)
	Quad(4) Channel FXS, FXO, and E&M Analog Modules (AP3200 LCS)
	Support maximum 60 channel simultaneous testing (AP3200 LCS)
	High-performance LCS (Local Call Simulator) System for VoIP Equipment Testing
	Various Test Configuration and Call Scenario for Local Call Simulation
	Microsoft Window based GUI Management System
	Call Setup and DTMF Test
	Call Statistics and Analysis Feature
