With the growth of business customers¡¯ needs for IP telephony and converged applications, the trends towards ¡®All IP¡¯ communication environment are becoming a reality keeping pace with the technological advance of next generation networking. IPNext200 IP-PBX delivers a new cost effective IP communication solution for ¡®All IP¡¯ environment as a core system of AddPac¡¯s comprehensive IP solution which features various end user terminal equipments such as AP-VP300 IP video phone and AP-IP200 IP phone etc.
The IPNext200 solution brings not only conventional PBX features but also an extended functionality of collaborative IP communication delivering audio broadcasting service. Designed on the foundation of high performance embedded RISC CPU, IPNext200 supports various VoIP modules and adopts the dual HDD system for hard disk redundancy (RAID1 configuration). It¡¯s ideal IP-PBX system for small and medium businesses taking a full advantage of new ¡®all-in-one¡¯ concept with voice call handling, data networking, and video/audio broadcasting integrated.
Table 1. Enhanced applications for IPNext200
Support not only various Call scenario such as Call Transfer, Call Forwarding including basic call functions but also Coloring service, Music on Hold, Three-way conference call, Voice Mail and IVR.
¡¤ AP-VP300 Video Phone ¡¤ AP-IP300 IP Phone ¡¤ AP-IP200 IP Phone ¡¤ User Agent
IP-PBX + Audio
real-time broadcasting Provide broadcasting service for financial offices, government offices and enterprises
¡¤ AddPac audio ¡¤ broadcasting server
Next Generation IP-PBX

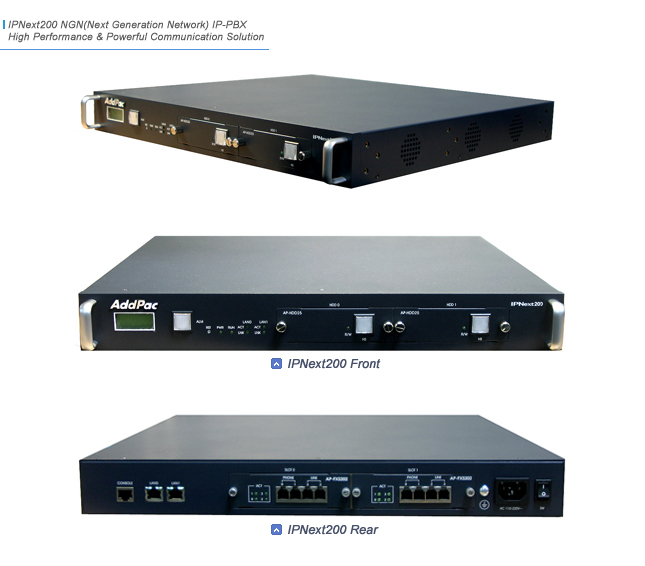

AddPac IPNext200 NGN(Next Generation Network) IP-PBX comes with two(2) 2.5 inch HDD module slot(RAID 1) at the front part of chassis. It also comes with two(2) VoIP interface module slot(4-port FXS, 4-port FXO, 4-port E&M, various broadcasting modules), two(2) 10/100Mbps fast ethernet port and console port at the rear part. Analog VoIP modules can be mounted on its VoIP module slot and it provides media gateway capability. It features a wide variety of call scenarios such as Basic Call, Coloring Service, Music on Hold, Blind Transfer, Call Pickup, Group Call Pickup, Consult Call, Switching Call, Consult Transfer, Call Waiting, Call Waiting Notify, Call Park, Call Pickup Remote, Hunt Group, supporting SIP, H.323 concurrently. In addition, 2.5 inch Dual IDE high capacity HDD for RAID 1 configuration is well-suited to the services which need sizable memory capacity such as Voice Mail ensuring the system consistency and the high availability
IVR function might be one of most important features for IP-PBX. IVR requirements from businesses are quite different according to their operational efficiencies. In order to meet their diverse demands, AddPac IP-PBX solution provides the IVR scenario editor and IVR function management tool to bring satisfaction for each business to maximize application productivity by helping them to design and operate their own Call scenario.
Firmware Upgradeable Architecture
Designed on programmable high performance RISC CPU and DSP, IPNext200 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. New firmware for AddPac IP-PBX solution components such as video phone, IP phone, User Agent tool can be downloaded from not only web page but also IPNext IP-PBX. IPNext¡¯s software version upgrade system adopts top-down approach and provides IP-PBX system administrators with easy-to-use and efficient methods to achieve the overall management.
Outstanding Network Service Capability
IPNext200 is an integrated, feature-rich network equipment delivering routing, NAT/PAT, DHCP Server/Relay, Public IP sharing, VRRP and QoS. In today's mixed network of xDSL, Cable, FTTH, Metro Ethernet, Metro ATM, Leased line and dynamic IP environment, not only the ample network service features, but also high-end QoS(Quality of Service) and security features are requested. Based on two(2) 10/100Mbps Fast Ethernet ports, IPNext200 offers integrated network and security service of LAN-to-LAN routing, bridge and NAT/PAT.
Audio/Video Privacy Protection
IPNext brings the network security of 'Standard & Extended IP Access List' and service security as well. It supports the security features enhanced by VPN, Secure RTP function as well as data security and voice/video secure call functions for complete privacy protection.

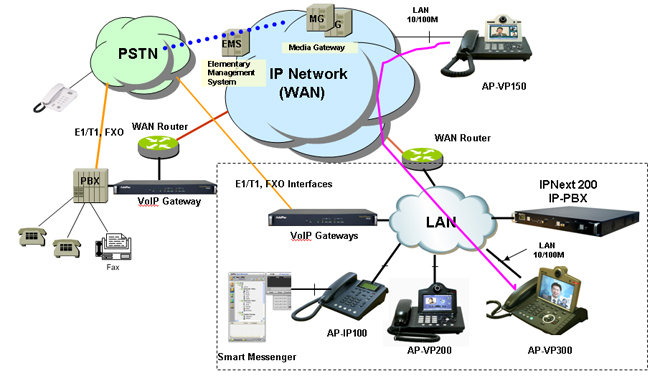

AddPac IP-PBX Total Solution
As ¡®All IP¡¯ multimedia telephony environment is becoming a reality with advanced next generation networking technology; there is now critical demand of optimal integration of the solutions. AddPac Technology offers a range of solution covering VoIP and Media gateway, audio/video terminal equipments, PoE Ethernet switch, Independent audio/video MCU, IP audio/video broadcasting and VoD solution, Network DVR, Audio/video recording solution, Traffic controller, QoS equipment to meet customers¡¯ various communication requirements, so you can best optimize your network environment to maximize benefit from convergence of multimedia communication.
AddPac's various VoIP gateway series, multi service routers and comprehensive family of cutting-edge solutions have delivered high performance and stability to maximize customer satisfaction throughout the world. They provide high level of flexibility and scalability for each organization to find the solution that best fits their application needs and budget. With years of experience and industry-leading technology, AddPac provides IPNext200 with which customers can best optimize high performance, market strategy and budget for next-generation communication solution.
High performance RISC Microprocessor structure
Flash Memory 16MByte, SDRAM 64/128MByte
Two(2) 2.5 Inch Hard Disk Module Slots for RAID1 Configuration
Hot-Swap 2.5 Inch IDE HDD Module
Two(2) VoIP Module Slots for FXS, FXO, E&M,
