VoiceFinder AP1100 VoIP Gateway provides high-performance voice over IP(VoIP) solution including IP-routing services for small enterprise, government and other public offices as well as Internet game room and Internet based cyber apartment. Moreover, the AP1100 VoIP gateway maintains best voice quality under not only high bandwidth traffic but also low bandwidth traffic using the latest voice compression algorithm and enhanced QoS management features of AddPac Technologies.
In addition, AP1100 VoIP Gateway can be used in various network environments such as leased line, ADSL, HomePNA, and Cable Modem networking with fixed IP and dynamic IP environments. And VoiceFinder AP1100 VoIP Gateway supports various network protocols such as IP-routing, bridging, PPP, NAT/PAT, and network management features such as SNMP MIB v2, Cisco-style CLI, Web, etc. This VoIP gateway typically was designed using high-performance 32bit RISC microprocessor based architecture with fixed network interface configuration : dual 10Mbps Ethernet, asynchronous serial port for console, and optional HomePNA interface.
APOS Internetworking Software for AP VoIP Gateway
AddPac VoiceFinder Operating System(APOS) is a best VoIP and router software to provide scalability, reliability, stability, and QoS for internetworking solutions. APOS also provides optimized performance and industry standard network functionality with easy-to-use, easy-to-installation, and maintenance.

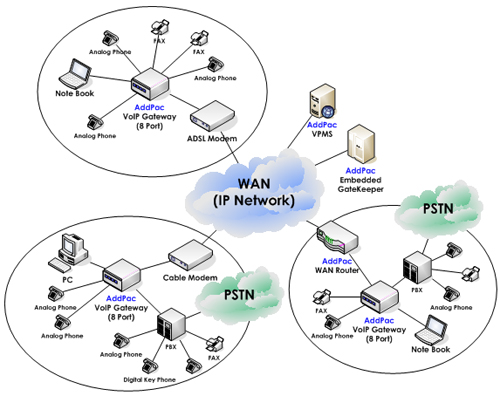

Network Diagram
Powerful 32bit RISC Microprocessor Architectures
Fixed Dual 10Mbps Ethernet Interfaces
Up to Octal(8) FXS, FXO Voice Interfaces
Standard High-performance VoIP Gateway for Voice Networking
Applications
Multi-protocol Routing Solutions between WAN and LAN Access
with H.323 based VoIP Protocol
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261 (or RFC2543)
Supports Triple stack of H.323, SIP and MGCP
AddPac APOS Internetworking Software to provide Scalability,
Functionality, Stability, and QoS Control for AddPac VoIP Gateway
High-performance IP-Routing Capability with Reliability
Static, Default IP-Routing and IEEE 802.1Q VLAN Routing
Protocols
High-performance IP-Routing Capability with Reliability
Point to Point Protocol for ADSL based Broadband Network
Enhanced QoS Managements for Voice Traffic
SNMP MIB v2 for Network Management Features
Essential Scalability Features such as DHCP Server & Relay,
NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/
Diagnostics, etc.
Remote Software Upgrade using FTP & TFTP
Graceful Compact Enclosure Design with beautiful color
Microprocessor
¡¤ CPU
32bit RISC Microprocessor
Memory
¡¤ Flash Memory
64Mbyte
¡¤ Main Memory
64Mbyte High-Speed SDRAM
¡¤ Boot Memory
512Kbyte Flash Memory
Network Interface
¡¤ Fixed WAN Port
1-Port 10Mbps Ethernet
¡¤ Fixed LAN Port
1-Port 10Mbps Ethernet
¡¤ Console Port
One(1) RS-232C Interface
¡¤ Optional Fixed HomePNA Port
One(1) HomePNA Interface
Voice Interface
¡¤ Fxs Voice Module
Up to 8 Port FXS Voice Channels
¡¤ Fxo Voice Module
Up to 4 Port FXO Voice Channels
Power & Operation Environments
¡¤ Power Requirement
VAC 110~220V, 50/60Hz, 25Watt
¡¤ Operating Temperature
0¡ÆC to +50¡ÆC (32¡Æ to 122¡ÆF)
¡¤ Storage Temperature
-40¡ÆC to +85¡ÆC (-40¡Æ to 185¡ÆF)
¡¤ Relative Humidity
5% to 95% (Non-condensing)
Dimension
¡¤ H x W x D (mm)
50mm x 210mm x 210mm
¡¤ Weight (g)
800g
IP Routing Protocols
Static and IEEE 802.1Q VLAN Routing
WAN Protocols
Point-to-Point Ptotocol(PPP) over Ethernet for ADSL
Networking(PPPoE)
Voice over IP Service
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261(or RFC2543)
Supports Triple stack of H.323, SIP and MGCP
G.723.1, G.729.A, G.711 Voice Compressions
Voice Processing Features Supports
¡æ VAD, DTMF, CNG, G.168 and T.38 G3 FAX Relay
ITU-T H.323 Gateway, Gatekeeper Support
Enhanced QoS Management Features for Voice Traffics
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other
Scalability
Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
