VoiceFinder AP300 VoIP Gateway provides high-performance voice over IP(VoIP) solution including IP-routing services for small enterprise, and other public offices as well as Internet game room and Internet based cyber apartment. Moreover, VoiceFinder AP300 VoIP Gateway maintains best voice quality under not only high bandwidth traffic but also low bandwidth traffic using the latest voice compression algorithm and enhanced QoS management features of AddPac Technologies.
In addition, VoiceFinder AP300 VoIP Gateway can be used in various network environments such as leased line, VDSL, ADSL, and Cable Modem networking with fixed IP and dynamic IP environments. And VoiceFinder AP300 supports various network protocols such as IP-routing, bridging, PPP, NAT/PAT, and network management features such as SNMP MIB v2, Cisco-style CLI, Web, etc. This VoIP gateway typically was designed using high-performance 64bit RISC microprocessor based architecture with fixed network interface configuration :

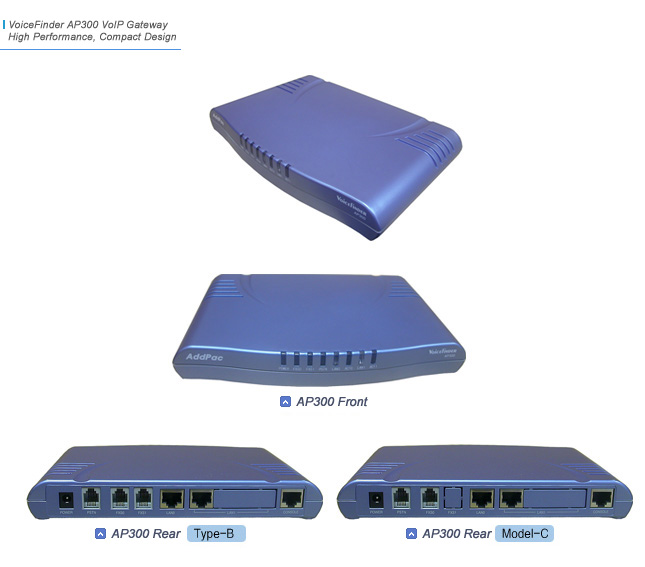

AP300 Type - B
2-Port FXS Voice Interfaces for VoIP Service 1-Port PSTN Back-up Service 2-Port 10/100BaseT Fast Ethernet Interface for LAN & WAN Interfaces 1-Port RS-232C Console Port
AP300 Type - C
1-Port FXS Voice Interfaces for VoIP Service 1-Port PSTN Back-up Service 2-Port 10/100BaseT Fast Ethernet Interface for LAN & WAN Interfaces 1-Port RS-232C Console Port
APOS Internetworking Software for AP VoIP Gateway
AddPac VoiceFinder Operating System(APOS) is a best VoIP and router software to provide scalability, reliability, stability, and QoS for internetworking solutions. APOS also provides optimized performance and industry standard network functionality with easy-to-use, easy-to-installation, and maintenance.

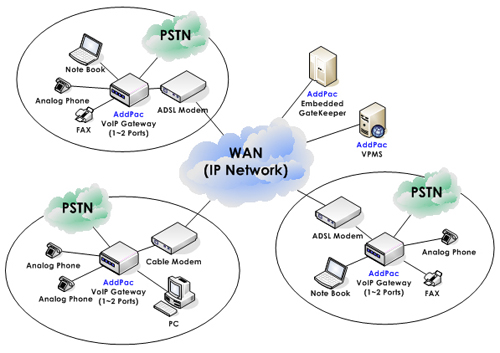

Network Diagram
Powerful 64bit RISC Microprocessor Architectures
¡¡
Type - B
- Fixed Dual 10/100BaseT Fast Ethernet Interfaces
- High-performance Dual(2) FXS Voice Interfaces
¡¡
Type - C
- Fixed Dual 10/100BaseT Fast Ethernet Interfaces
- High-performance One(1) FXS Voice Interfaces
One(1) PSTN Back Up Port
Standard High-performance VoIP Gateway for Voice Networking
Applications
Multi-protocol Routing Solutions between WAN and LAN Access
with H.323 based VoIP Protocol
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261 (or RFC2543)
Supports Triple stack of H.323, SIP and MGCP
AddPac APOS Internetworking Software to provide Scalability,
Functionality, Stability, and QoS Control for AddPac VoIP Gateway
High-performance IP-Routing Capability with Reliability
Static, Default IP-Routing and IEEE 802.1Q VLAN Routing
Protocols
Point to Point Protocol over Ethernet(PPPoE) for VDSL and
ADSL based Broadband Network
Enhanced QoS Managements for Voice Traffic
SNMP MIB v2 for Network Management Features
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server & Relay,
NAT/PAT, IEEE Transparent Bridging, IP Accounting, and Debugging/
Diagnostics, etc.
Remote Software Upgrade using FTP & TFTP
Graceful Compact Enclosure Design with beautiful color
Microprocessor
CPU
64bit RISC Microprocessor
Memory
Flash Memory
2Mbyte
Main Memory
32Mbyte High-Speed SDRAM
Boot Memory
512Kbyte Flash Memory
Network Interface
LAN Port (Type - B,C)
Two(2) 10/100BaseT Fast Ethernet Interface (2 x RJ45)
Console Port
One(1) RS-232C Interface (RJ45)
Voice Interface
FXS Voice Interface (Type - B)
Two(2) FXS Voice Interface (2 x RJ11)
FXS Voice Interface (Type - C)
One(1) FXS Voice Interface (RJ11)
PSTN Back up Interface
One(1) PSTN Back up Interface (RJ11)
Power & Operation Environments
Power Requirement
External Power Adaptor / VAC 110~220V, 50/60Hz, 10Watt
Operating Temperature
0¡ÆC to +50¡ÆC (32¡Æ to 122¡ÆF)
Storage Temperature
-40¡ÆC to +85¡ÆC (-40¡Æ to 185¡ÆF)
Relative Humidity
5% to 95% (Non-condensing)
Dimension
H x W x D (mm)
¡¡
26mm x 200mm x 137mm
Weight (g)
400g
IP Routing Protocols
Static and IEEE 802.1Q VLAN Routing
WAN Protocols
Point-to-Point Protocol over Ethernet(PPPoE) for VDSL and
ADSL Networking
Voice over IP Services
ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security
Feature
SIP protocol support compliant with IETF RFC3261(or RFC2543)
Supports Triple stack of H.323, SIP and MGCP
G.723.1, G.729.A, G.711 Voice Compressions
Voice Processing Features Supports
- VAD, DTMF, CNG, G.168, and T.38 G3 FAX Relay
ITU-T H.323 Gateway, Gatekeeper Support
Enhanced QoS Management Features for Voice Traffics
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
