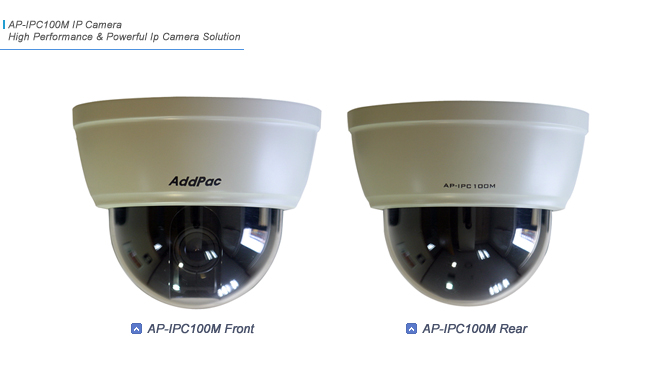

AP-IPC100M IP camera is DSP based next generation all-in-one video encoding device. It is composed of verifocal camera lens, 1-port 10/100Mbps Ethernet interface, 1-port audio input/output interface, 2-ports Alarm & 1-port relay port, and PoE (Power over Ethernet). It is applicable to various video application fields in real time.

The popularity of IP based network DVR has been increasing as much as high interest in IP network based high performance video communication. IP camera solution which supports the Installation and Location Free function is hard to approach due to the high cost of introduction. A whole new world of all-in-one camera IP video encoding is unfolded

AddPac AP-IPC100M interworks with various WAN environments such as internet, metro Ethernet, and leased line. It is applicable to video surveillance, monitoring, environment surveillance, and disaster prevention. Especially, AP-IPC110M is compatible with various AddPac video solutions such as multichannel network DVR solution so that user may build an efficient video telecommunication depending on the application range or application field.

Firmware Upgradeable DSP based HW Codec

AP-IPC100M camera supports H.263, MPEG-4 video codec and voice codec supports G.711, G.726 as well as audio/video encoding concurrently. DSP is a programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification is required, just directly download from the homepage or setting an auto upgrade option. You may use the latest features without much effort.

Process 30 Frames of VGA Image per Second

AP-IPC100M processes the 30 frames of VGA (640x480) image per second based on MPEG-4 compression standard. A user may specify the frame rate, proper bit rate depending on network status. It can support D1 level of video resolution in case of using CCD camera sensor and select video resolution in accordance with the network bandwidth such VGA, QVGA, 4CIF, CIF, QCIF.

Enhanced Remote Management Capabilities

The remote control capability makes possible to secure the stability of AP-IPC100M through telnet, ftp for device status inspection, function setup, and software upgrade. An additional GUI based management system is provided for multi number of AP-API100M operating environment in several places. It examines the AP-API100M operating condition as well as sending audio to the desire place.

Multichannel DVR Function

AP-IPC100M has audio input/output port and video encoding. A received audio and video are transmitted / saved in AddPac network DVR server in real time. An administrator can watch through monitor. It is applicable to unattended duty, environment surveillance, and disaster prevention. You may compose all communication environments in one device by combining with interphone function and video monitoring function.

IP Voice Broadcasting Function

AP-IPC100M supports audio output. It may be used as IP based voice broadcasting terminal with amp speaker. If it is interconnected with IP voice broadcasting solution such as AP3150, MMBS S/W Manager, Etc), it performs various broadcasting function such as announcement broadcasting, music broadcasting. If it is interconnected with IP telephony solutions such as IP-PBX, IP terminal, etc, it can perform the IP voice broadcasting function by simply entering the phone number through IP video phone and telephone.

Embedded VoIP Signaling

AP-IPC100M is designed to perform the IP video telephone function which is lack of display function by installing the VoIP signal function. It can be composed as general telephone with phone number registration. For example, user may monitor the IP camera screen with direct connection of IP-PBX dialing. User may build various application services with VoIP signaling.

Multi User Access Function

AddPac IP camera supports user access limit function, access time limit in case of watching IP camera video by various people. It supports AddPac Video On Demand Router solution outside in case of concurrent access by hundreds of people. AddPac Video On Demand supports multichannel gigabit Ethernet for Video Casting solution and uses as Large Scale IP camera monitoring solution.

Network Diagram
