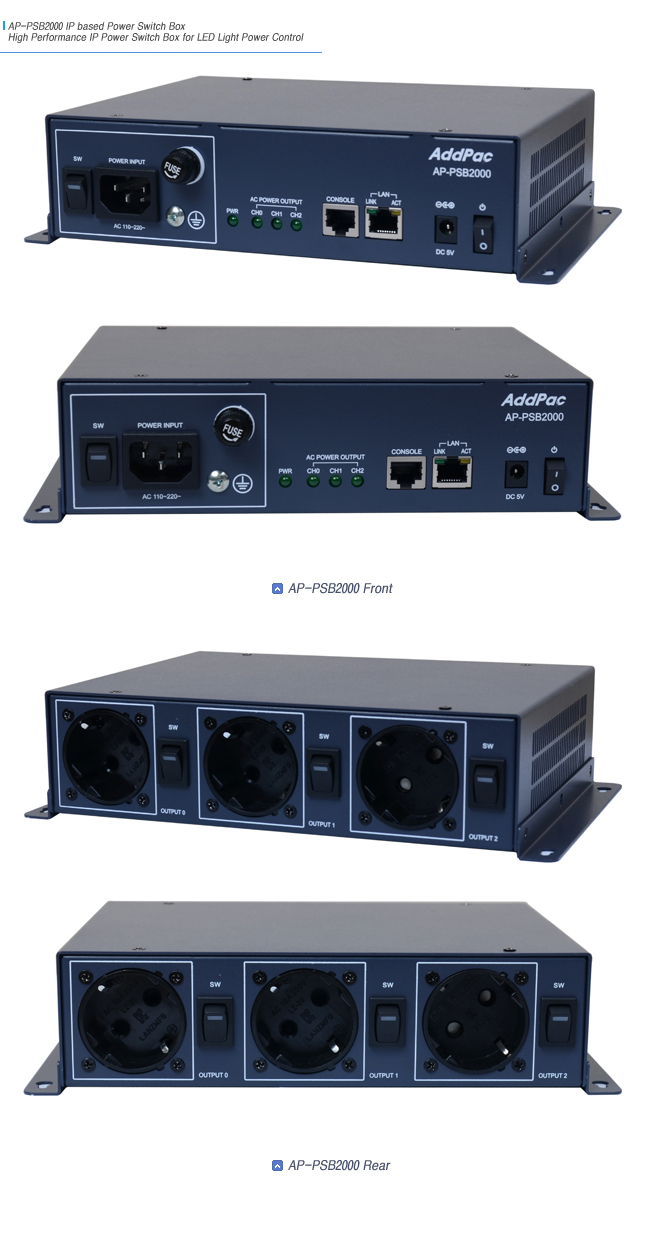

AP-PSB2000 Remote IP Power Switching Box for LED Light OnOff Control
AP-PSB2000 is IP based remote LED power On/Off controller for CCTV camera at night time. AP-PSB2000 IP based power switch box controls light which installed with CCTV camera remotely. AP-PSB2000 is designed based on IP based network so, it is highly scalable and convenient for remote management. It can be applied to integrated security management solution with CCTV solution for unmanned facilities.
Firmware Upgrade Structure
AP-PSB2000 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
IP based Remote Management
AP-PSB2000 IP based remote LED power On/Off controller is embedded with Smart Web Manager for system management. User may setup/manage AP-PSB2000 system through PC, smart phone, and tablet device.
AddPac products are well recognized in terms of performance and stability in the world. With our accumulated experience in enterprise market and communication market, AP-PSB2000 system will satisfy the needs of customer along with AddPac Integrated Security Management System solution.

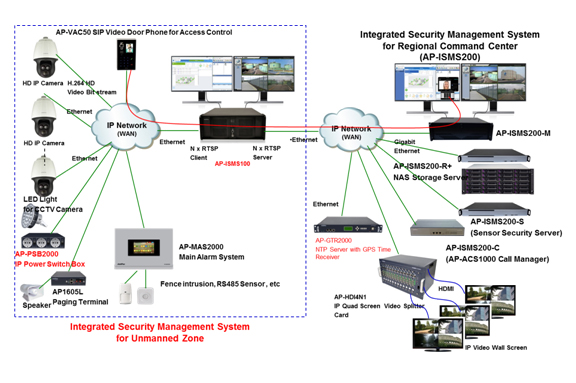

Network Diagram
Microprocessor
32bit RISC Microprocessor
Memory
Flash Memory
4MB
Main Memory
16MB
Network Interface Module
1-Port 10/100Mbps Fast Ethernet Interface (1x RJ45)
1-PortRS232CAsynchronous Serial Interface (1 x RJ45 )
AC Power Input
One(1) AC Power Input, Fuse, On/Off Switch
AC Power Output
Three(3) AC Power Output, Power On/Off Switch with Status LED
