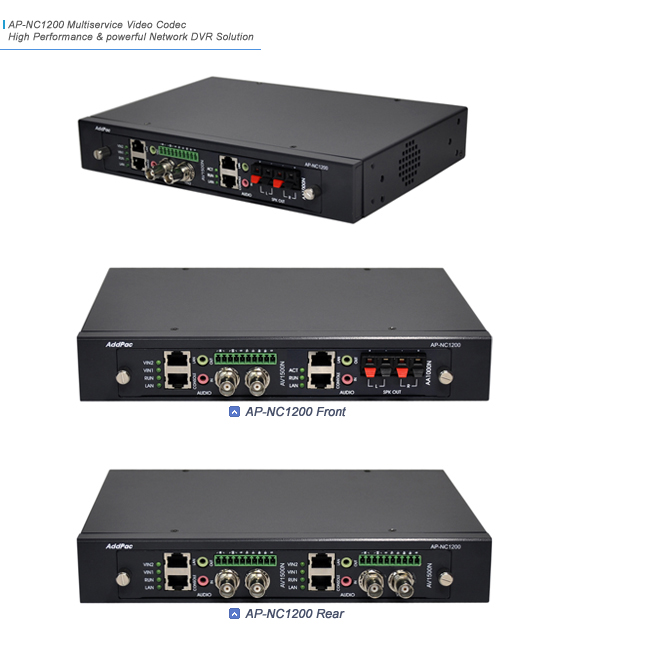

AP-NC1200 multi-service video codec is a next generation high performance multi-channel encoder based on DSP and installs 2 video/audio/control modules. It is applicable to real time video transmission field such as video surveillance, traffic control, and environment surveillance based on H.264.
The popularity of IP based network DVR has been increasing as much as high interest in IP network based high performance video equipment. It is applicable to video surveillance, traffic control, environment surveillance, and port surveillance by combining with various WAN environments such as xDSLfast internet, leased line, metro Ethernet. AP-NC1200 can be interworked with DVR solutionso that you may build an efficient NDVR communication environment in accordance with the range of application or the range of field.
Firmware Upgradeable DSP based HW codec
AP-NC1200 video codec module supports audio/video encoding concurrently based on the latest codec H.264. DSP based H/W architecture of AP-NC1200 is a programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification isrequired, just directly download from the homepage or setting an auto upgrade option.You may use the latest features without much effort.
Support Various A/V module for Multi-Service
AP-NC1200 multi-service video codec is designed to support various multi services such as D1 video encoder module, HD video encoder module (HD-SDI), built-in amplifier audio broadcasting module, subtitle module, and PAN/TILT control module. Especially, video encoder function, audio broadcasting function, supplementaryfunction is designed on the basis of module type so that it is deal with various user environments.
Enhanced Remote Management Capabilities
AP-NC1200 video modules operate independently for securing the stability of device via telnet or FTP. The remote control capability makes possible for device status inspection, function setup, and software upgrade. An additional GUI based management system is provided for numerous AP-NC1200 operating environment in several places. It examines the AP-NC1200 operating condition as well as sending audio to the desire place.
Various Application Field
AddPac’s high performance DSP based H.264, MPEG-4 video codec eliminates the range of applications limit for AP-NC1200 such as high quality video surveillance, traffic control, environment surveillance, and disaster prevention.

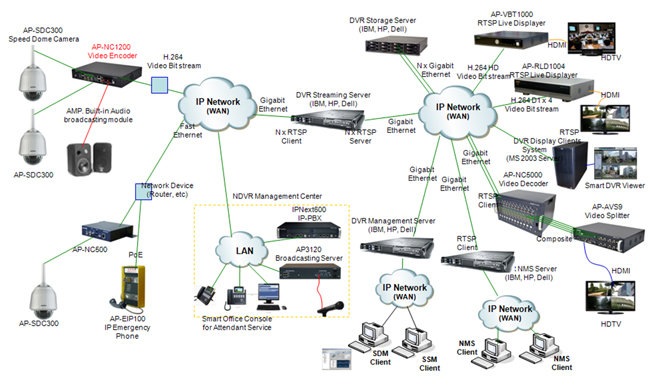

D1, HD quality surveillance: AP-NC1200 supports two module slots. It supports built-in amplifier voice broadcasting module, D1 video encoder module or HD video encoder module concurrently. Audio/Video contentsare delivered to the AddPac network DVR in real-time. An operator can perform real time surveillance through monitors. This system is applicable to unattended security, traffic control, environment surveillance, and disaster prevention to enable the operator for immediate response when the event occurs.
IP based real time video surveillance
Support two multi service module slots
Various video codec module (D1, HD module)
D1 (NTSC, PAL), HD (HD-SDI) video subtitle
IP voice broadcastingmodule(Built-in AMP.)
Programmable high performance DSP based
hardware video codec
Programmable high performance DSP based
voice broadcasting hardware module
High performance RISC CPU and RTOS based
High Performance QoS function support for
multi-site audio/video transmission
Integrate structure to support network
surveillance and audio broadcasting
Codec: G.711, G726
Interface: Stereo audio input port
Stereo audio output port
IGMP supporting for Multicast Audio Broadcasting Service
Multilevel QoS Support including AddPac Specialized QoS
High-performance IP-Routing Capability with Reliability
Static Routing and IEEE 802.1Q VLAN Routing Protocols
Traffic Queuing, and SNMP MIB v2 for Network Management
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server &
Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and
DNSProxy, MAC Address Filter Service
Two(2) Module Slots for Multiservice NDVR Application
AV1500N Two(2) Channel D1 Video Encoder Module
AV1200N One(1) Channel D1 Video Encoder Module
AV1600N One(1) Channel HD Video Encoder Module
AA1000N AMP. Built-In Audio Broadcasting Module
AS1000N Analog Subtitle Generator Module
Power & Operation Environments
External Power Adaptor, DC24V 2.7A
0°C to + 50°C (32° to 122°F)
-40°C to + 85°C (-40° to 176°F)
5% to 95% (Non-condensing)
H x W x D(mm)
43mm x 260mm x 180mm
Static and IEEE 802.1Q VLAN Routing
Point-to-Point Protocol (PPPoE for ADSL), etc.
HD : Up to 30fps, 720P(1280 x 720) Image Resolution, H.264
D1 : Up to 30fps, NSTC(720x480), PAL Mode, H.264
Dual Bit Stream
D1: (D1, CIF)
HD : (720P HD, D1)
256Kbps ~ Several Mbps
Audio Service & Signaling Protocol
- G.711 & G.726 for Voice Quality Audio Service
Enhanced QoS Management Features for Audio/Video Traffics
