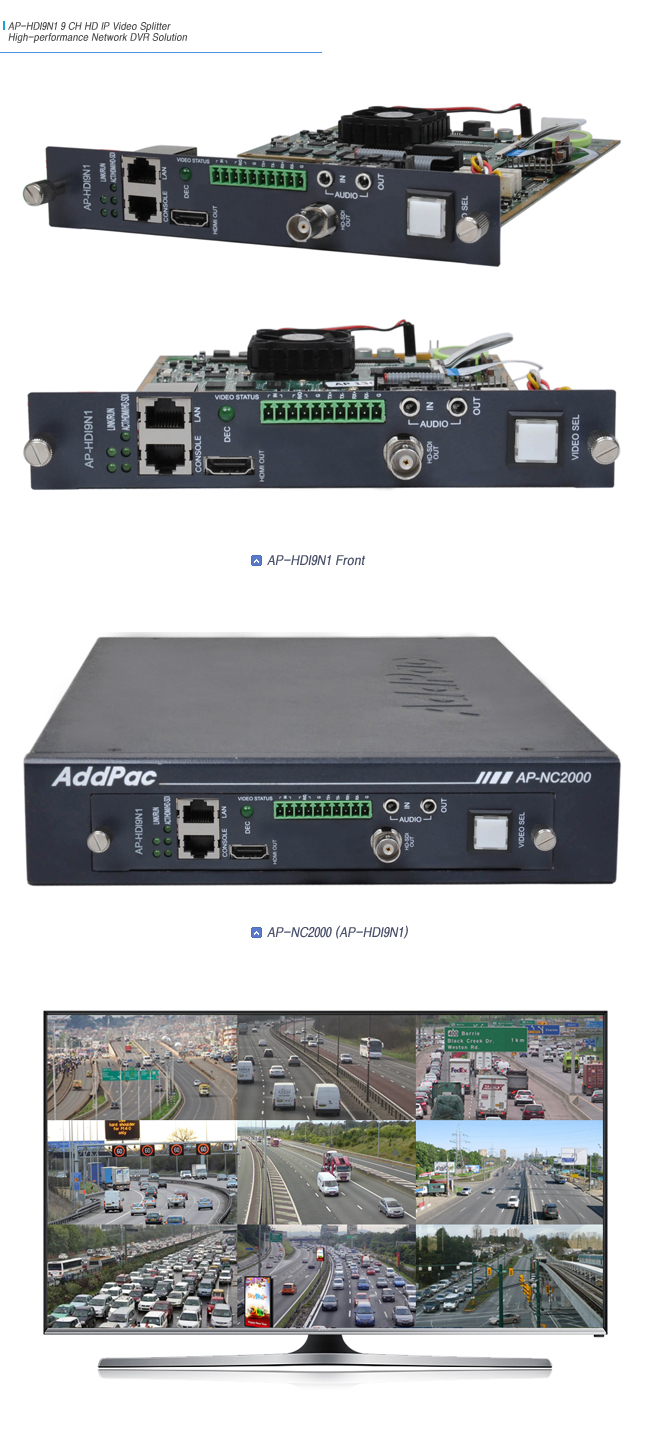

AP-HDI9N1 nine(9) channel HD IP video splitter is a DSP based next generation high performance 9 channelHDTV screen splitter. It can accept RTSP based H.264 video bit-streaminput up to 4 channels and 4channel full HD video decoding, downscaling and display 9 video split screens on HDTV through HDMI, HD-SDI output interface. It can display high resolution HD video by connecting to an HDTV. It is applicable to various real time video applications such as surveillance, traffic control, environment control, and disaster prevention.
The popularity of IP based network DVR video device has been increasing as much as high interest in IP network based high performance video communication. AddPac AP-HDI9N1 IP 9 channel video splitter is applicable to video surveillance, traffic control, environment surveillance, and disaster prevention. AP-HDI9N1 is compatible with various RTSP basedH.264 video encoder so that you may build an efficient HD video display environment in accordance with the range of application or the range of field.
Nine(9) Channel HD IP Video Splitter Function

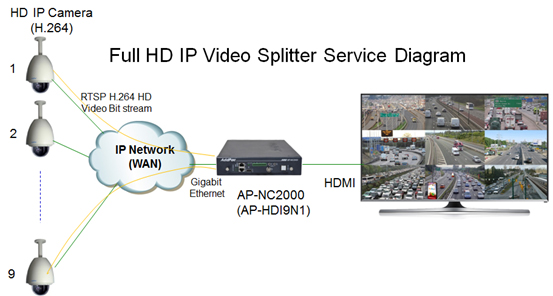

AP-HDI9N1 9 channel HD IP video splitterprovides video display on HDTV by dividing IP based HD input video into 1/9 screen size. HD video input supports RTSP based HD H.264 video bit-stream format. Video output provides HDMI, HD-SDI interface to directly connect to HDTV.
Firmware Upgradeable DSP based 9 Channel IP Video Splitter
AP-HDI9N1 9 channelHD IP video splitter provides a DSP based programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification isrequired, just directly download from the homepage or setting an auto upgrade option.You may use the latest features without much effort.
Enhanced Remote Management Capabilities
AP-HDI9N1 9 channel HD IP video splitter device makes possible to secure the stability of device via telnet or FTP for device status inspection, function setup, and software upgrade. Also, web based AP-HDI9N1 device management software is provided for numerous operating environment.
