AP-GTR1000 IPbased GPS time receiver terminal transmits GPS time information to network based application server which requires accurate time information. Legacy GPS Time Receiver products only support RS232C Interface but AddPac AP-GTR1000 supports fast Ethernet port as well as dual RS232 interface for backward compatibility.
AP-GTR1000 IP-based GPS time receiver terminal is easy to manage remotely and provides excellent scalability. This device can be applied to various real-time video applications such as video surveillance, traffic management and monitoring for disaster prevention
IP based GPS Time Receiver Terminal

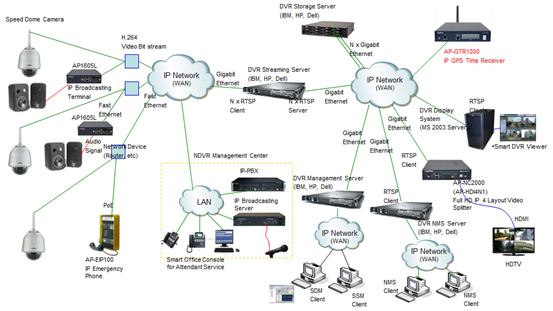

AP-GTR1000 IPbased GPS time receiver terminal transmits GPS time information to network based application server which requires accurate time information via ethernet port. In local area network, this device transmits GPS based time information to application server like as CCTV recording serverby using IP based protocol.
Without GPS based time synchronization or NTP server, if time is passed after installation or in service, each application server’s time clock is mismatched comparing with GPS based real-time. Especially, in case of CCTV application, time mismatching should be solved between real-time and CCTV application server’s current time.
AP-GTR1000 provides easy system cabling and Installation service by using LAN interface. Also, AP-GTR1000 provides third party’s example API for Window or Linux application developer.

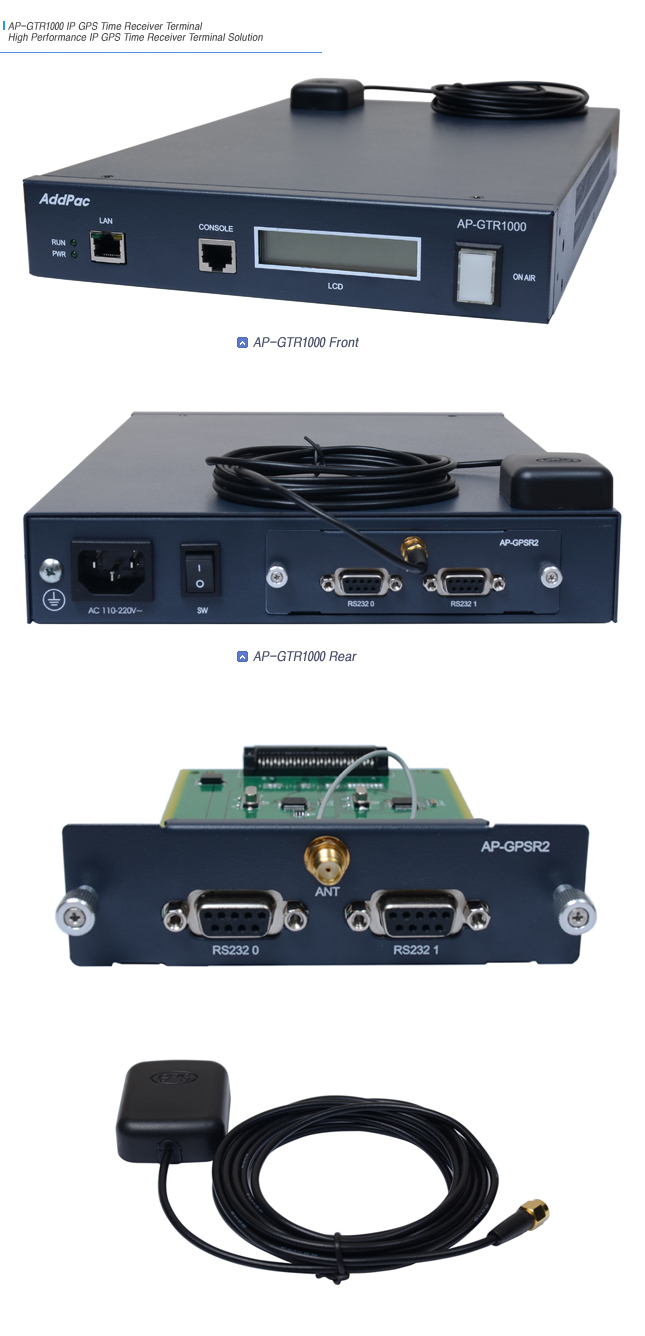

In front of AP-GTR1000, there are LCD display for GPS time information and blue LAMP for device status. Also, there are one fast Ethernet port and console port.At the rear of AP-GTR1000, there is one module slot for AP-GPSR2 module. AP-GPSR2 module provides dual DB-9 RS232 interface port and GPS antenna interface port.
Firmware Upgradeable Structure
AP-GTR1000 RISC CPU is programmable structure so that user may use the latest features without much effort by simply setting an auto upgrade option or download from the homepage.
Smart Web Manager Function
AP-GTR1000 GPS Time Receiver is embedded with Smart Web Manager for system management. User may setup/manage AP-GTR1000 system through PC, smart phone, and tablet device.
AddPacnetwork products are well recognized in terms of performance and stability in the world. With our accumulated experience in enterprise market and communication market, AP-GTR1000 will satisfy the needs of customer along with AddPacnetwork DVR solution.
32bit RISC Microprocessor
Network Interface Module
1-Port 10/100Mbps Fast Ethernet Interface (1 x
1-Port Asynchronous Serial Interface (1 x RJ45 )
GPS Module, GPS Antenna, DB-9 RS232 Dual
One(1) RS-232C Interface
VAC 110~220V , 50/60Hz, 5V 5A
0°C to + 50°C (32° to 122°F)
-40°C ~ +85°C (-40° ~ +185°F)
5% to 95% (Non-condensing)
H x W x D (mm)
43mm x 223mm x 330mm
Standard & Extended IP Access List
Enable/Disable for Specific Protocols
Multi-Level User Account Management
Auto-disconnect for Telnet/Console Sessions
Standard SNMP Agent (MIB v2) Support
Remote Management using Console, Rlogin, Telnet
Web based Managements using HTTP Server Interface
Other Scalability Features
DHCP Server & Relay Functions
Transparent Bridging (IEEE Standard) Function
→ Spanning Tree Bridging Protocol Support
→ Remote Bridging Support
→ Concurrent Routing and Bridging Support
