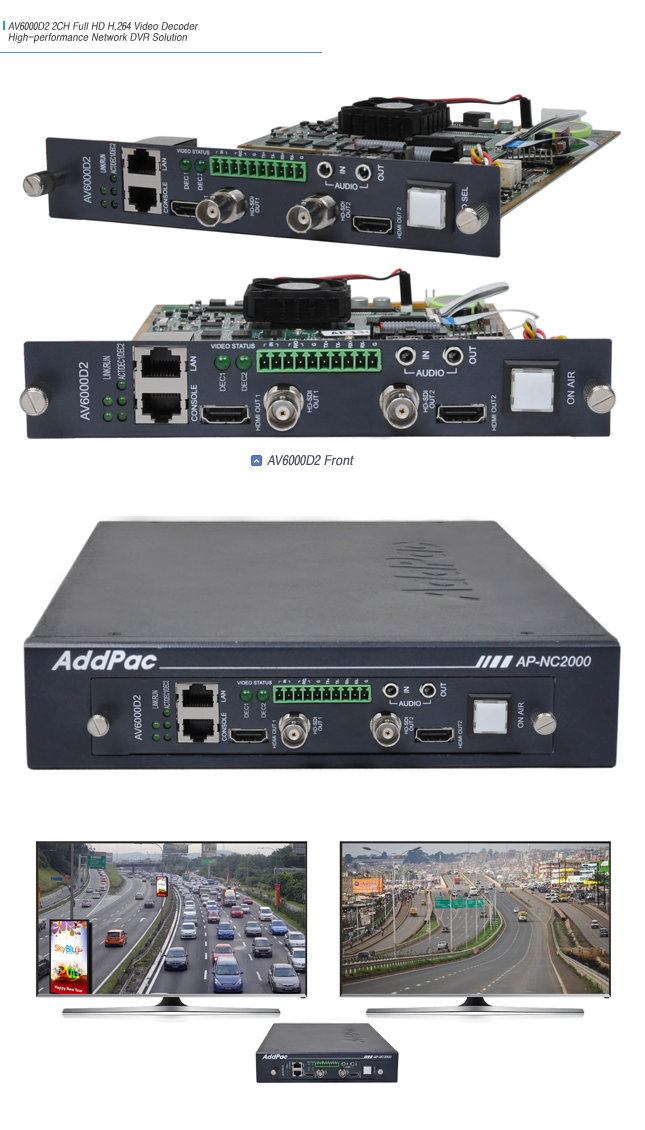

Two(2) Channel Full HD Video Decoder Module AV6000D2
AV6000D2 two(2) channel Full HD video decoder module supports Full HD level high quality network based video surveillance service. AV6000D2 video codec module can be installed into AddPac network CCTV solution such as AP-NC2000, AP-NC3000, and AP-NC5000 multi-channel CCTV video codec H/W platform. AP-NC2000, AP-NC3000, and AP-NC5000 HD network video systems are DSP based high performance multi-channel HD video system which can install 1, 2, 10 video module slots. H.264 based high quality HD/Full HD image is applicable to surveillance, traffic control, and etc.
AV6000D2 two(2) channel Full HD video decoder module processes the 30 frames of 1080p, 720P(1280x720), D1(720X480), CIF (325X288) images per second based on H.264 compressed codec standard in real time. A user may setup an appropriate frame rate and bit rate in accordance with quadruple video encoding function and network status.
Full HD video decoder module of AV6000D2 supports HD-SDI, HDMI, and interwork with RS232C, RS422, and RS485 interfaces for PAN/TILT/Zoom camera remote control. Also, it supports gigabit ethernet interface and is designed to fit for next generation network environment. RTSP/RTP based transmission protocol and management function with Smart Web Manager can be main advantage of AV6000D module.

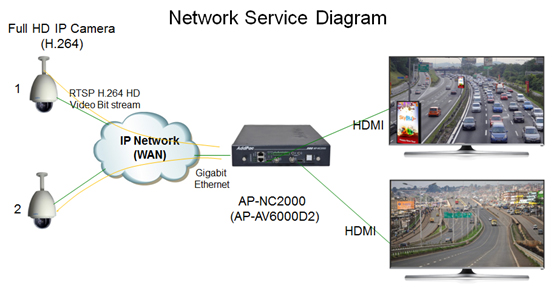

For real time CCTV video surveillance, AddPac AP-NSPP (Network Surveillance Provision Platform) high performance network video surveillance service solution is suitable and it opens a whole new world of high quality video image based on our performance and stability.
