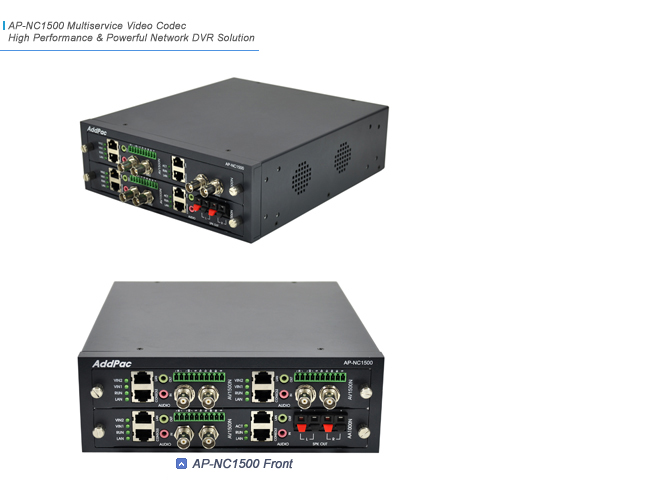

AP-NC1500 multi service video codec is a next generation high performance multi-channel encoder based on DSP and installs 4 video/audio/control modules. It is applicable to real time video transmission field such as video surveillance, traffic control, and environment surveillance based on H.264.
The popularity of IP based network DVR has been increasing as much as high interest in IP network based high performance video equipment. It is applicable to video surveillance, traffic control, environment surveillance, and port surveillance by combining with various WAN environments such as xDSL fast internet, leased line, metro Ethernet. AP-NC1500 can be interworked with DVR solution so that you may build an efficient NDVR communication environment in accordance with the range of application or the range of field.
Firmware Upgradeable DSP based HW codec
AP-NC1500 video codec module supports audio/video encoding concurrently based on the latest codec H.264. DSP based H/W architecture of AP-NC1500 is a programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification isrequired, just directly download from the homepage or setting an auto upgrade option.You may use the latest features without much effort.
Support Various A/V module for Multi-Service
AP-NC1500 multi-service video codec is designed to support various multi-service features such as D1 video encoder module, HD video encoder module (HD-SDI), built-in amplifier audio broadcasting module, subtitle module, and PAN/TILT control module. Especially, video encoder function, audio broadcasting function, supplementaryfunction is designed on the basis of module type so that it is deal with various user environments.
Enhanced Remote Management Capabilities
AP-NC1500 video modules operate independently for securing the stability of device via telnet or FTP. The remote control capability makes possible for device status inspection, function setup, and software upgrade. An additional GUI based management system is provided for numerous AP-NC1500 operating environment in several places. It examines the AP-N1500 operating condition as well as sending audio to the desire place.
Various Application Field
AddPac¡¯s high performance DSP based H.264, MPEG-4 video codec eliminates the range of applications limit for AP-NC1500 such as high quality video surveillance, traffic control, environment surveillance, and disaster prevention.
D1, HD quality surveillance: AP-NC1500 supports four(4) module slots. It supports built-in amplifier voice broadcasting module, D1 video encoder module or HD video encoder module concurrently. Audio/Video contentsare delivered to the AddPac network DVR in real-time. An operator can perform real time surveillance through monitors. This system is applicable to unattended security, traffic control, environment surveillance, and disaster prevention to enable the operator for immediate response when the event occurs.

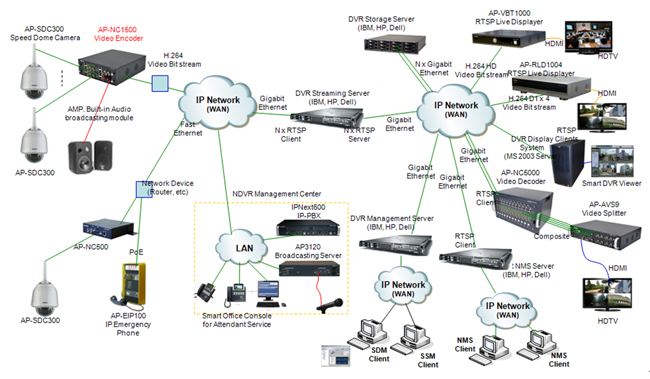

Network Diagram
Overall Features
IP based real time video surveillance
architecture
Support four(4) multi-service module slots
Various video codec module (D1, HD module)
D1 (NTSC, PAL), HD (HD-SDI) video subtitle
generator module
IP voice broadcasting module (Built-in AMP.)
Programmable high performance DSP based
hardware video codec
Programmable high performance DSP based
voice broadcasting hardware module
High performance RISC CPU and RTOS based
embedded system
High Performance QoS function support for
multi-site audio/video transmission
Integrate structure to support network
surveillance and audio broadcasting
Video Features
Codec: H.264 HP/MP/BP. etc
Process 30 frames of D1 video per second
(D1, CIF Dual Bit Stream)
Process 30 frames of HD video per second
(720P, D1 Dual Bit Stream)
Audio Features
Codec: G.711, G.726
Interface: Stereo audio input port, Stereo
audio output port
Network Services
IGMP supporting for Multicast Audio Broadcasting Service
Multilevel QoS Support including AddPac Specialized QoS
Algorithm
High-performance IP-Routing Capability with Reliability
Static Routing and IEEE 802.1Q VLAN Routing Protocols
including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management
Features
Standard & Extended Access List for Security Functions
Essential Scalability Features such as DHCP Server &
Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and
Debugging/Diagnostics, etc.
DNSProxy, MAC Address Filter Service
Two(2) Module Slots for Multiservice NDVR
Application
AV1500N Two(2) Channel D1 Video Encoder Module
AV1200N One(1) Channel D1 Video Encoder Module
AV1600N One(1) Channel HD Video Encoder Module
AA1000N AMP. Built-In Audio Broadcasting Module
AS1000N Analog Subtitle Generator Module
Power & Operation Environments
Power Requirement
Power VAC 110~220V, 50/60Hz, 24V 5A
Operating Temperature
0¡ÆC to + 50¡ÆC (32¡Æ to 122¡ÆF)
Storage Temperature
-40¡ÆC to + 85¡ÆC (-40¡Æ to 176¡ÆF)
Relative Humidity
5% to 95% (Non-condensing)
Dimensions
H x W x D(mm)
77mm x 230mm x 260mm
Weight(kg)
3.5Kg
Network Protocols
LAN Protocol
Static and IEEE 802.1Q VLAN Routing
WAN Protocol
Point-to-Point Protocol (PPPoE for ADSL), etc.
Video Service
Codec
H.264, MPEG4
Frame Rate
HD : Up to 30fps, 720P(1280 x 720) Image Resolution, H.264
D1 : Up to 30fps, NSTC(720x480), PAL Mode, H.264
Dual Bit Stream
D1: (D1, CIF)
HD : (720P HD, D1)
Operating Bandwidth
256Kbps ~ Several Mbps
Audio Service & Signaling Protocol
Voice Codec
- G.711 & G.726 for Voice Quality Audio Service
QoS
Enhanced QoS Management Features for Audio/Video Traffics
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
VRRP Service for Load Balancing & Auto Recovery
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
¡æ Spanning Tree Bridging Protocol Support
¡æ Remote Bridging Support
¡æ Concurrent Routing and Bridging Support
