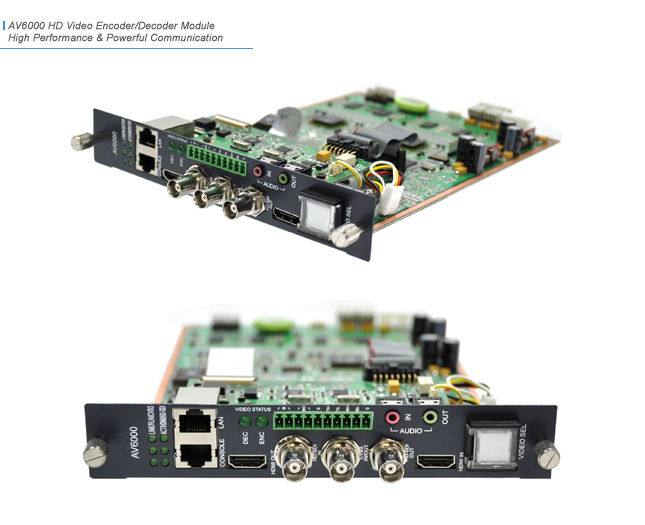

Quadruple Video Encoding Full HD (1080i) Video Codec Module AV6000
AV6000 video codec module supports Full HD level high quality network based video surveillance service. AV6000 video codec module can be installed into AddPac network DVR solution such as AP-NC2000, AP-NC3000, and AP-NC5000HD network video server H/W platform. AP-NC2000, AP-NC3000, and AP-NC5000 HD network video servers are DSP based high performance multi-channel HD video server device which can install 1, 2, 10 video module slots. H.264 based high quality HD/Full HD image is applicable to surveillance, traffic control, and etc.
AV6000 video codec module processes the 30 frames of 1080i, 720P (1280x720), D1 (720X480), CIF (325X288) images per second based on H.264 compressed codec standard in real time. A user may setup an appropriate frame rate and bit rate in accordance with quadruple video encoding function and network status.
Quadruple video encoding function is designed to support primary channel full HD (1080i), secondary channel HD (720P), and tertiary channel D1 (720X480) concurrently. Also, dual video encoding (Full HD, HD), (Full HD, D1), (HD, D1) can be chosen. Full HD video encoder module of AV6000 supports HD-SDI, HDMI, analog video input and interwork with RS232C, RS422, and RS485 interfaces for PAN/TILT/Zoom camera remote control. Also, it supports gigabit ethernet interface and is designed to fit for next generation network environment. RTSP/RTP based transmission protocol and management function with Smart Web Manager can be main advantage of AV6000 video encoder module.
For real time surveillance image, AddPac AP-NSPP (Network Surveillance Provision Platform) high performance network surveillance service solution is suitable and it opens a whole new world of high quality video image based on our performance and stability.
