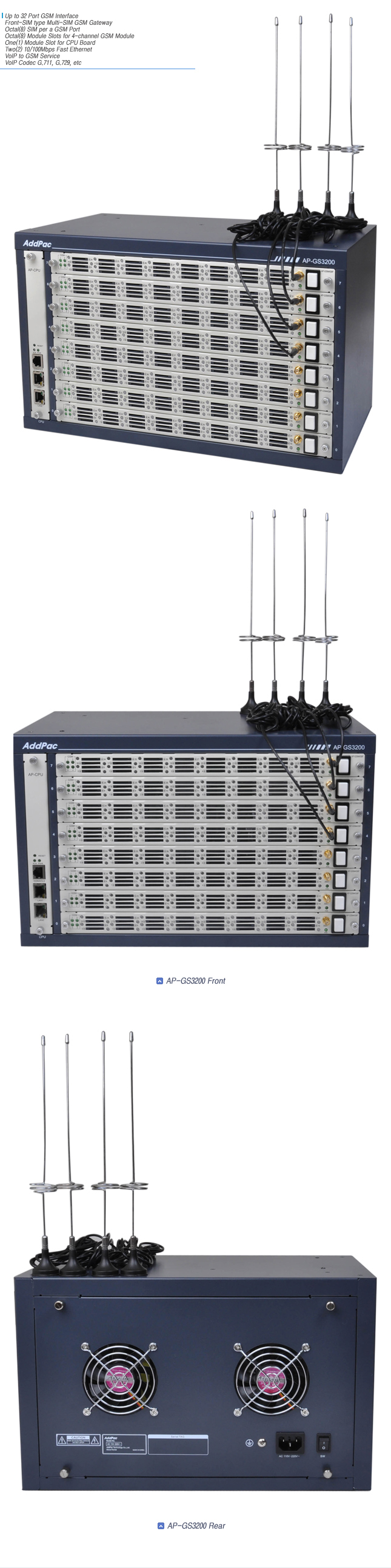

VoiceFinder AP-GS3200 is a new cutting edge VoIP to GSM gateway supporting maximum 32 ports of GSM Voice interface. GSM Interface of AP-GS3200 provides an optimized call scenario when it interoperates with softswitch or IP-PBX. Front-SIM type Multi-SIM HW design and system architecture of AP-GS3200 provides customer satisfaction in high quality, performance and system reliance. This product uses the state-of-art technology voice compressed algorithm and unique QoS algorithm of AddPac to maintain the maximum voice quality under fast internet line and slow internet line as well.
GSM VoIP Gateway Service Support
AddPac AP-GS3200 supports inbound and outbound GSM VoIP gateway service (Internet?GSM or GSM->Internet). It also supports SIP, H.323 Multiple VoIP signaling protocol, various voice codec support(G.711, G.726, G.729, G723.1), octal(8) module slots for GSM VoIP module, one(1) module slot for CPU board, two(2) fast ethernet ports, 1-port RS232C console, and state-of-art technologies and services.
Front-SIM type Multi-SIM GSM Module Support
AP-N1-GSM4S8F GSM VoIP Module for AP-GS3200 is a front-sim type new 4-Port GSM Module (8 SIM card slots per a GSM Port) for GSM Call Termination Service. This GSM VoIP Module supports Quad-Band (850/900/1800/1900MHz) GSM frequency, octal(8) SIM card slots per a GSM port, hot-swap switch button, one(1) GSM antenna Interface. This GSM module has thirty-two(32) GSM SIM card slots internally. Also this module supports the Voice DSP for GSM call termination service based on VoIP Technology.
Supports maximum 32 ports of GSM interface

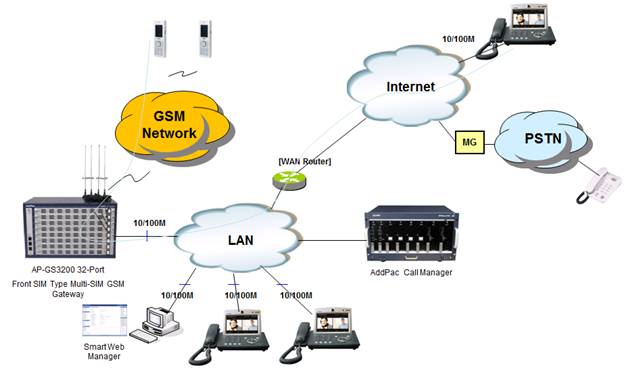

GSM VoIP gateway combining Softswitch(or IP-PBX) is now suggesting a new model for a main voice communication solution. In order to be a part of advanced VoIP communications naturally in the future, making an excellent choice of choosing GSM gateway is essential. VoiceFinder AP-GS3200 is a mid-range GSM gateway providing total 32 GSM interface ports. It is suitable for GSM based call termination service provider.
Powerful networking protocols
VoiceFinder AP-GS3200 GSM VoIP Gateway supports two(2) 10/100Base-T Fast Ethernet Interface ports and provides stabilized leased line environment, ADSL environment, cable modem environment, fixed IP Address, supports all flow IP environment so that it can be selected in accordance with user environments.
Adapt to the Future Environment : Firmware Upgradeable Technology
Designed on programmable high performance RISC Integrated DSP Technology, AP-GS3200 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-SNMS (Smart Network Management System) system of AddPac Technologies.
AddPac IP Telephony Total Solution
AddPac technology is not just a vendor of GSM Gateway Box for the customer satisfaction, but it provides various products for appropriate network environment for VoIP, Media Gateway, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.
AddPac¡¯s various GSM, VoIP Gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-GS3200, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation GSM VoIP Gateway.
System Performance Analysis for Process, CPU,
Connection I/F
Configuration Backup & Restore for APOS
Managements
Debugging, System Auditing, and Diagnostics
Support
System Booting and Auto-rebooting with Watchdog
Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
