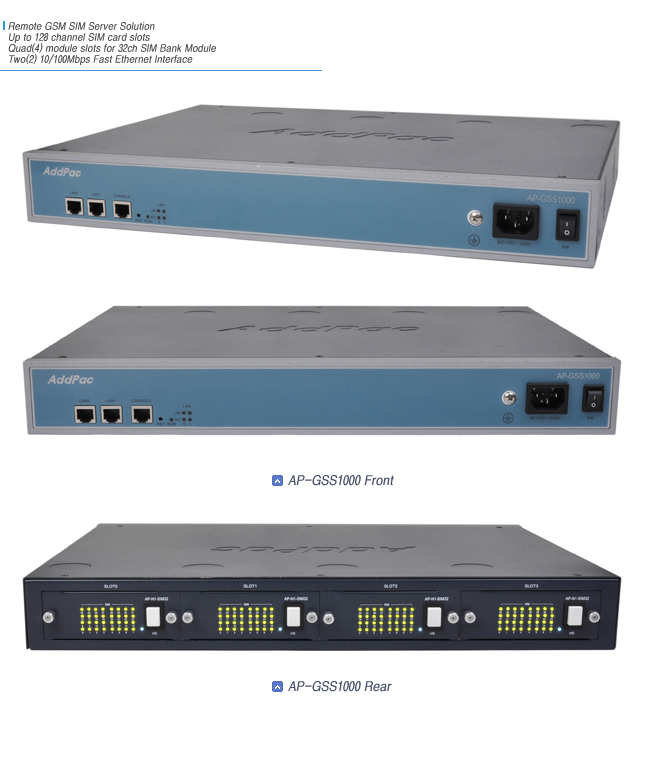

AddPac AP-GSS1000 is a new cutting edge SIM server supporting maximum 128 channel SIM slots. AP-GSS1000 provides an optimized remote SIM bank solution when it interoperates with AddPac GSM gateways such as AP-GS916, AP-GS3000. Compact cost effective design and system architecture of AP-GSS1000 provides customer satisfaction in high quality, performance and system reliance.
Remote SIM bank solution for Centralized Management
AddPac AP-GSS1000 is a device that can support remote SIM bank application for centralized management. AP-GSS1000 support various AddPac multi-port GSM gateways such as AP-GS916, etc. It also supports quad(4) module slots for GSM SIM bank, two(2) fast ethernet ports, 1-port RS232C console, and state-of-art technologies and services.
Supports maximum 128-channel SIM slots

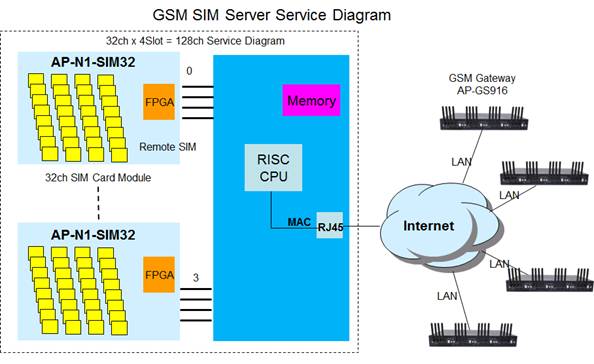

AddPac AP-GSS1000 GSM SIM server combining GSM gateways is now suggesting a new model for mobile voice communication solution. In order to be a part of advanced mobile voice communications naturally in the future, making an excellent choice of choosing GSM Remote SIM server with GSM gateway is essential. AddPac AP-GSS1000 is a mid-range GSM Remote SIM server providing total 128 SIM interfaces slots (Quad(4) module x 32 = 128 channel). A SIM bank module supports 32 channel SIM slots. It is suitable for small and medium call termination service provider.
GSM Remote SIM Server and SIM Client Solution
AddPac GSM SIM Server solution provides various GSM based Remote SIM Servers like as AP-GSS5000, AP-GSS3000, AP-GSS2000, and AP-GSS1000. This Remote GSM SIM Servers can be installed or operated with AddPac GSM SIM Clients like as AddPac GSM Gateway AP-GS3000, AP-GS916, etc. AddPac GSM SIM server combining GSM gateways is now suggesting a new model for a main GSM based mobile VoIP communication solution. In order to be a part of advanced mobile VoIP communications naturally in the future, making an excellent choice of choosing SIM server with GSM gateway is essential.
Powerful networking protocols
VoiceFinder AP-GSS1000 GSM Remote SIM Server supports two(2) fast ethernet Interface ports and provides stabilized leased line environment, ADSL environment, cable modem environment, fixed IP Address, supports all flow IP environment so that it can be selected in accordance with user environments.

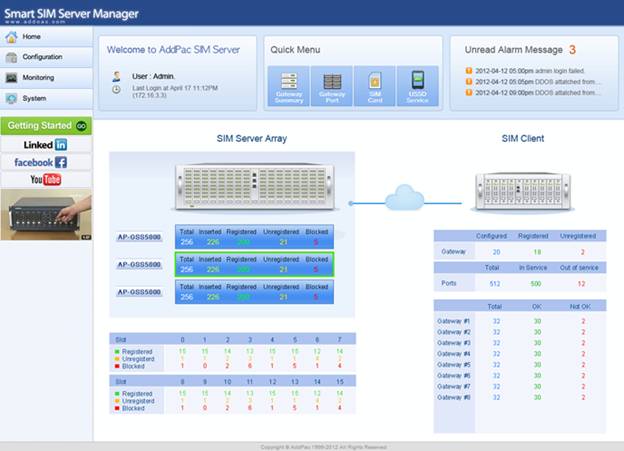

Smart Web Manager for GSM SIM Server
Smart Web Manager for GSM Remote SIM Server is new management software used for GSM Remote SIM Server devices in the next-generation GSM Remote SIM server and client solutions of AddPac Technology. Smart Web Manager for GSM Remote SIM Server is pure web based management software supporting the user management, device management, various Remote SIM application, , event and trace monitoring, and powerful debugging of GSM SIM Server in various Web Brower environment such as Internet explorer, Smart Phone Web Browser, Tab Web browser.
Smart Web Manager supports almost all web browsers based on HTML, Javascript. It can be operated following operating systems and web browsers such as Windows XP, Vista, Windows 7, Windows Server 2000/2003, Linux/Unix Platform, Microsoft Internet Explorer 7.0/8.0/9.0, Google Chrome/Mozilla Firefox/Safari /Opera, JavaScript + HTML supported browser ( Android, iPhone, iPad,... )
Smart Web Manager for GSM SIM Server
Adapt to the Future Environment : Firmware Upgradeable Technology
Designed on programmable high performance RISC CPU Technology, AP-GSS1000 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-NMS (Network Management System).
AddPac GSM Total Solution
AddPac technology is not just a vendor of GSM Remote SIM server Box for the customer satisfaction, but it provides various products for appropriate network environment for GSM, CDMA, 3G, VoIP, Media Gateway, IP-PBX, Video Conference audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.
AddPac¡¯s various GSM, VoIP Gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-GSS1000, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation GSM VoIP gateway and GSM Remote SIM server Solution.

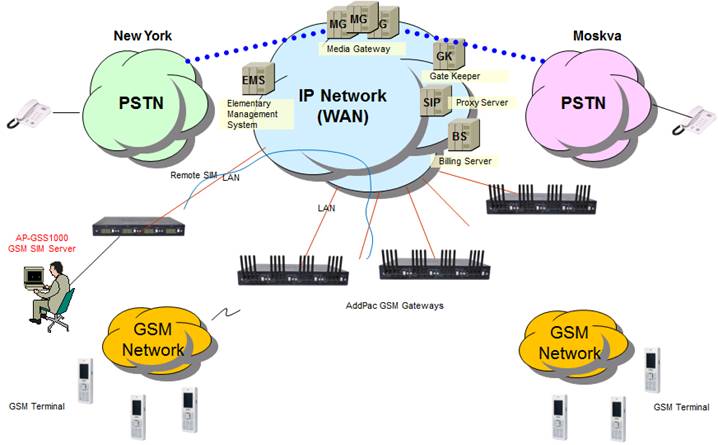

Network Diagram
Overall Features
High-performance GSM SIM Bank Modular Architecture
¡¡
Quad(4) SIM Bank
Module Slots
1
AP-N1-SIM32
32-channel GSM SIM Slot Interface Module
Supports maximum 128-channel GSM SIM slot interface
Flash Memory: 512Mbyte, Main Memory : 128Mbyte DDR2
GSM SIM bank module AP-N1-SIM32 : 32-channel GSM SIM bank Module
Two(2)-port 10/100/Mbps fast ethernet interface
Small and Mid-range Centralized Remote SIM solution
Smart Web based Management Software
High-performance IP-Routing Capability with Reliability
Static and IEEE 802.1Q VLAN Routing Protocols including VRRP
Traffic Queuing, and SNMP MIB v2 for Network Management Features
Standard & Extended Access List for Security
Functions
Essential Scalability Features such as DHCP
Server & Relay, NAT/PAT, IEEE Transparent Bridging,
IP Accounting, and Debugging/Diagnostics, etc.
- DNSProxy Support
- UPnP Support
- MAC Address Filter Service
Microprocessor
High-End RISC Microprocessor
Memory
Flash Memory
512Mbyte NAND Flash Memory
SDRAM Memory
128Mbyte High Speed DDR2
Network Interface
LAN Port
Two(2) 10/100Mbps Fast Ethernet Interface
(2xRJ45)
Console Port
One(1) RS232C Port for Command Line
Interface(1xRJ45)
SIM Bank Module
AP-N1-SIM32 : GSM SIM Bank Module
32 Channel SIM Card Interface
SIM Module Slots
Quad(4) Module Slots
AP-N1-SIM32 Module
Power Requirement
Power Supply / 110~220VAC, 50/60Hz, 5V 8A Power
Supply
Power ON/OFF Switch
Operating Temperature
0¡ÆC to + 50¡ÆC (32¡Æ to 122¡ÆF)
Storage Temperature
-40¡ÆC ~ +85¡ÆC (-40¡Æ ~ +185¡ÆF)
Relative Humidity
5% to 95% (Non-condensing)
Dimensions(H x W x D)
H x W x D (55mm x 440mm x 313mm) - 19" Rack
Mountable Chassis
Weight(Kg)
4.7Kg
IP Routing Protocols
Static and IEEE 802.1Q VLAN Routing
WAN Protocols
Point-to-Point over Ethernet Protocol for ADSL
Networking (PPPoE)
System Performance Analysis for Process, CPU,
Connection I/F
Configuration Backup & Restore for APOS
Managements
Debugging, System Auditing, and Diagnostics
Support
System Booting and Auto-rebooting with Watchdog
Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
