VoiceFinder AP-3G501B one(1) channel 3G FXS Gateway provides high-performance Analog(FXS) or IP to 3G gateway solution for small enterprise such as SOHO. This product uses the state-of-art technology voice compressed algorithm and unique QoS algorithm of AddPac to maintain the maximum voice quality under fast internet line and slow internet line as well. This product is designed based on high performance RISC CPU + DSP structure; supports upgraded speed, the best quality product, offers various user-friendly functions, manufactured at low cost and this product gives high performance for its price.
3G and VoIP Gateway Service Both Support
AddPac AP-3G501B is a device that can support both 3G gateway service (FXS?3G or Internet?3G) and VoIP gateway service (FXS?Internet) simultaneously. It also supports SIP, H.323 Multiple VoIP signaling protocol, various voice codec support(G.711, G.726, G.729A), one(1) channel 3G interface (antenna, 3G USIM Card), one(1) fast ethernet port, one(1) FXS interface port, and state-of-art technologies and services.
Powerful networking protocols
VoiceFinder AP-3GS501B 3G FXS Gateway supports one(1) 10/100 Base-T fast ethernet Interface ports and provides stabilized leased line environment, ADSL environment, cable modem environment, fixed IP Address, supports all flow IP environment so that it can be selected in accordance with user environments. It also provides internet application function, and offers both VoIP gateway function and 3G gateway function in one platform. So it supports the 3G Gateway solution for SOHO in economical and effective way under fast internet access environment.
Adapt to the Future Environment : Firmware Upgradeable Technology
Designed on programmable high performance RISC Integrated DSP Technology, AP-3G501B is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-SNMS (Smart Network Management System) system of AddPac Technologies.
AddPac IP Telephony Total Solution
AddPac technology is not just a vendor of 3G Gateway Box for the customer satisfaction, but it provides various products for appropriate network environment for VoIP, Media Gateway, audio/video terminals, audio/video MCU, IP audio/video broadcast, IP Telephony solutions, network VMS solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.
AddPac¡¯s various 3G & VoIP Gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-3G501B, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation 3G-Gateway.

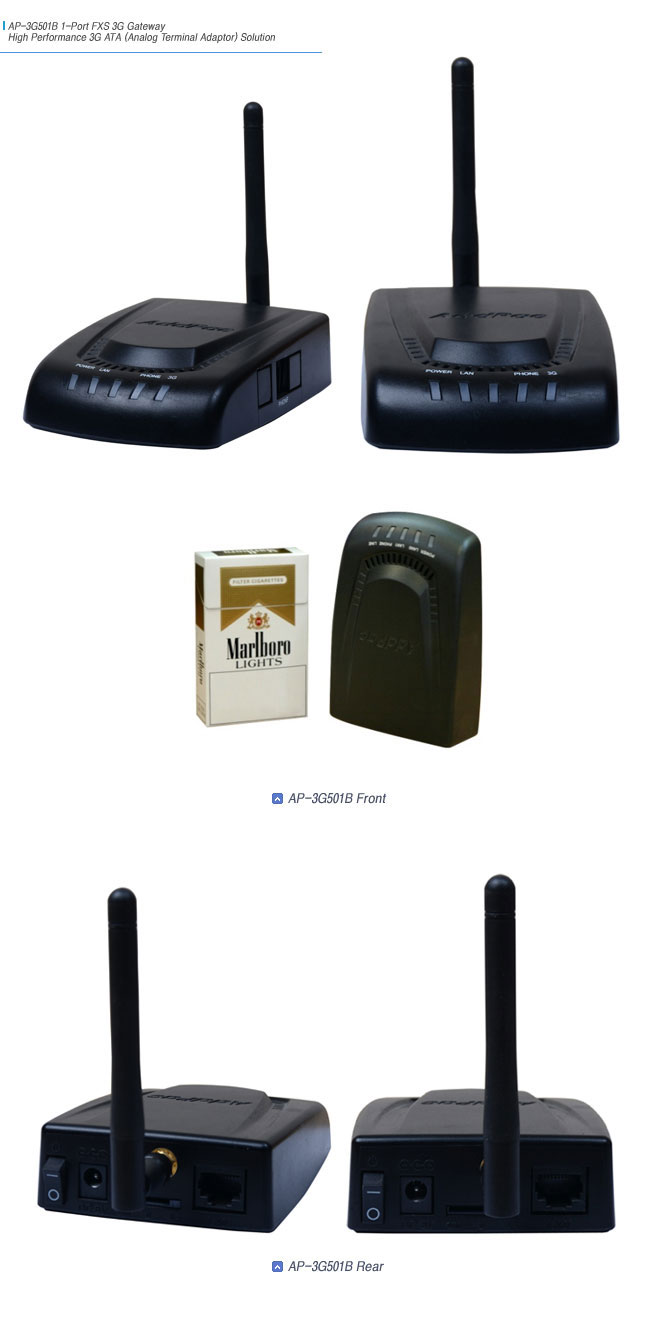

AP-3G501B
1-Port FXS Voice Interface
1-Port 3G Module
1-Port Antenna Interface for 3G Service
1-Port USIM Card Interface for 3G Service
1-Port 10/100Mbps Ethernet Interface
Power ON/OFF Switch

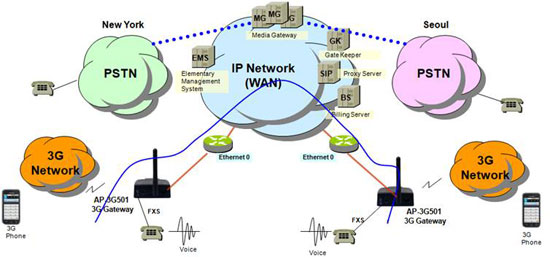

Network Diagram
Major Features
Powerful RISC Microprocessor + DSP
Architectures
One(1) 10/100Mbps Fast Ethernet Interfaces
for WAN
One(1) 3G Module (Antenna, USIM Card)
Interface
One(1) FXS Voice Interfaces
Standard High-performance VoIP Gateway for
Voice Networking Applications
Multi-protocol Routing Solutions between WAN
and LAN Access with H.323 based VoIP Protocol
ITU-T H.323 v3 VoIP Protocol with ITU-T
H.235 Security Feature
SIP protocol support compliant with IETF
RFC3261 (or RFC2543)
Supports Triple stack of H.323 and SIP
APOS Internetworking Software to provide
Scalability, Functionality, Stability, and QoS Control for AddPac VoIP
Gateway
High-performance IP-Routing Capability with
Reliability
Static, Default IP-Routing and IEEE 802.1Q
VLAN Routing Protocols
Point to Point over Ethernet Protocol for
ADSL based Broadband Network
Enhanced QoS Managements for Voice Traffic
SNMP MIB v2 for Network Management Features
Essential Scalability Features uch as DHCP
Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and
Debugging/ Diagnostics, etc.
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
