AP-M2M100 LAN based M2M device provides wired based multi-purpose machine-to-machine application service such as utility meter, remote digital billboard control, telematics, wireless ATM machine, etc. This product is designed based on high performance RISC CPU + DSP structure; supports firmware upgrade, the best quality product, offers various user-friendly functions, manufactured at low cost and this product gives high performance for its price.
LAN based M2M device for various application

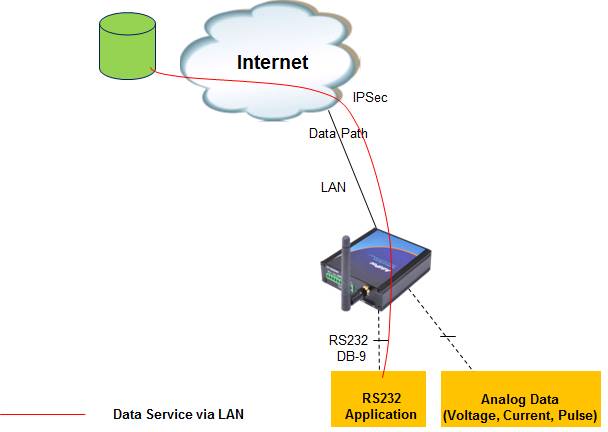

AddPac AP-M2M100 is a device that can support network access service for internet access via RS232C serial interface and remote utility metering service using Ethernet Port. It supports various network protocols for routing service and serial data modem service, one(1) fast ethernet port, one(1) RS232C serial communication channel (DB-9), analog signal input (voltage, current, pulse) for utility metering service, and alarm, relay out interface.
Powerful networking protocols
AddPac AP-M2M100 LAN based M2M device supports one(1)-channel 10/100 Base-T fast ethernet Interface port and supports all flow IP environment so that it can be selected in accordance with user environments. It also provides routing function and internet application function using APOS (AddPac Operating System) network protocols. So it supports M2M application service in economical and effective way under wireless access and fast internet access environment.
Adapt to the Future Environment: Firmware Upgradeable Technology
Designed on programmable high performance RISC Integrated DSP Technology, AP-M2M100 is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-NMS (Network Management System) of AddPac Technologies.
AddPac M2M Service Total Solution
AddPac technology is not just a vendor of wireless/wired M2M device for the customer satisfaction, but it provides various products for appropriate network environment for Leased Line/ATM Router, VoIP gateway, mobile gateway/router, media gateway, IP-PBX, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions.
In the future, all IP based network environment, various wireless/wired data network resources should be shared on an IP network; thus, the integration of solutions for each and entire area are considered as top priority. AddPac M2M solution is designed to consider the integrated machine-to-machine application so that it can satisfy the various needs of customer.
AddPac’s various mobile gateway and router devices have been fully recognized in terms of its performances and stability throughout the world. AP-M2M100, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation M2M device.

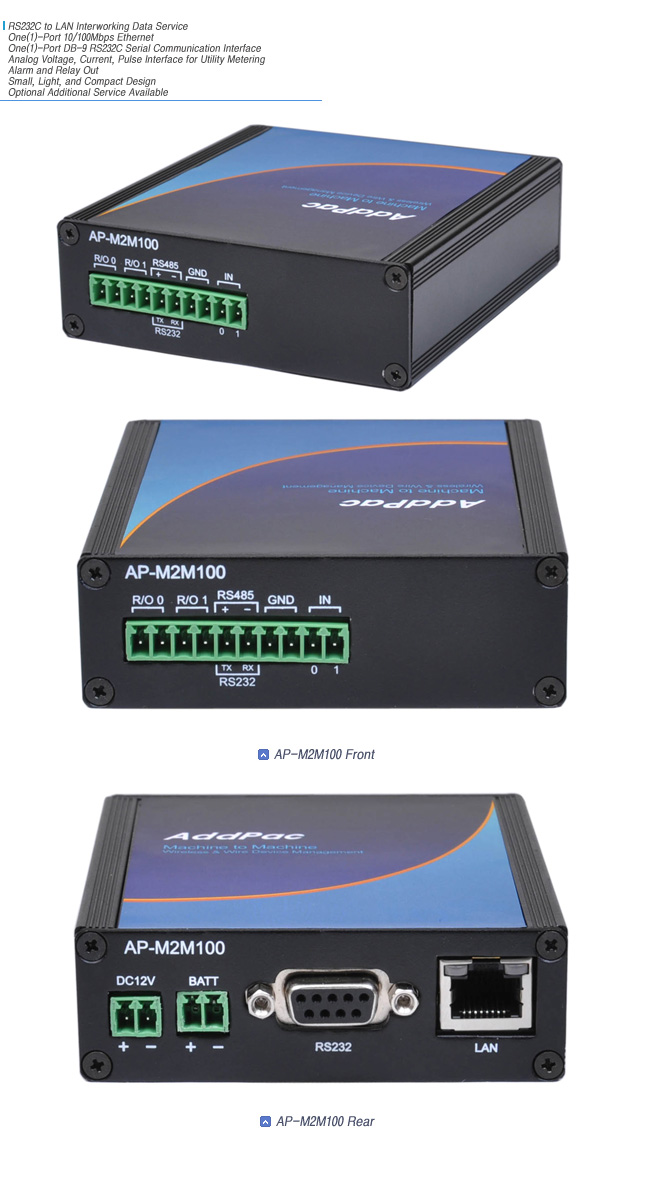

1-Port 10/100Mbps Fast Ethernet Interface
1-Port RS232C Serial Communication Interface (DB-9)
I/O Interface for utility metering service
Alarm and relay out Interface
Powerful RISC Microprocessor + DSP Architectures
One(1) 10/100Mbps Fast Ethernet Interfaces for
One(1) RS232C Serial Communication Interface
I/O Interface (analog voltage, current, pulse)
for utility metering Service
Standard high-performance Routing Service
Internet data service via RS232C Serial Port
APOS Internetworking Software to provide
Scalability, Functionality, Stability, and QoS Control for AddPac M2M device
High-performance IP-Routing Capability with
Static, Default IP-Routing and IEEE 802.1Q VLAN
Point to Point over Ethernet Protocol for ADSL
based Broadband Network
Optional PPTP, IPSec Protocol Support for
Wireless Data Network like as GSM GPRS
SNMP MIB v2 for Network Management Features
Essential Scalability Features such as DHCP
Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and
Debugging/ Diagnostics, etc.
Remote Software Upgrade using FTP & TFTP
Graceful Compact Design
High-End RISC Microprocessor
32Mbyte High-Speed SDRAM
One(1) 10/100Mbps Ethernet Interface (RJ45)
One(1) RS232C Serial Communication Interface
Analog Voltage (0 ~10V) (IN1, IN2)
Analog Current (4~20mA) (IN1, IN2)
Pulse Input or Digital Input (IN1)
Power Supply Adaptor / VAC 110~220V, 50/60Hz,
0ºC ~ 45ºC (32 ºF ~ 122ºF)
-40ºC ~ 85ºC (-40ºC ~ 185ºF)
5% to 95% (Non-condensing)
Dimensions(H x W x D)
28mm x 86mm x 95mm (H x W x D)
IP Routing Protocols
Static and IEEE 802.1Q VLAN Routing
Point-to-Point over Ethernet Protocol for ADSL Networking (PPPoE)
