AP-3GR1001D one(1)-channel Dual-USIM 3G UMTS Router provides high-performance IP-routing services for wireless ATM, POS system application service. This product is designed based on high performance RISC CPU Architecture; supports firmware upgrade, the best quality product, offers various user-friendly functions, manufactured at low cost and this product gives high performance for its price.

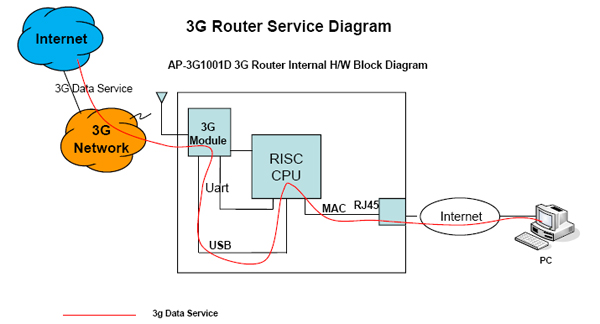

3G VPN Router Service
AddPac AP-3GR1001D is a device that can support 3G data based VPN gateway service for internet access via LAN interface. For mobile operator backup, this wireless router provides dual-USIM interface. This dual-USIM feature can enable to provide seamless internet service in wireless environment. It supports various network protocols for routing service including IPSec VPN protocol, one(1) channel 3G interface (antenna, dual USIM card), two(2) fast ethernet port, one(1) RS232C console interface for CLI(command line interface), public IP sharing function and state-of-art technologies and services.
Adapt to the Future Environment: Firmware Upgradeable Technology
Designed on programmable high performance RISC Technology, AP-3GR1001D is capable of adopting new capabilities and improvement by downloading firmware from website or with its auto-upgrade option as the customers' needs grow. Moreover, operators can download the latest protocol or service improvements as well as update firmware by checking the version and activating the auto-upgrade via AP-NMS (Network Management System) of AddPac Technologies.
AddPac IP Telephony Total Solution
AddPac technology is not just a vendor of 3G Router Box for the customer satisfaction, but it provides various products for appropriate network environment for Leased Line/ATM Router, VoIP, Media Gateway, IP-PBX, audio/video terminals, audio/video MCU, IP audio/video broadcast, VoD solutions, network DVR solution, audio/video recording solutions, and traffic controller QoS device solutions. In the future, All IP based multimedia telephony environment, various audio/video resources should be shared on an IP Network; thus, the integration of solutions for each area and entire solutions are considered as top priority. AddPac IP telephony solution is designed to consider the integrated multimedia solution so that it can satisfy the various needs of customer.
AddPac¡¯s various VoIP gateway series and multimedia network devices have been fully recognized in terms of its performances and stability throughout the world. AP-3GR1001D, with our accumulated experiences and know-how in the enterprise and service provider markets, will provide full satisfactions for customers who ask for a next-generation 3G Routers.

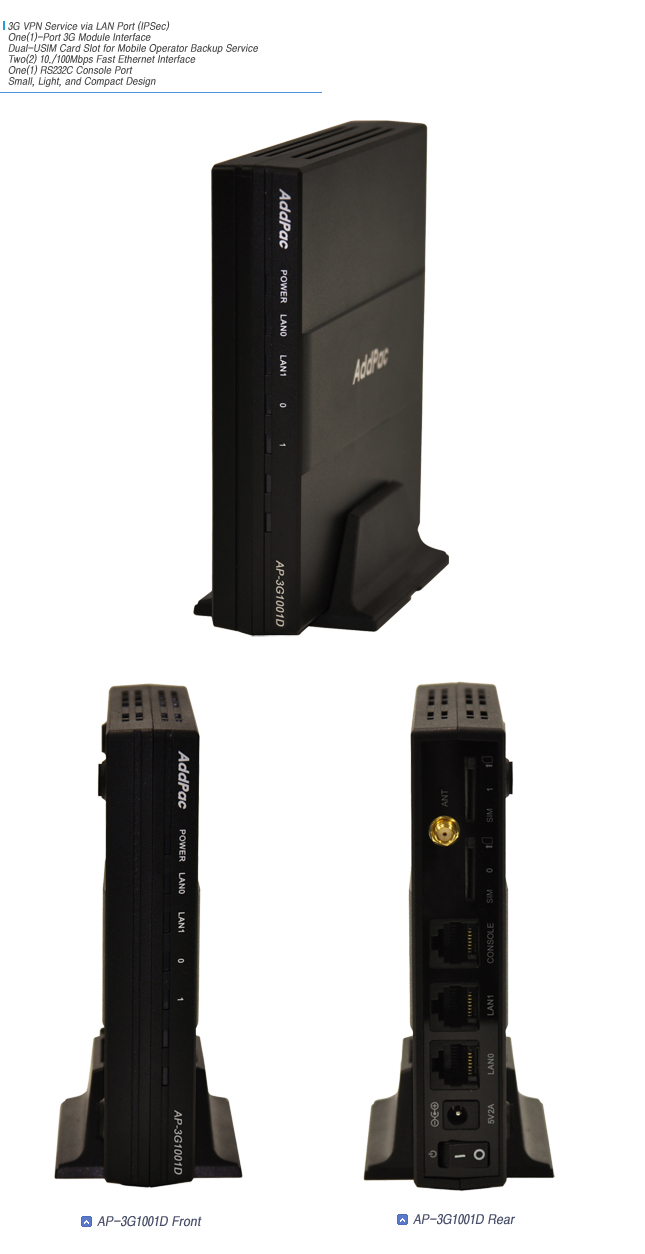

AP-3GR1001D
1-Port 3G Module
1-Port Antenna Interface for 3G Service
Dual-USIM Card Interface for 3G Service
2-Port 10/100Mbps Ethernet Interface
1-Port RS232C Serial Communication Interface (DB-9)
Power ON/OFF Switch
Major Features
High Performance RISC Microprocessor
Architectures
One(1) 3G Module (Antenna, USIM Card)
Interface
Dual-USIM Card Support for Mobile Operator
Backup
Two(2) 10/100Mbps Fast Ethernet Interfaces
for LAN
One(1) RS232C Console Interface
Standard High-performance 3G VPN Router
Service (IPSec, AES)
3G Data Service via LAN Port
APOS Internetworking Software to provide
Scalability, Functionality, Stability, and QoS Control for AddPac 3G
Router
High-performance IP-Routing Capability with
Reliability
Static, Default IP-Routing and IEEE 802.1Q
VLAN Routing Protocols
SNMP MIB v2 for Network Management Features
Essential Scalability Features such as DHCP
Server & Relay, NAT/PAT, IEEE Transparent Bridging, IP Accounting, and
Debugging/ Diagnostics, etc.
System Performance Analysis for Process, CPU, Connection I/F
Configuration Backup & Restore for APOS Managements
Debugging, System Auditing, and Diagnostics Support
System Booting and Auto-rebooting with Watchdog Feature
System Managements with Data Logging
IP Traffic Statistics with Accounting
Other Scalability Features
DHCP Server & Relay Functions
Network Address Translation (NAT) Function
Port Address Translation (PAT) Function
Transparent Bridging (IEEE Standard) Function
- Spanning Tree Bridging Protocol Support
- Remote Bridging Support
- Concurrent Routing and Bridging Support
