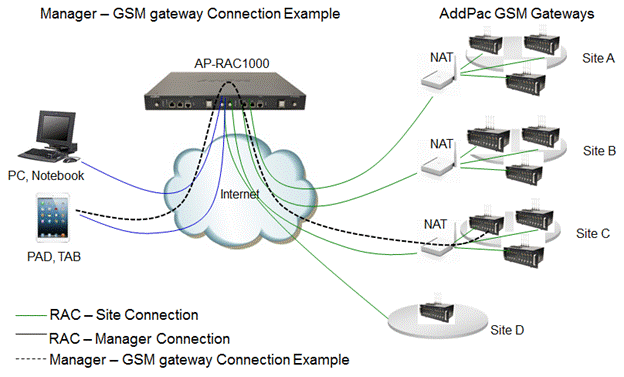

AP-RAC1000 is embeddedsystem based Remote Access Controller for multiple AddPacGSM gateway management. It is tunneling protocol based which is located between a user terminals andAddPac GSM Gateways to access private IP GSM gateways remotely. It supports various application protocols like as HTTP, Telnet. AP-RAC1000 is designed on the basis of automatic gateway registration for Large Scale GSM gateway deployment.In addition,beside multiple GSM gateway management, it is applicable to various remote access environments; its terminals are located in private IP address

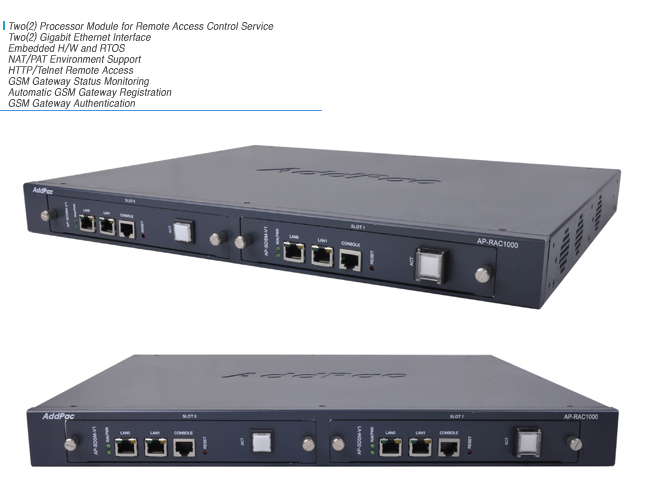

High Performance Remote Access Controller
AP-RAC1000Remote Access Controller performs routing capability based on Tunneling Protocolto accessprivate IP address located Multiple GSM gateway deployment environment. It is located in public IP address environment. AP-RAC1000 supports embedded HTTP server, Telnet Server, FTP server and SNMP agent. Also, for easy registration and management, AP-RAC1000 supports automatic GSM gateway registration, GSM gateway authentication.
Advanced Remote Access S/W Features
AP-RAC1000 supports GSM gateway HTTP/Telnet access via two-stage procedures. Also this AP-RAC1000 provides status monitoring features about GSM gateway like as summary information, basic GSM gateway status information. Static/DHCP/PPP address mode can be supported for AP-RAC1000 remote access controller. This system supports NAT/PAT address environment for GSM gateways, for example, private IP address behind of NAT router and NAT port rewriting (Source Port Rewriting)
AP-RAC1000 remote access controller uses embedded real time OS to provide stability and reliability. All application software’s are programmable structure so that it is capable of improving, modifying, and adding new features constantly. When an additional feature or modification is required, just directly download from the homepage or setting an auto upgrade option. You may use the latest features without much effort.
Enhanced Remote Management Capabilities
AP-RAC1000 Remote Access Controller makes possible to access GSM gatewaysremotely via HTTP or Telnet for device status inspection, function setup, and software upgrade.
A special GUI based remote access management system is provided for numerous GSM gateways operating environment in several places.
Specialize Architecture for Private IP GSM
Gateway Remote Access
Embedded OS (Operating System) and Hardware
Two(2) port 10/100/1000Mbps Gigabit Ethernet
Support NAT/PAT Environment
- Private IP address behind of NAT Router
- NAT Port Rewriting (Source Port Rewrite)
Support Dynamic IP Address
- Static/DHCP/PPP Environment
GSM Gateway HTTP Access, Telnet Access
GSM Gateway Status Monitoring
- Display Summary Information
- Display Basic GSM Gateway Status
